GN 350.5 Levelling sets
Eta: 1-2 weeks All sizes and variants of GN 350.5
🔒 Prices, live stock & CAD downloads
Sign in to see your prices and stock, download CAD files and order directly online.
Sign in Request an account
Technical datasheet
Technical data
- Catalogue
- GN 350.5-45-11-41-ST
- d p6/h6
- 45
- d1
- 45
- d2
- 11
- h1
- 41
- d3
- M 30 x 1.5
- h2
- 48
- h3
- 7
- For screw
- M 10
- r
- M 10
- Static load F
in kN F1 - 120
- Static load F
in kN F2 - 92.9
- Code no. for
C-Spanner - DIN 1810-A45-50
- 360
Version in Steel
Steel, 1.7225 (42 CrMo 4V) ST
zinc plated, blue passivated
Version in Stainless Steel
Stainless Steel AISI 303
(X 10 CrNiS 18-9) NI
F1: max. total load
F2: max. load after deduction of the max. preload
- for screws 8.8 µ = 0.125 (Steel version)
- for screws 6.8 µ = 0.14 (Stainless Steel version)

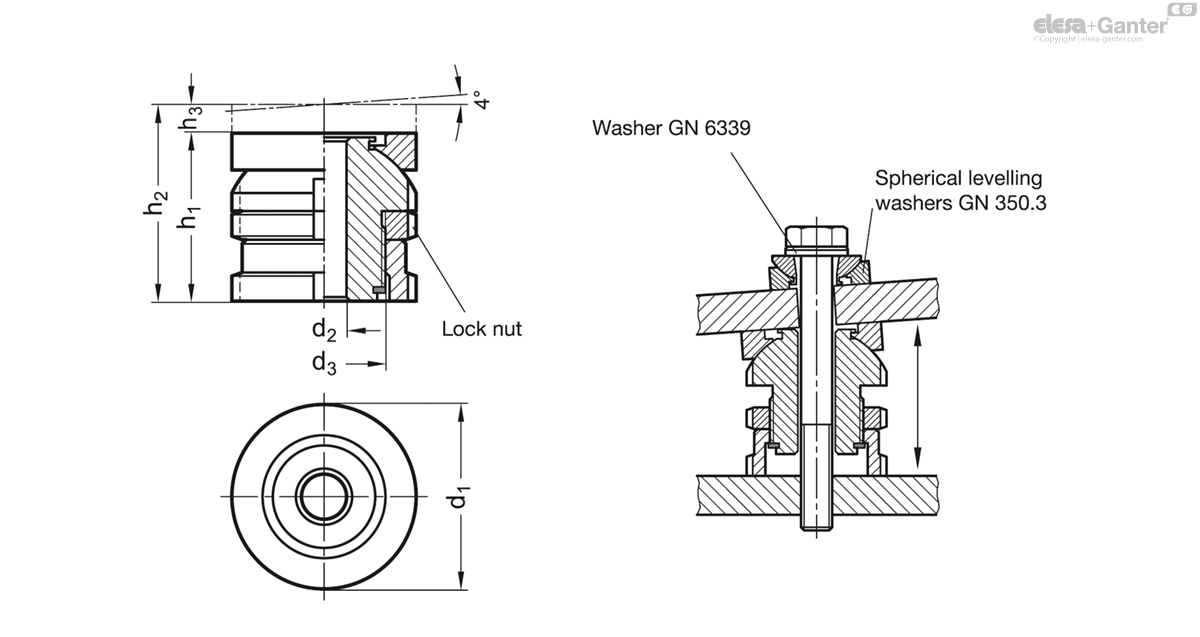

Levelling sets GN 350.5 are used for levelling, adjusting and linking operations. The spherical washer allows precise installation of two non parallel planes at a required gradient up to ≈ 4°.
They comprise a threaded upper sleeve and a female threaded lower sleeve. The fine thread allows a stepless and precise setting and locking using the C-Spanner DIN 1810 . A locking ring serves also as a height limiter for the max. height.
- C-Spanner DIN 1810 (code no. see table)
