350.1-80-39-AK-ST

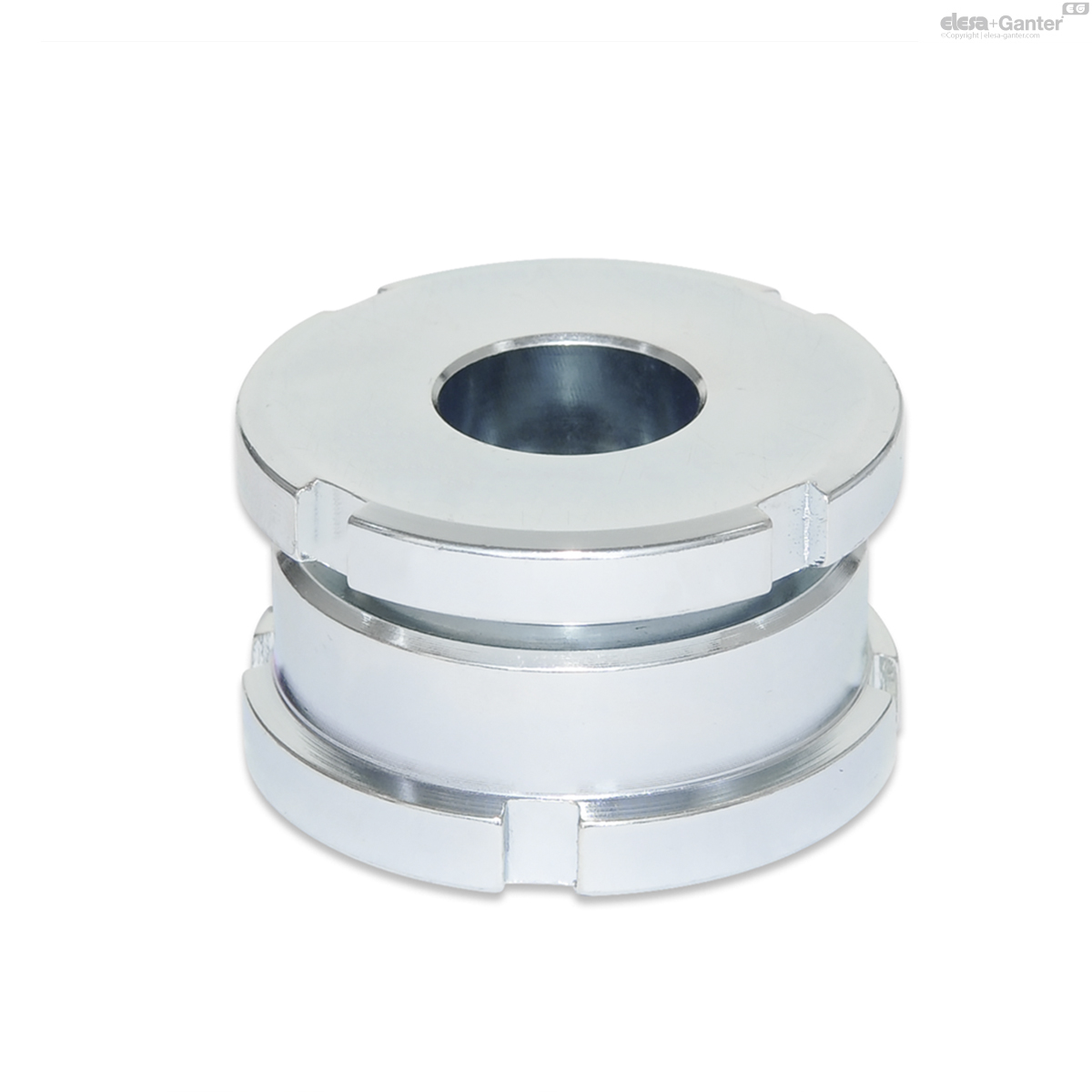

GN 350.1 Levelling sets
Steel / Stainless Steel, short version
Eta: 1-2 weeks All sizes and variants of GN 350.1
🔒 Prices, live stock & CAD downloads
Sign in to see your prices and stock, download CAD files and order directly online.
Sign in Request an account
Technical datasheet
Technical data
- Catalogue
- GN 350.1-80-39-AK-ST
- d1
- 80
- d2
- 39
- d3
- M 60 x 2
- h1
- 49
- h2
- 61
- h3
- 12
- For screw
- M 36
- r
- M 36
- Static load F
in kN - 495
- Static load F
in kN F1 - 101
- Code no. for
C-Spanner - DIN 1810-A80-90
- Static load F
in kN F2 - DIN 1810-A80-90
- 1315
Types
- Type A: without lock nut
- Type AK: with lock nut
Version in Steel
Steel, 1.7225 (42 CrMo 4V) ST
zinc plated, blue passivated
Version in Stainless Steel
Stainless Steel AISI 303 NI
(X 10 CrNiS 18-9)
F1: max. total load
F2: max. load after deduction of the max. preload
- for screws 8.8 µ = 0.125 (Steel version)
- for screws 6.8 µ = 0.14 (Stainless Steel version)
Levelling sets GN 350.1 are used for levelling, adjusting and linking operations if small dimensions are given.
They comprise a threaded upper sleeve and a female threaded lower sleeve. The fine thread allows a stepless and precise setting and locking using the C-Spanner DIN 1810 . A locking ring serves also as a height limiter for the max. height.
- C-Spanner DIN 1810 (code no. see table)
