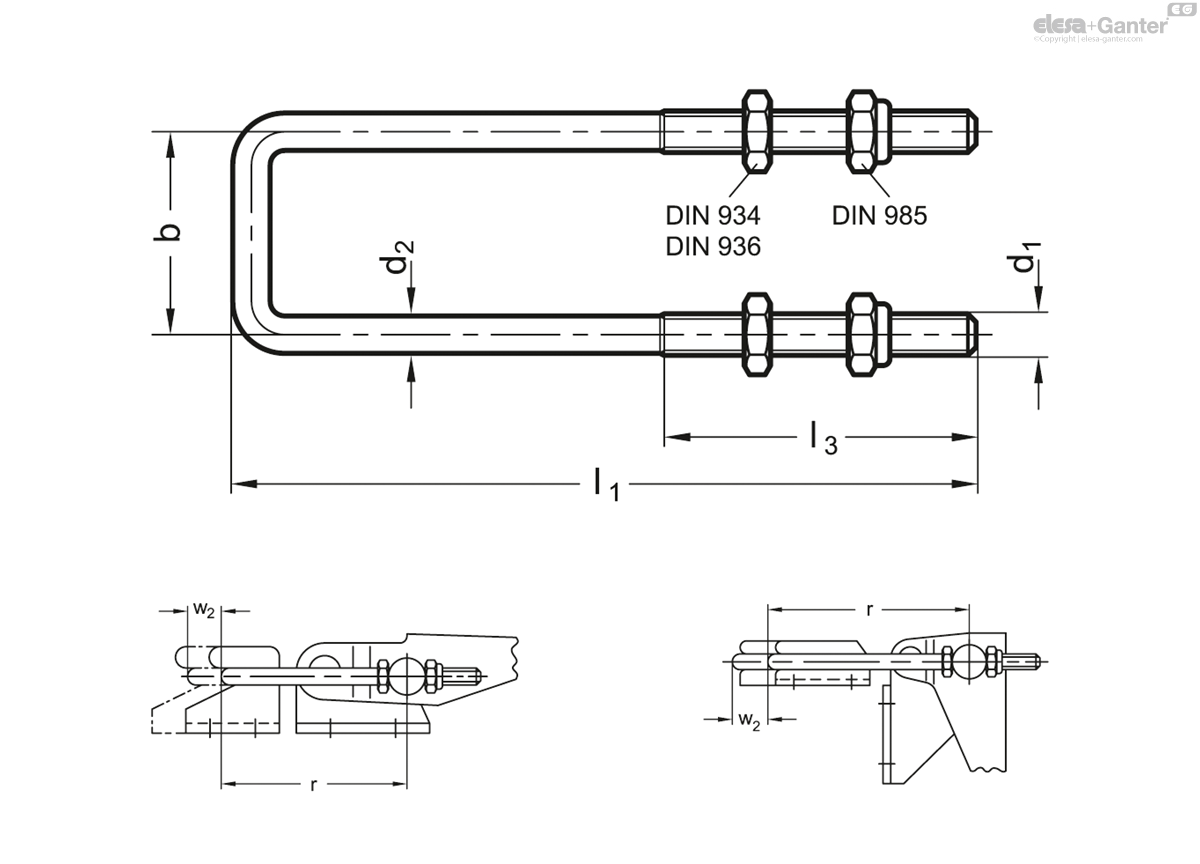

951.1-M6-32-110-ST
GN 951.1 Steel
Steel / Stainless Steel, for GN 851 / GN 851.1 / GN 851.2 / GN 851.3 latch type toggle clamps
In stock All sizes and variants of GN 951.1
🔒 Prices, live stock & CAD downloads
Sign in to see your prices and stock, download CAD files and order directly online.
Sign in Request an account
Technical datasheet
Technical data
- Catalogue
- GN 951.1-M6-32-110-ST
- GN 852 r at w2 =0
- 75
- GN 851 w2
- 24
- Size GN 851.1 / GN 851.2
- 320
- d1
- M 6
- b
- 32
- l1
- 110***
- d2
- 5.2
- l3
- 44
- Size GN 851 / GN 851.3
- 320
- GN 851 r at w2 =0
- 75
- w2
- 24
- GN 851.3 r at w2 =0
- 75
- GN 851.3 w2
- 24
- GN 851.1 / GN 851.2 r at w2 =0
- 78
- GN 852.1 r at w2=0
- 78
- GN 851.1 / GN 851.2 w2
- 21
- 45
** These U-bolt latch lengths are included in the delivery of standard orders for GN 851 / GN 851.3.*** These U-bolt latch lengths are included in the delivery of standard orders for GN 851.1 / GN 851.2.
Version in Steel ST
zinc plated, blue passivated
Version in Stainless Steel AISI 304 NI
Hexagon nuts (with polyamide insert)
M4: DIN 934 / DIN 985
M6 / M8: DIN 936 / DIN 985
Steel, zinc plated, resp. Stainless Steel
- Stainless Steel AISI 316 A4
