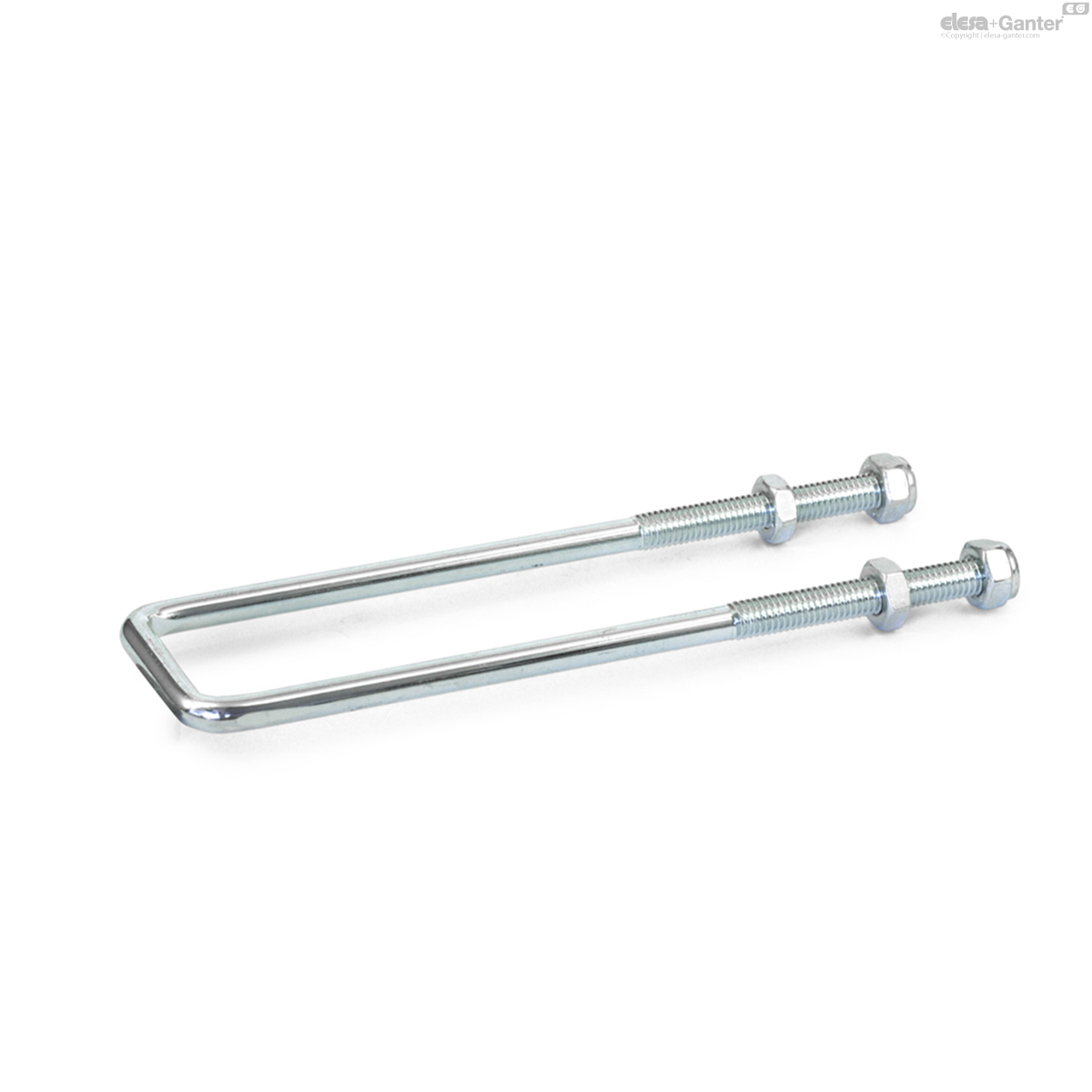

951.1-M4-21-103-ST GN 951.1 Steel

951.1-M4-21-103-ST

GN 951.1 Steel

Steel / Stainless Steel, for GN 851 / GN 851.1 / GN 851.2 / GN 851.3 latch type toggle clamps
  • Icons/__logo__INOX__.png
  • Icons/__logo__RoHS__.png
  • Icons/__logo__SPEEDYBLOCK__.png

Eta: 1-2 weeks All sizes and variants of GN 951.1

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 951.1-M4-21-103-ST
GN 852 r at w2 =0
80
GN 851 w2
14
Size GN 851.1 / GN 851.2
160
d1
M 4
b
21
l1
103
d2
3.4
l3
30
Size GN 851 / GN 851.3
160
GN 851 r at w2 =0
80
w2
14
GN 851.3 r at w2 =0
80
GN 851.3 w2
14
GN 851.1 / GN 851.2 r at w2 =0
82
GN 852.1 r at w2=0
82
GN 851.1 / GN 851.2 w2
14
20
951.1-M4-21-103-ST drawing
** These U-bolt latch lengths are included in the delivery of standard orders for GN 851 / GN 851.3.*** These U-bolt latch lengths are included in the delivery of standard orders for GN 851.1 / GN 851.2.

Version in Steel ST

zinc plated, blue passivated

Version in Stainless Steel AISI 304 NI

Hexagon nuts (with polyamide insert)

M4: DIN 934 / DIN 985

M6 / M8: DIN 936 / DIN 985

Steel, zinc plated, resp. Stainless Steel

  • Stainless Steel AISI 316 A4
