723.3-50-B8-B GN 723.3-B Without friction ring

723.3-50-B8-B

GN 723.3-B Without friction ring

for Control Knobs GN 723.4, Aluminum
  • Icons/__logo__RoHS__.png

Eta: 1-2 weeks All sizes and variants of GN 723.3

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 723.3-50-B8-B
d0 Control knob Ø GN 723.4
42
d1
50
d2 H8
B 8
d3 -0.1
37.3
d4
4.5
k
24
l1
16.2
l2
5
55

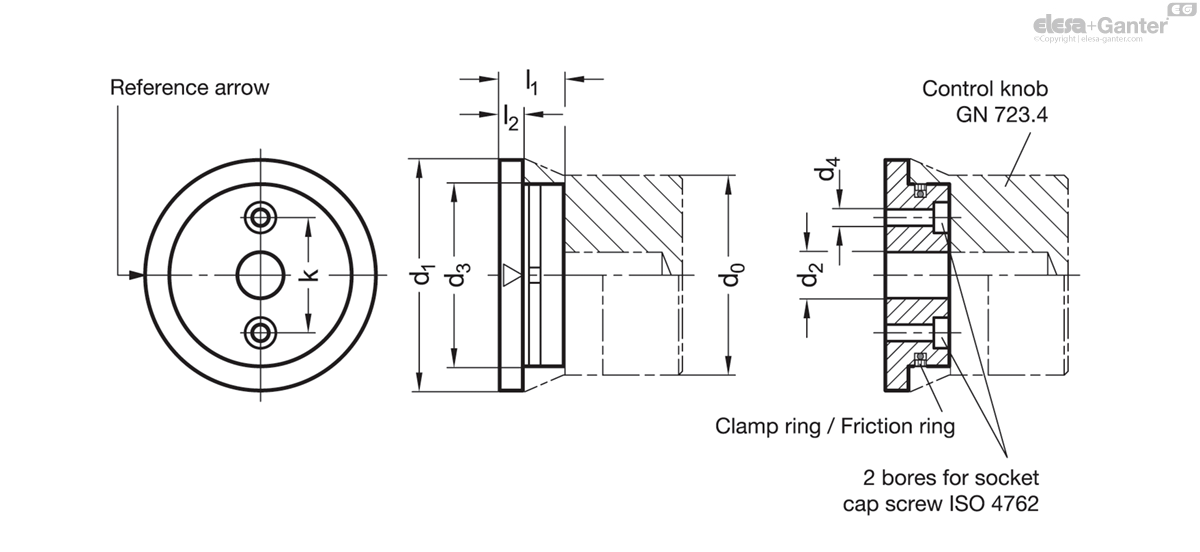

723.3-50-B8-B drawing

Type

  • Type A: With friction ring
  • Type B: Without friction ring

Flange

Aluminum

  • Anodized, black
  • Reference arrow
  • White
  • Laser-engraved

Clamp ring

Rubber

Friction ring

Plastic, polyamide (PA)

Reference flanges GN 723.3 are used together with control knobs GN 723.4 which offer the following advantages:

- they have a reference mark to line up with the control knob scale,

- they offer additional support for the control shaft,

- the version with friction ring prevents an unexpected movement of the control knob by vibration.
