51.6-ND-57-32-M6

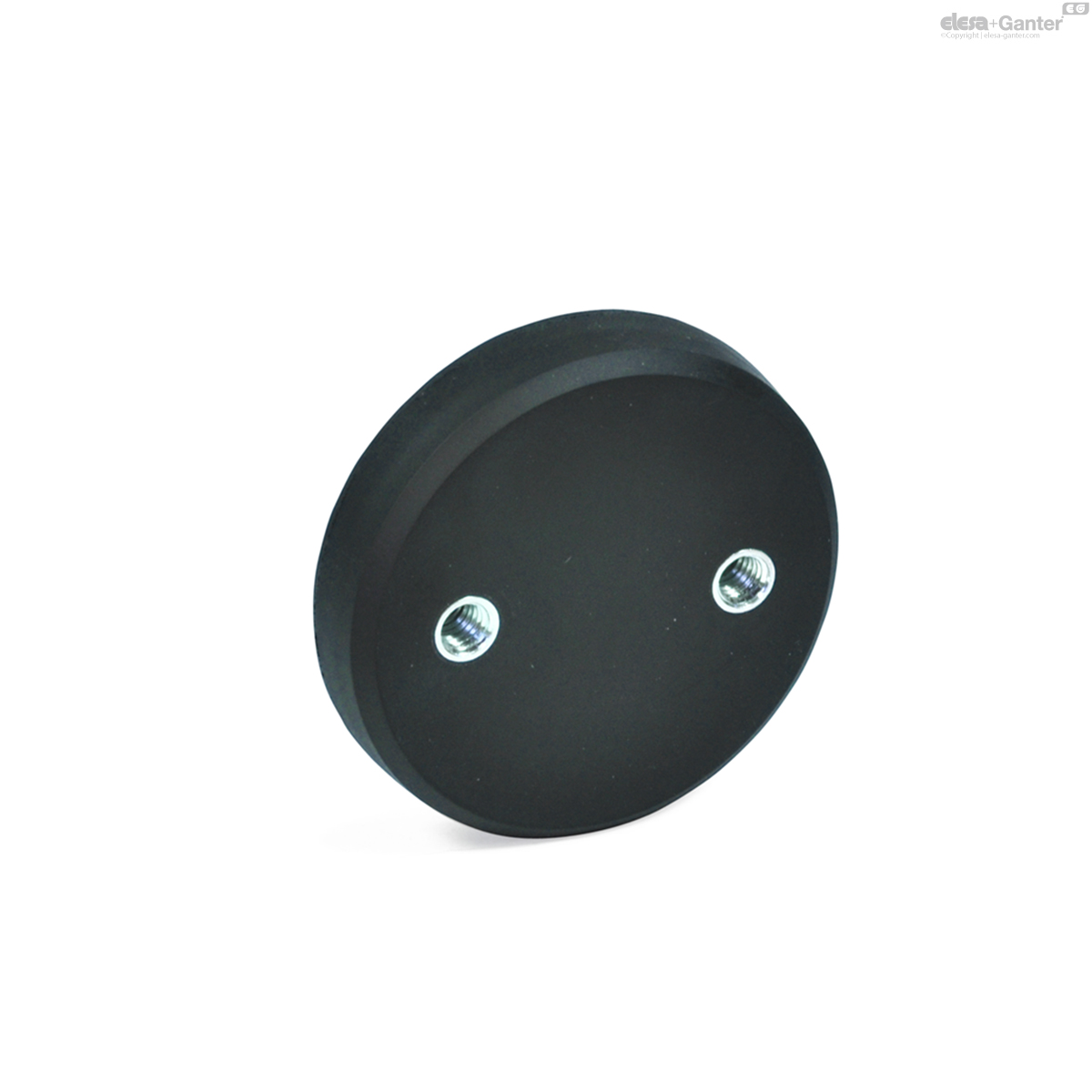

GN 51.6 Retaining magnets
disc-shaped, with 2 female thread, with rubber jacket
Eta: 1-2 weeks All sizes and variants of GN 51.6
🔒 Prices, live stock & CAD downloads
Sign in to see your prices and stock, download CAD files and order directly online.
Sign in Request an account
Technical datasheet

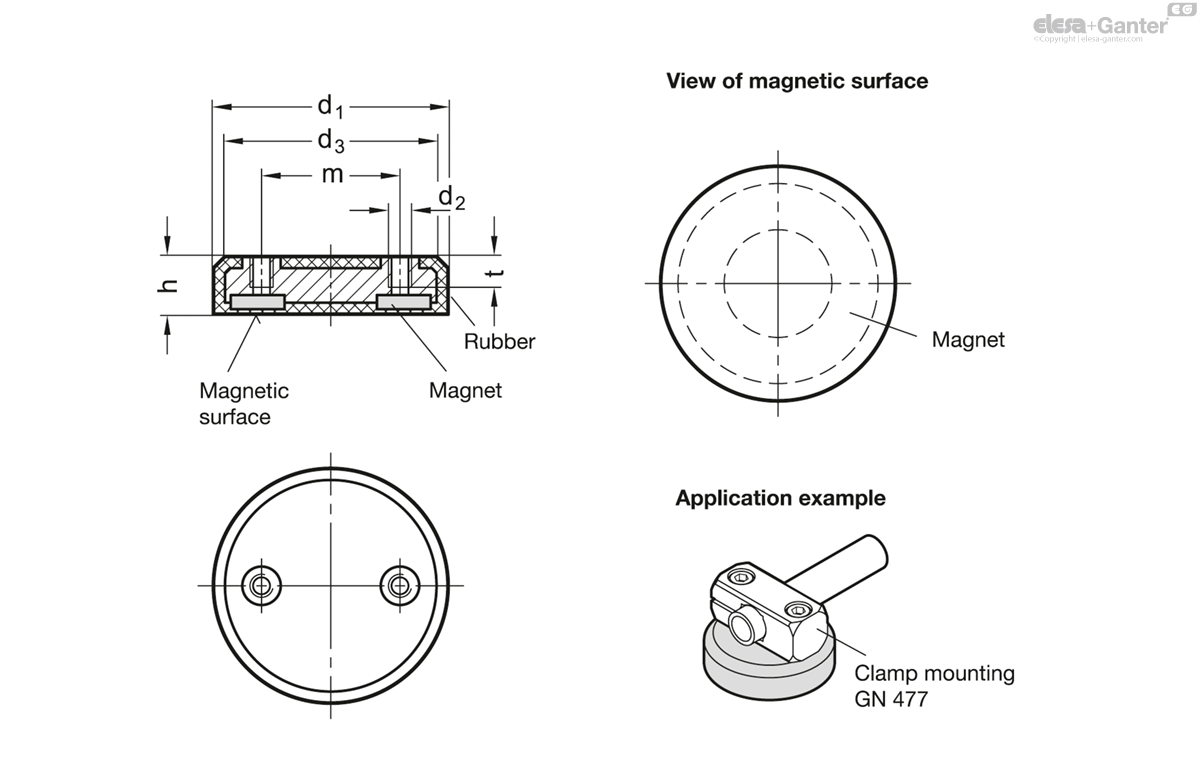

Technical data
- Catalogue
- GN 51.6-ND-57-32-M6
- d1
- 57
- m
- 32
- d2
- M 6
- d3
- 53
- h
- 11.3
- t min.
- 7
- Nominal adhesive forces in N
- 175
- 87
Steel part
zinc plated
Material of the magnet
NdFeB ND
Neodymium, iron, boron
temperature resistant up to 80 °C
Rubber jacket
Elastomer (TPE)
80 shore A ≈
black
Retaining magnets GN 51.6 are a shielded magnetic system with rubber jacket.
The rubber jacket protects sensitive surfaces from being damaged by the magnet and also delivers a higher friction coefficient, resulting in high lateral adhesion forces.
Its dimensions, especially the drill hole spacing m and the thread d2, match the clamp mountings GN 473, GN 477 and GN 480.
