992.5-D40-M12 GN 992.5 Stainless Steel-Insert bushings

992.5-D40-M12

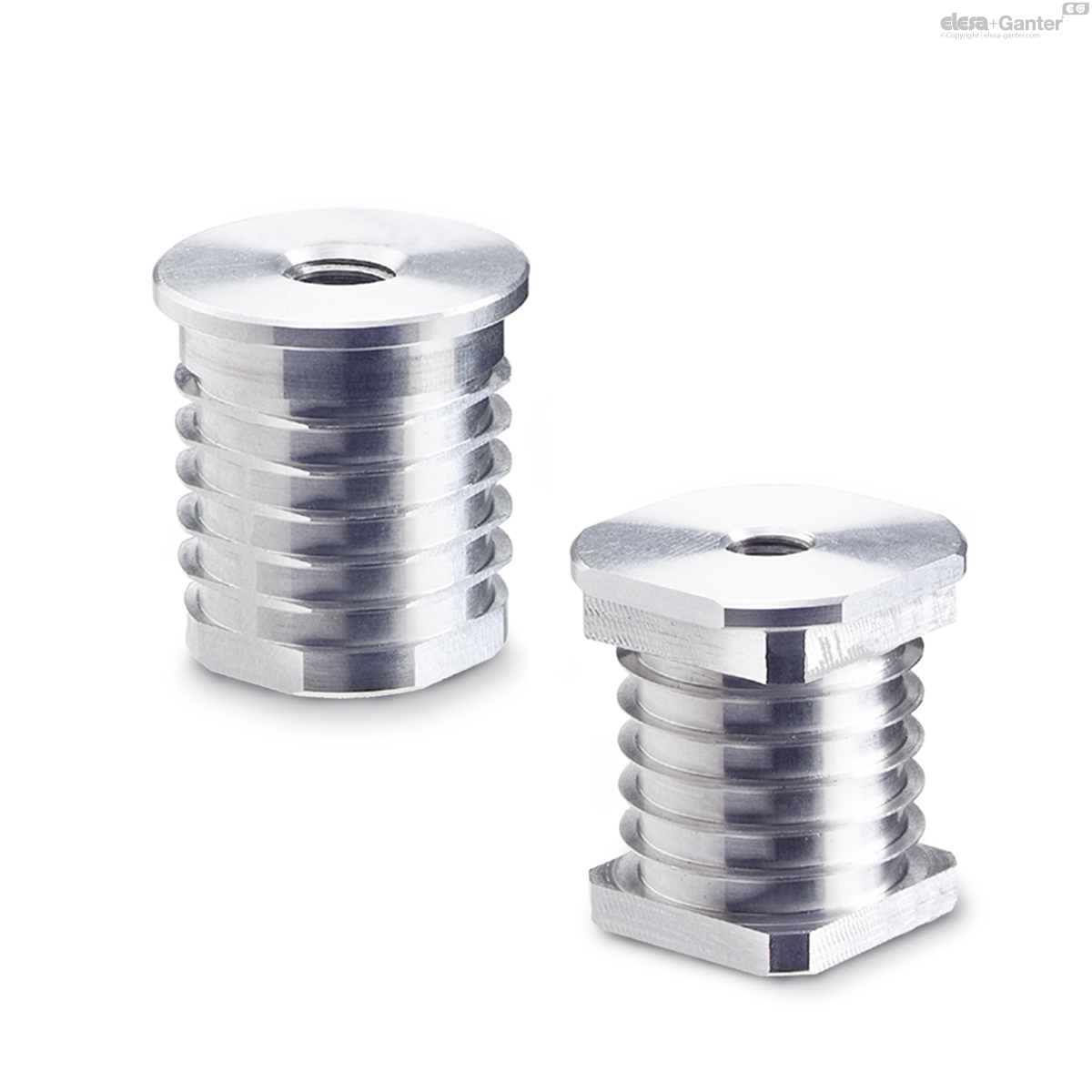

GN 992.5 Stainless Steel-Insert bushings

for round tube and square tube
  • Icons/__logo__INOX__.png
  • Icons/__logo__RoHS__.png

Eta: 1-2 weeks All sizes and variants of GN 992.5

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 992.5-D40-M12
d1
D 40
d2
M 12
d3
34
l1
33.5
l2
2.5
l3 +0.5
24
w
3
For tube
GN 990
D 40
180
992.5-D40-M12 drawing

Stainless Steel AISI 303

Drive the Stainless Steel-Insert bushings GN 992.5 in by using a soft-head mallet. Their lamellas bridge a production tolerance of the internal diameter or of the internal square of ±0.5 mm, allowing screws to be mounted in tubes.

The dimensions match those of the construction tubes GN 990 , but checking the tolerance position of the tube is recommended.
