GN 801 Clamp mounts
for toggle clamps with forked clamping arm
Eta: 1-2 weeks All sizes and variants of GN 801
🔒 Prices, live stock & CAD downloads
Sign in to see your prices and stock, download CAD files and order directly online.
Sign in Request an account
Technical datasheet
Technical data
- Catalogue
- GN 801-24-M10
- d1
- 24
- d2
- M 10
- l1
- 41
- l2
- 49
- l3
- 8
- d3
- M 5
- s1
- 24
- s2
- 10
- t
- 32
- 160
* Dimension in (...) applies to GN 860** Dimension in (...) applies to GN 812, GN 812.1, GN 862 and GN 862.1*** Dimension in (...) applies to GN 812, GN 812.1, GN 860, GN 862 and GN 862.1
Steel
zinc plated, blue passivated

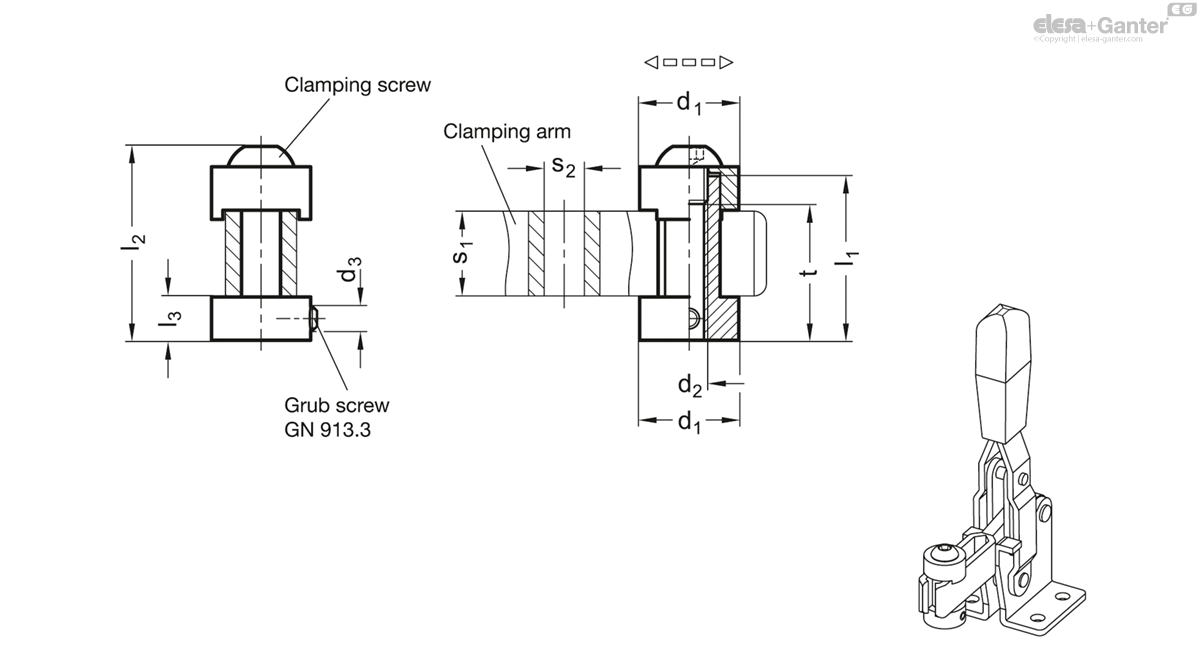

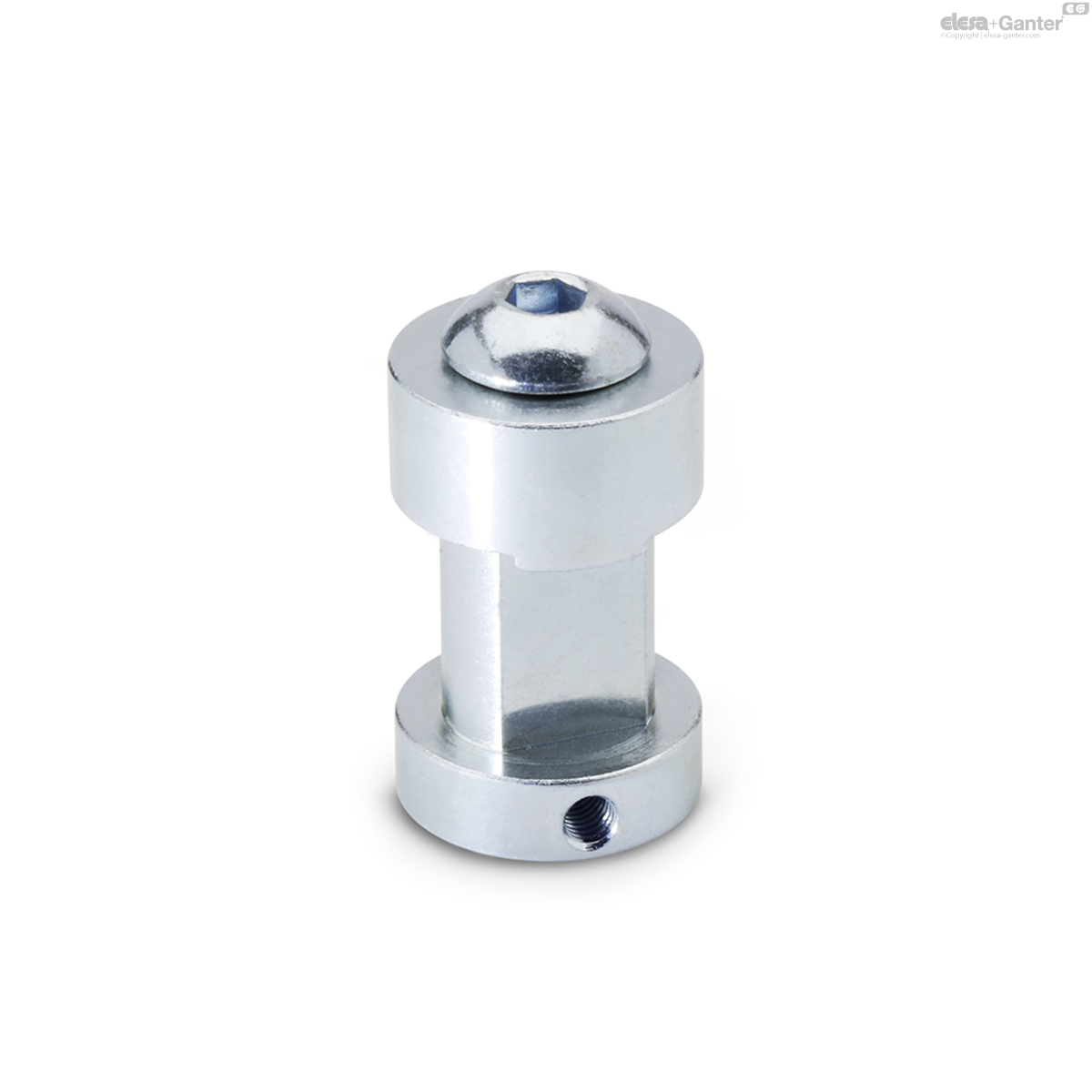

GN 801 clamp mounts have been developed for use with toggle clamps that are designed with a forked clamping arm.
The clamp mounts can be moved along the clamping arm. Once the desired position is reached, you can secure the mount in place with the clamping screw.
The thread d2 serves to hold the wide variety of toggle clamp spindle assemblies, spring elements and similar devices.
The ideal clamping height can be adjusted without loosening the clamp mount on the forked clamping arm.
