653.10-M6-16-ST-KU GN 653.10 Steel

653.10-M6-16-ST-KU

GN 653.10 Steel

Steel / Stainless Steel, with MS- / KU- pivot
  • Icons/__logo__INOX__.png
  • Icons/__logo__RoHS__.png

Eta: 1-2 weeks All sizes and variants of GN 653.10

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 653.10-M6-16-ST-KU
d1
M 6
l1 -1
16
l2
1.3
d2
3.5
d3
24
k
5
19

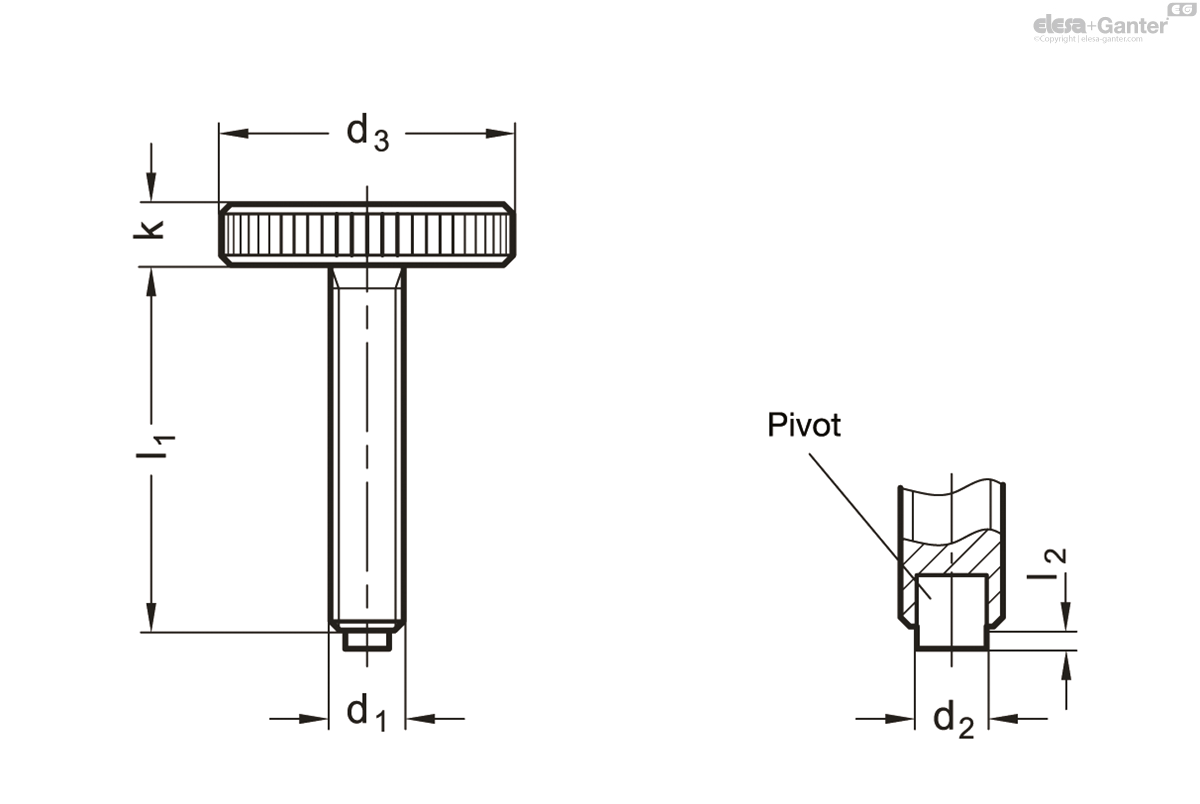

653.10-M6-16-ST-KU drawing

Version in Steel ST

  • Tensile strength class 5
  • visible face fine turned
  • blackened

Version in Stainless Steel AISI 303 NI

  • visible face fine turned
  • matt shot-blasted

Pivot

Brass MS

Plastic (Polyacetal POM) KU

Flat knurled screws GN 653.10 with pivots in brass or plastic are used in applications, where marks and damages on the workpiece are unacceptable.

The head dimensions comply with flat knurled screws DIN 653 .
