425.3-20-250-ST GN 425.3-ST Steel

425.3-20-250-ST

GN 425.3-ST Steel

Steel / Stainless Steel, without Thread, for Welding
  • Icons/__logo__INOX__.png
  • Icons/__logo__RoHS__.png

Eta: 1-2 weeks All sizes and variants of GN 425.3

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 425.3-20-250-ST
d1
20
Length l ±0.5
250
d2 H12
5
h
68
r
22
t
8
800

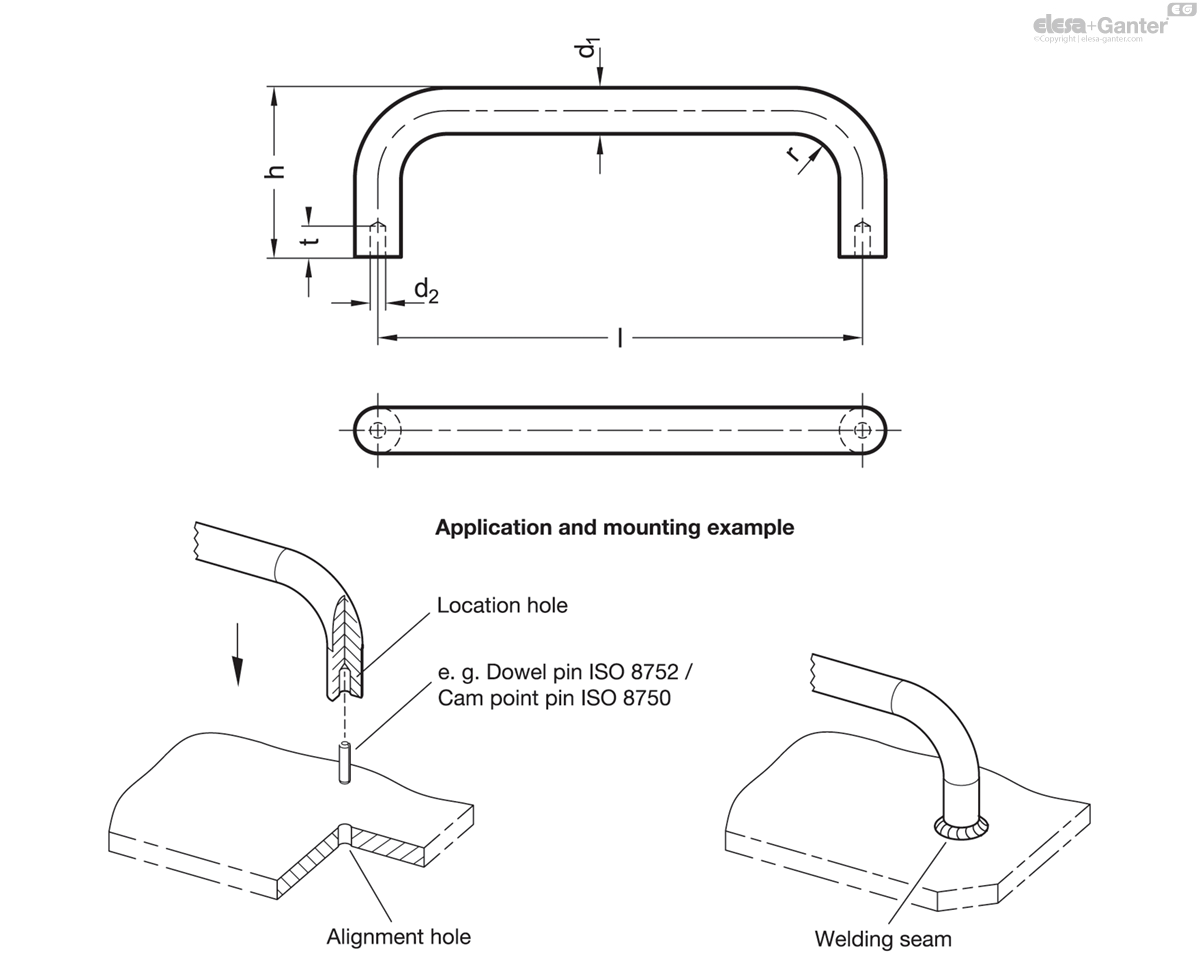

425.3-20-250-ST drawing

Steel ST

Plain finish

Stainless steel AISI 304 NI

Matte shot-blasted

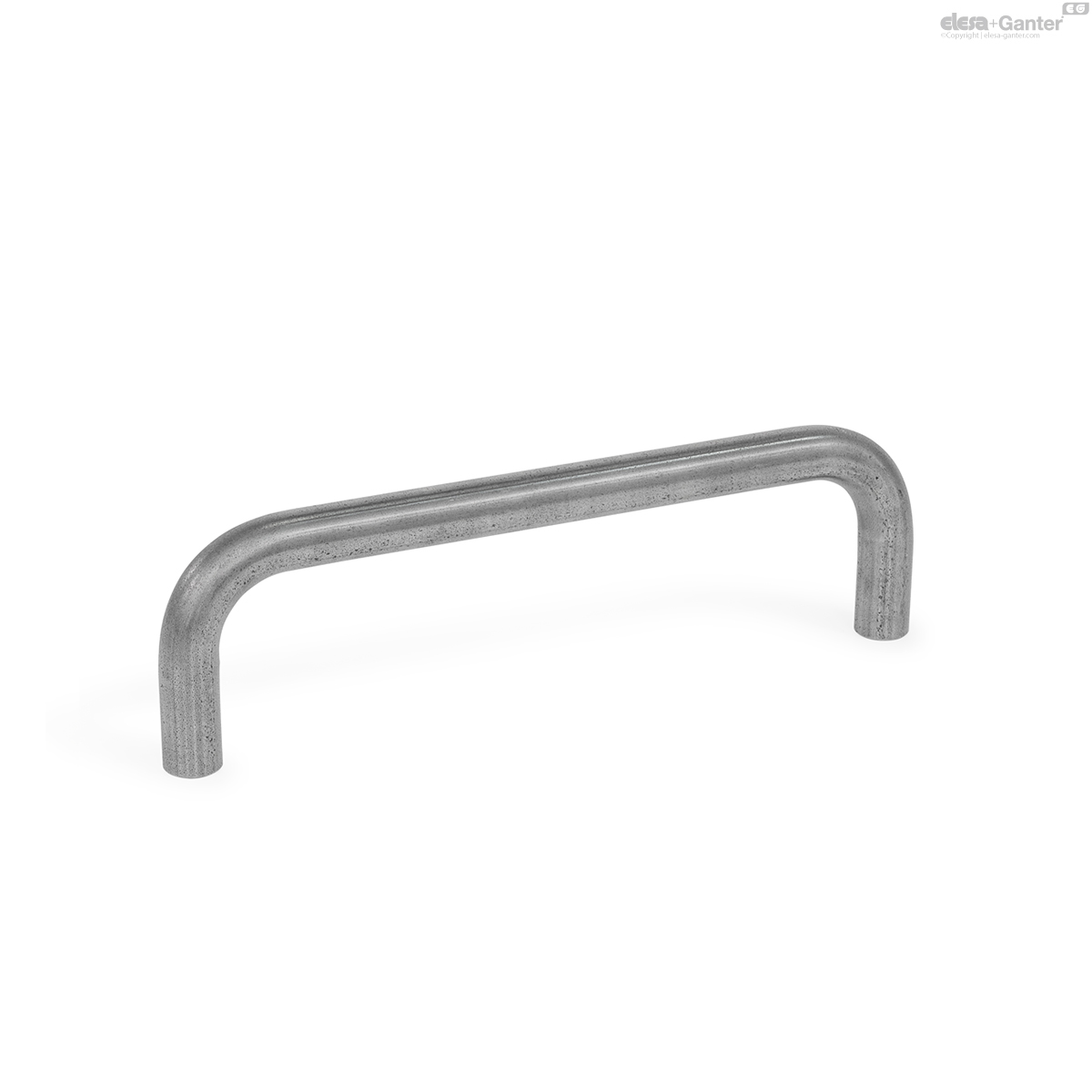

Cabinet U-handles GN 425.3 are made of bent steel or stainless steel sections and are affixed by welding.

The holes d2 serve, if necessary, for inserting dowel pins or guide pins that provide a simple method for positioning and fixing the cabinet U-handle in place via the alignment holes in the opposing part for the welding process.
