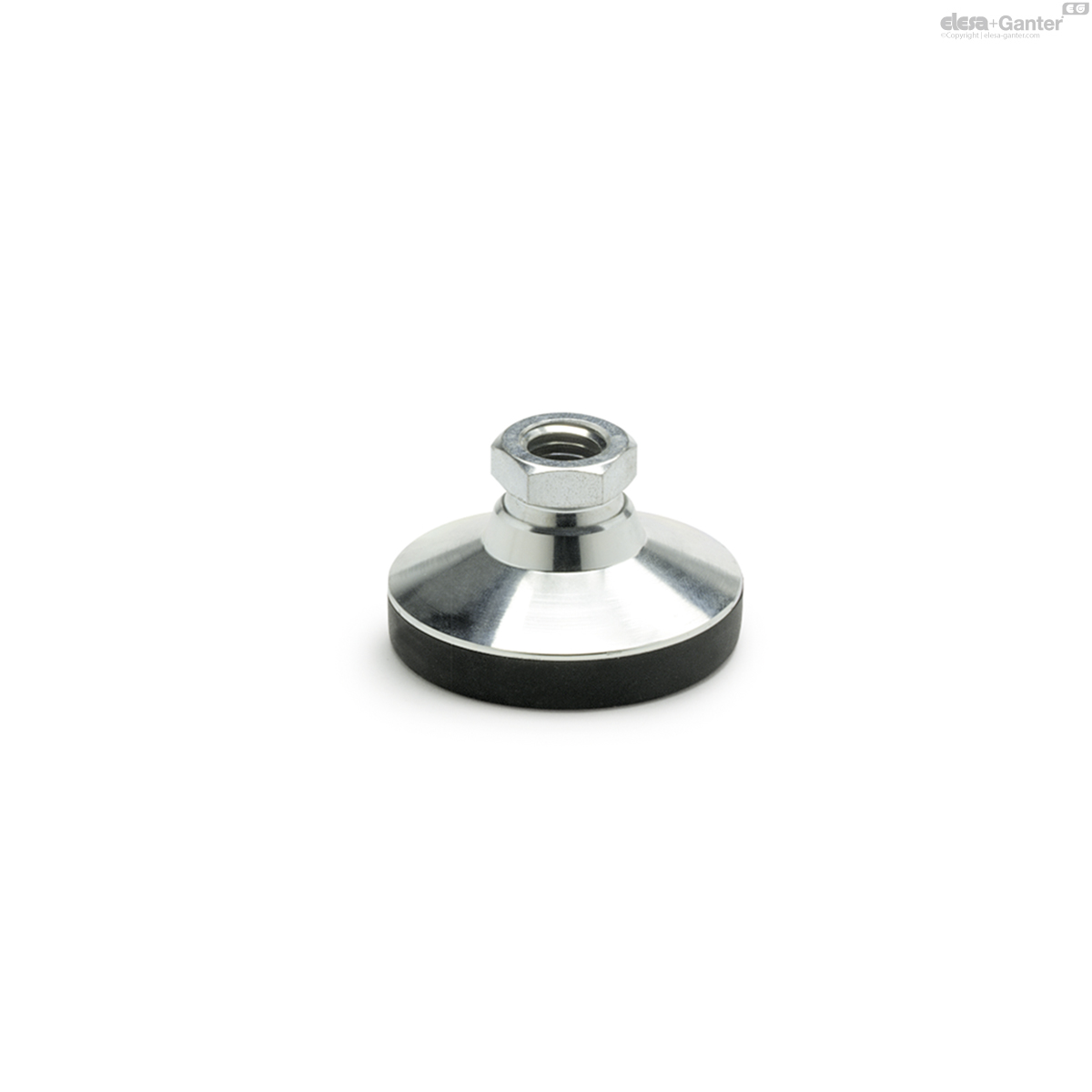

343.1-40-M10-KRE GN 343.1 Levelling mounts

343.1-40-M10-KRE

GN 343.1 Levelling mounts

Foot, female thread
  • Icons/__logo__ESD__.png
  • Icons/__logo__RoHS__.png

Eta: 1-2 weeks All sizes and variants of GN 343.1

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 343.1-40-M10-KRE
d1
40
d2
M 10
l3
27.5
l5
7.5
A/F
15
t min.
10.5
102

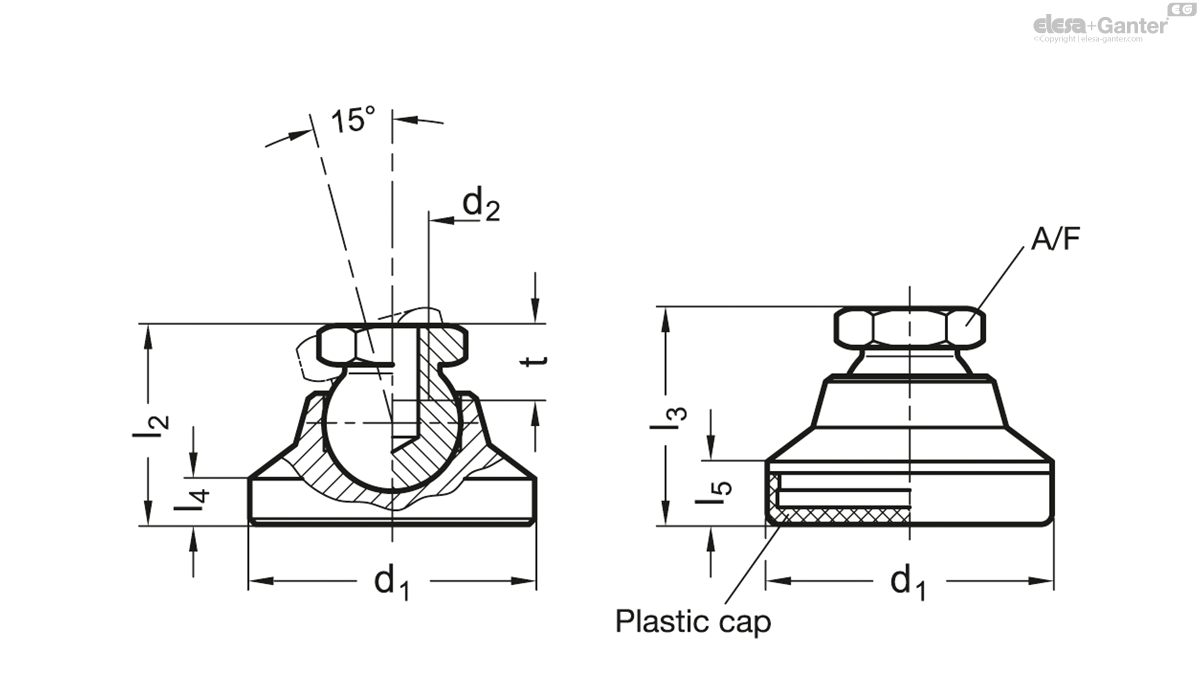

343.1-40-M10-KRE drawing

Types

  • Type OS: without plastic cap
  • Type KS: with plastic cap, gliding
  • Type KR: with plastic cap, non-gliding
  • Type KSE: with plastic cap, gliding, electrically conductive (antistatic)
  • Type KRE: with plastic cap, non-gliding, electrically conductive (antistatic)

Steel

Tensile strength class 5.8

zinc plated, blue passivated

Type KS / KSE

Plastic cap Polyacetal (POM)

KS: white (natural colour) RAL 9001

KSE: black, electrically conductive

Surface resistivity: < 106 Ω

Volume resistivity: < 107 Ω

DIN EN 61340-5-1 / 61340-2-3

Type KR / KRE

Plastic cap Elastomer (TPE), 78 Shore A ≈

KR: black

KRE: black, electrically conductive

Surface resistivity: < 106 Ω

Volume resistivity: < 107 Ω

DIN EN 61340-5-1 / 61340-2-3

The static load of the levelling mounts GN 343.1 is limited by the load capacity of the ball joint with threaded stud (tensile strength class 5.8 ). The static load values (only valid for Type OS / KS) in the table refer to a net vertical load in relation to the levelling foot. Under normal operating conditions side loading or angular loading is not uncommon and the load capacity would be considerably reduced which must be taken into consideration.

Levelling feet GN 343.1 cannot be disassembled.
