313-6-DK-2-ST

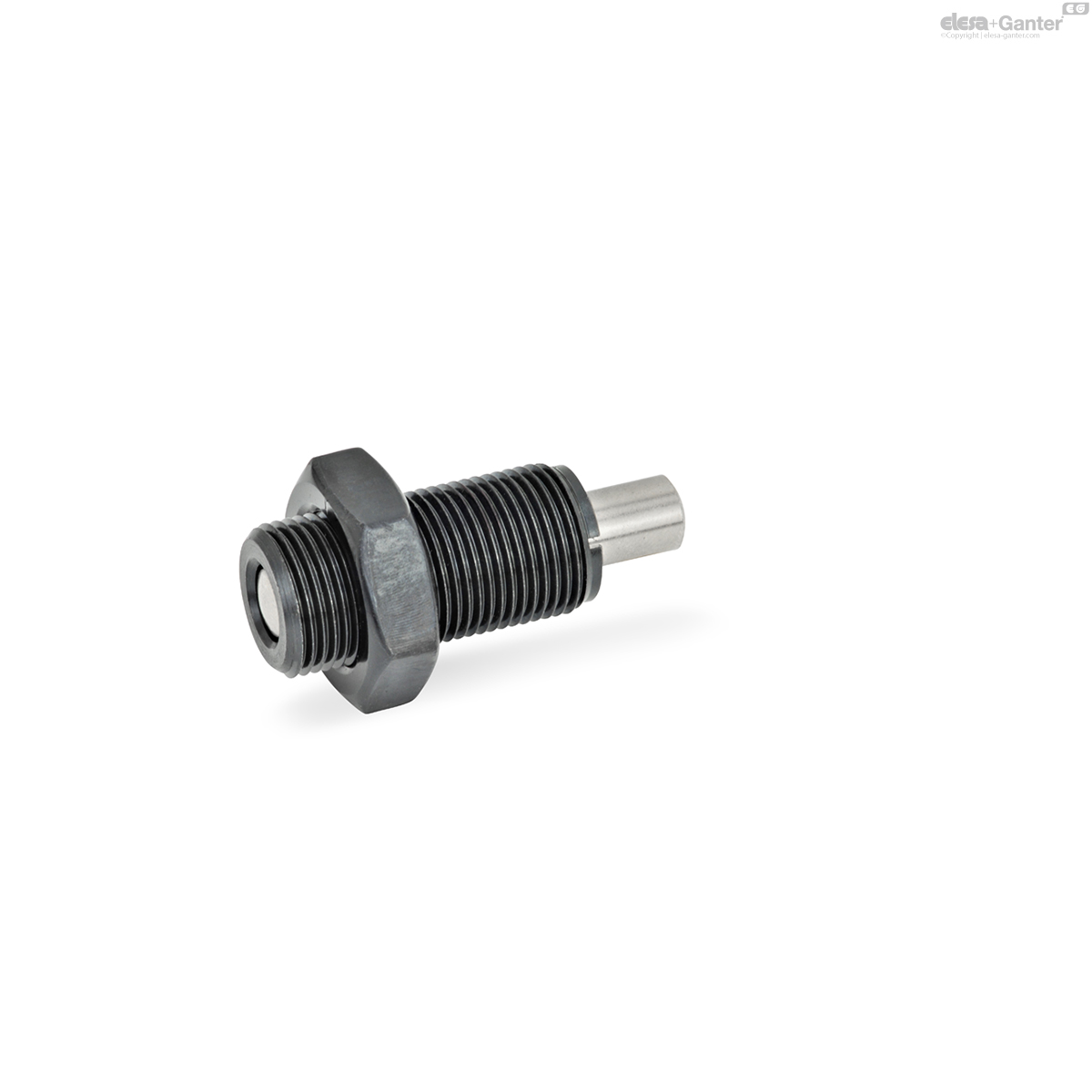

GN 313 Spring bolts, Steel
Steel / Stainless Steel, Pin retracted in normal position
Eta: 1-2 weeks All sizes and variants of GN 313
🔒 Prices, live stock & CAD downloads
Sign in to see your prices and stock, download CAD files and order directly online.
Sign in Request an account
Technical datasheet
Technical data
- Catalogue
- GN 313-6-DK-2-ST
- d1 Pin -0.02/-0.05 Bore H7
- 6
- d2
- M12 x 1.5
- d3
- M 4
- d4
- 19
- l1
- 7
- l2
- 26
- l3 ≈
- 49
- l4 ≈
- 35
- t min.
- 7
- Spring load in N ≈
initial - 9
- Spring load in N ≈
end - 28
- Code no.
Screw driver - GN 613.1-6
- 20
Types
- Type A: with knob, without lock nut
- Type AK: with knob, with lock nut
- Type D: without knob, without lock nut
- Type DK: without knob, with lock nut
Identification no.
- Version 1: Plunger without internal thread
- Version 2: Plunger with internal thread
Guide (Threaded socket)
Steel ST
blackened
Guide (Threaded socket)
Stainless Steel AISI 303 NI
Pin
Stainless Steel
- AISI 303
- chemically nickel plated
Knob
Plastic (Polyamide PA)
- black, matt
- not removable
The pin of the spring bolts GN 313 does not protrude in the inoperative position.
It can be operated manually or in Type D and DK mechanically (pneumatic cylinder, cam plate, etc.) when it will protrude only as long as it is operated.
Using the internal thread at identification 2 on the pressure side, special pressure bolts or a rod arrangement can be operated, for instance.
