835-46-M8-16-MT
GN 835 Wing Screws
Eta: 1-2 weeks All sizes and variants of GN 835
🔒 Prices, live stock & CAD downloads
Sign in to see your prices and stock, download CAD files and order directly online.
Sign in Request an account

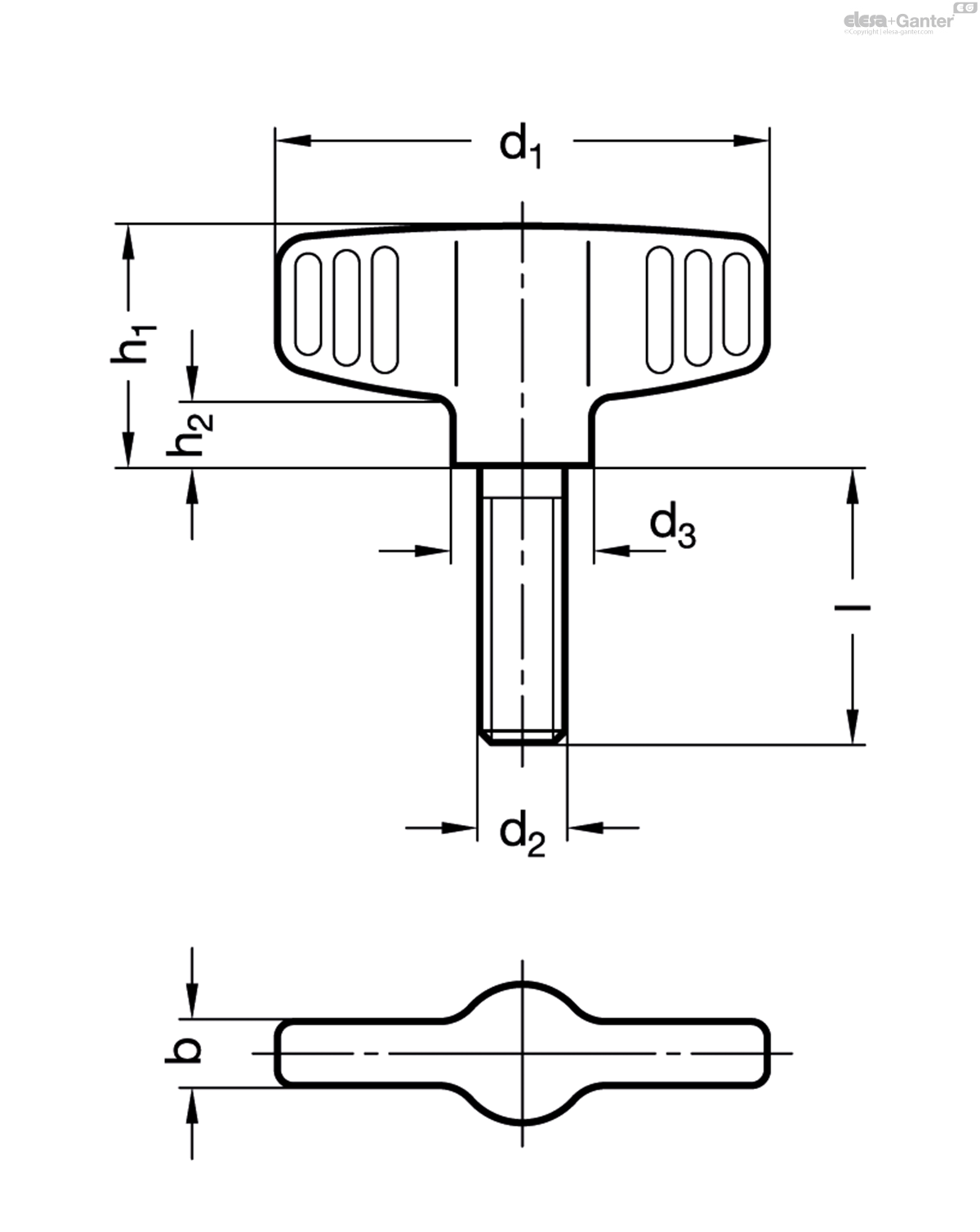

Technical datasheet
Technical data
- Catalogue
- GN 835-46-M8-16-MT
- d1
- 46
- d2
- M 8
- l
- 16
- d3
- 13
- b
- 6
- h1
- 22.5
- h2
- 6
- 50
Stainless Steel AISI CF-8 (Precision casting)
matt shot-blasted MT
