743.1-32-G11/2-A GN 743.1 Oil level sight glasses

743.1-32-G11/2-A

GN 743.1 Oil level sight glasses

Aluminum / natural glass, resistant up to 180 °C
  • Icons/__logo__RoHS__.png
  • Icons/__logo__g18020__.png

Eta: 1-2 weeks All sizes and variants of GN 743.1

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 743.1-32-G11/2-A
d1
32
d2
G 1 1/2
d3
60
l1
13
l2
9
s
55
78

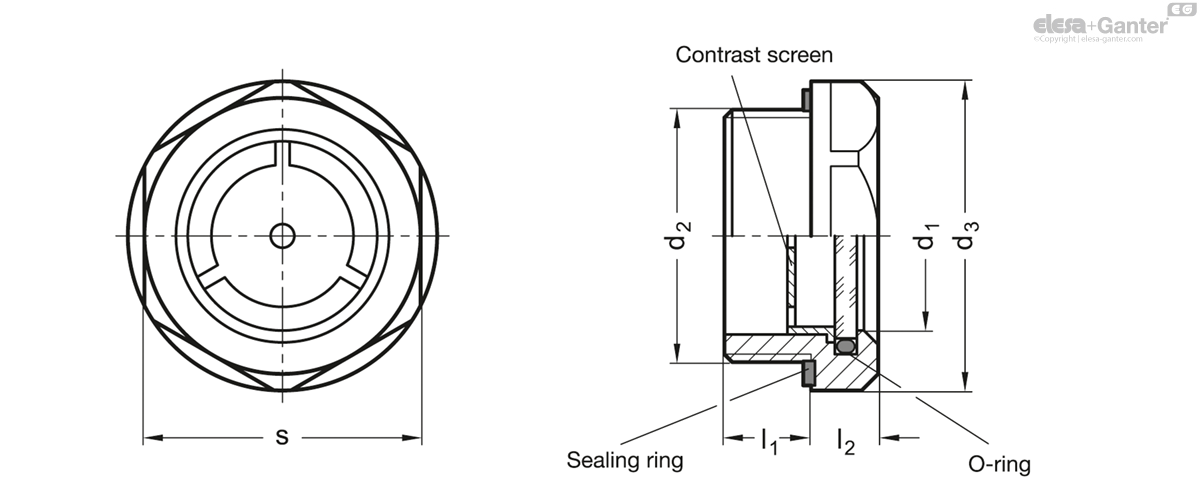

743.1-32-G11/2-A drawing

Types

  • Type A: with contrast screen, blank
  • Type AS: with contrast screen, black anodized
  • Type B: without contrast screen, blank
  • Type BS: without contrast screen, black anodized

Body

Aluminium

  • Type A and B: fine turned, blank
  • Type AS and BS: fine turned, black anodized

Contrast screen

Technopolymer (Polysulfon)

  • temperature resistant up to 180 °C
  • Sight glass ESG-glass
  • Sealing ring rubber FPM (Viton®)

Identification by not black finish of the sealing ring

Oil level sight glasses GN 743.1 offer genuine glass of high stability and scratch proof. The sealing is achieved with an O-ring on the periphery and not on the face edge of the glass. Leak tightness is therefore not affected by axial pressures.

The outside diameter of these oil level sight glasses with recessed hexagon is chosen to match mounting holes for tube connections according to DIN 3852.

The seal is housed in a groove and it can therefore not be lost. In addition, this groove prevents the seal from being extruded when the sight glass is tightened.

Oil level sight glasses GN 743.1 can be used on pressurised oil tanks. Tests regarding maximum pressure are available on request.

Assembly instruction:

For mounting on walls of less than 4 mm thickness please use a fixing nut  GH..

  • RoHS compliant (only types AS and BS)
  • Fixing nut GH.
  • EPDM seal
