704-50-B28
GN 704 Quick Release Shaft Collars
Eta: 1-2 weeks All sizes and variants of GN 704
🔒 Prices, live stock & CAD downloads
Sign in to see your prices and stock, download CAD files and order directly online.
Sign in Request an account
Technical datasheet

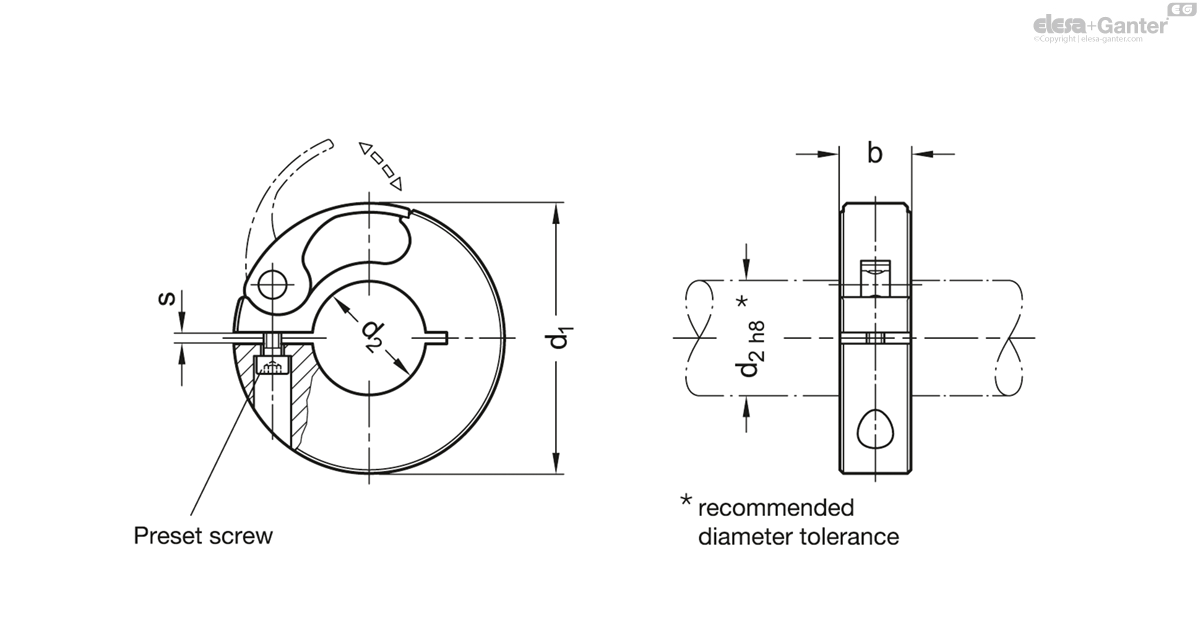

Technical data
- Catalogue
- GN 704-50-B28
- d1
- 50
- d2
- B 28
- b
- 13
- s
- 1.5
- Tightening torque
of the screws
in Nm ≈ - 0.7
- Axial load in N ≈ min.
- 311
- Axial load in N ≈ max.
- 445
- 44
Ring
Aluminum
Black anodized
Lever
Aluminum
Yellow anodized
Quick release shaft collars GN 704 are clamped by reducing the slot height using an eccentric lever.
That allows the collars to be adjusted easily and quickly without tools.
The aluminum design delivers low inertia values.
The specified tightening torque of the screw is a recommended value with which the collar clamped to a shaft (with closed eccentric lever) is capable of reaching the specified axial load capacity. The details on axial load capacity are non-binding guidance values and do not constitute a warranty of characteristics.
Keeping the friction surface of the eccentric lever slightly greased will help to prolong the useful service life.
