6320-10-M6 DIN 6320 Feet

6320-10-M6

DIN 6320 Feet

  • Icons/__logo__RoHS__.png

Eta: 1-2 weeks All sizes and variants of DIN 6320

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
DIN 6320-10-M6
h
10
d1
M 6
d2
8
e min.
11.5
l
11
s
10
8

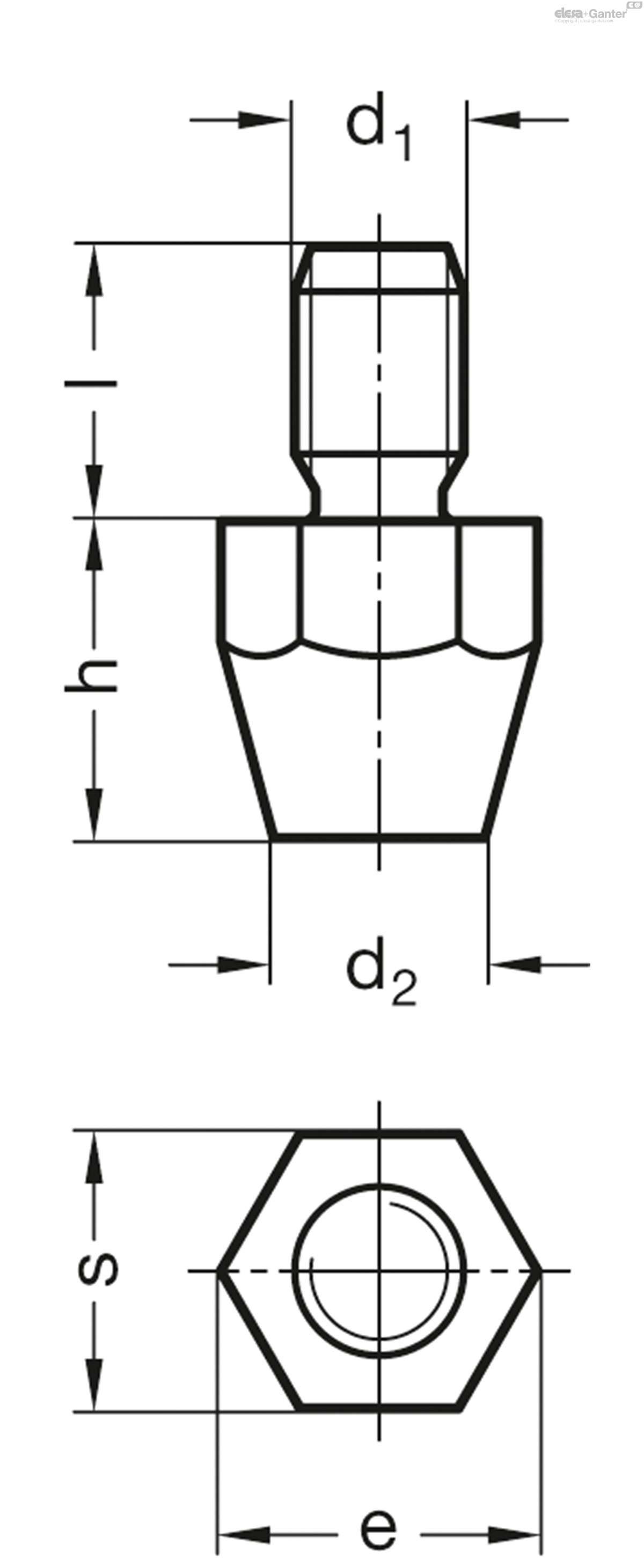

6320-10-M6 drawing

Steel (German Material No. 1.0718)

  • not hardened
  • blackened

Feet DIN 6320 are normally used in jig construction if neither a self-aligning support nor an axial adjustment is required.

Unlike the models specified in the official standard sheet, these feet are made of 1.0718 steel (in place of quenched and tempered steel).
