631.5-32-6,1 GN 631.5 Stainless Steel-Thrust pads

631.5-32-6,1

GN 631.5 Stainless Steel-Thrust pads

for Grub screws GN 632.5
  • Icons/__logo__INOX__.png
  • Icons/__logo__RoHS__.png

Eta: 1-2 weeks All sizes and variants of GN 631.5

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 631.5-32-6,1
d1
32
d2
6.1
d3
14
e ≈
6
h1
11
h2
3
Grub screw GN 632.5
M 8
35

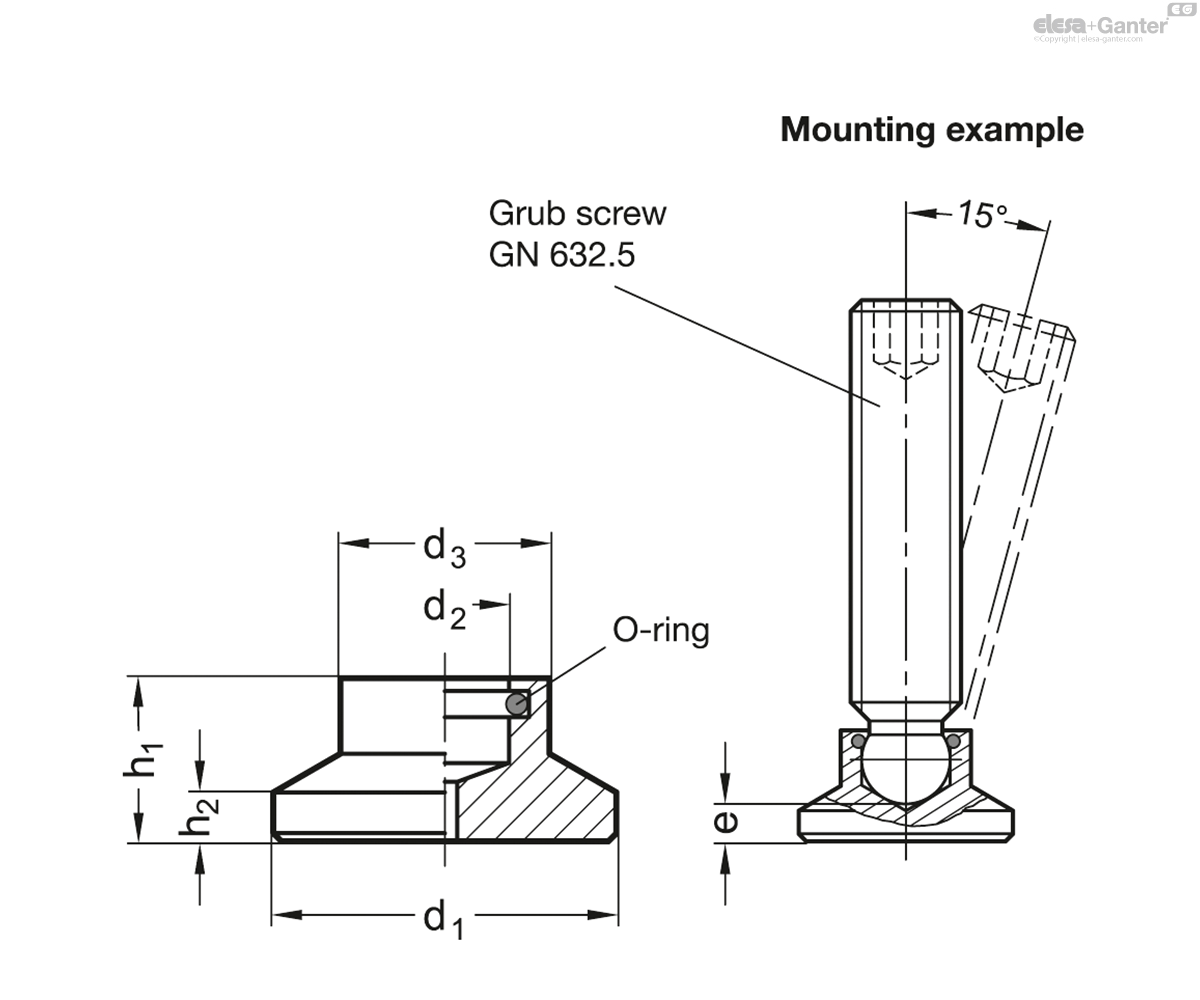

631.5-32-6,1 drawing

Stainless Steel AISI 303

O-Ring rubber FPM (Vition ®)

temperature resistant up to 200 °C

Thrust pads GN 631.5 with ball point grub screw  GN 632.5  are ideal to transmit clamping forces. They lean to uneven and unparallel surfaces. They are easy to press-on to the ball point of the grub screw by hand.
