609.5-20-22-6 GN 609.5 Distance Bushings

609.5-20-22-6

GN 609.5 Distance Bushings

Stainless Steel, for Mounting Indexing Plungers / Cam Action Indexing Plungers
  • Icons/__logo__INOX__.png
  • Icons/__logo__RoHS__.png

Eta: 1-2 weeks All sizes and variants of GN 609.5

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 609.5-20-22-6
d1 H12
20
d2 -0.1
22
l ±0.1
6
For thread Ø
M 20
For indexing plungers
GN 612.8 / GN 617 .1 .2 / GN 817 .2 .4 .6 .8
3

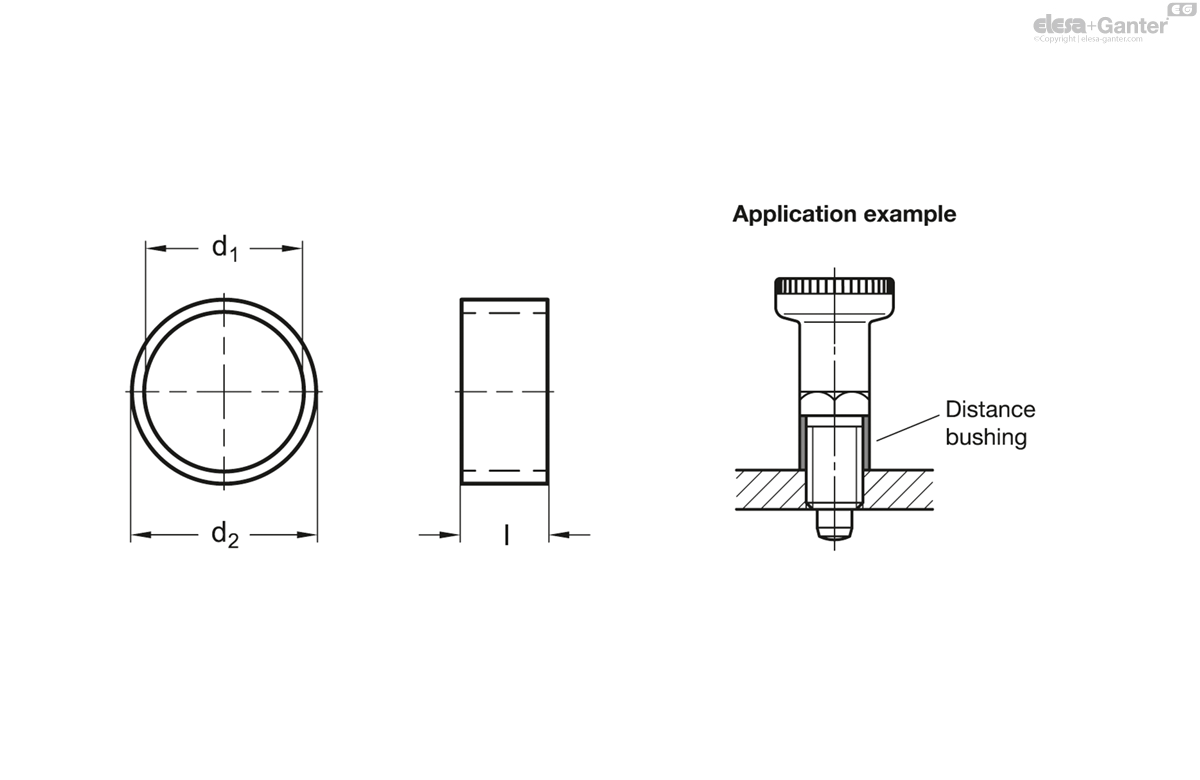

609.5-20-22-6 drawing

Stainless steel AISI 303

Distance bushings GN 609.5 compensate for the body thread lengths on the indexing plungers and cam action indexing plungers a to allow mounting through walls of varying thickness.
