535-28-M8-30-MT
GN 535 Knurled Screws
In stock All sizes and variants of GN 535
🔒 Prices, live stock & CAD downloads
Sign in to see your prices and stock, download CAD files and order directly online.
Sign in Request an account
Technical datasheet

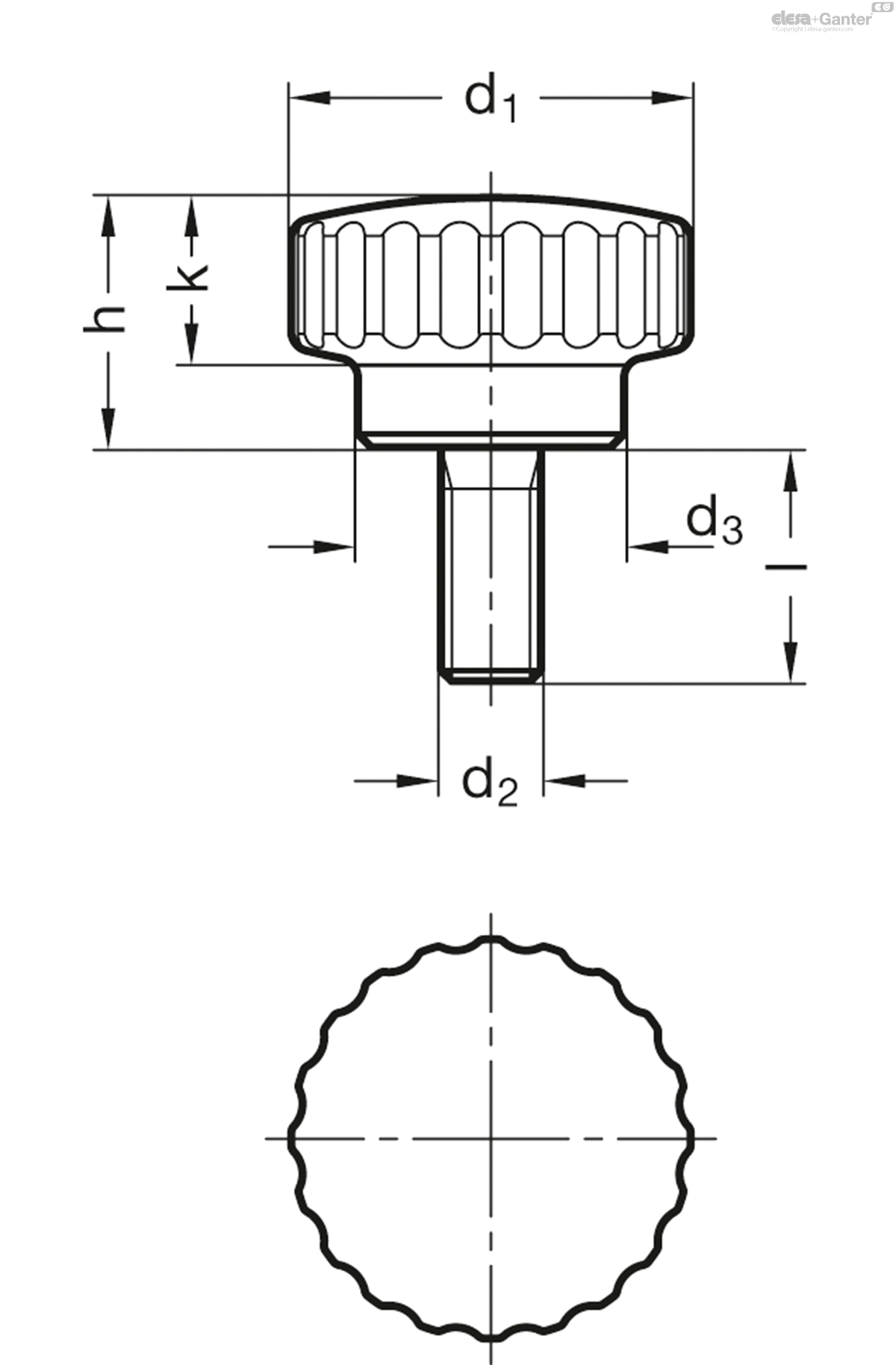

Technical data
- Catalogue
- GN 535-28-M8-30-MT
- d1
- 28
- d2
- M 8
- l
- 30
- d3
- 18
- h
- 17
- k
- 12.5
- 72
Stainless Steel AISI 304
- matt shot-blasted MT
- highly polished PL
The knurling of Stainless Steel-Knurled screws GN 535 allows a use in an environment with hygienic requirements.
