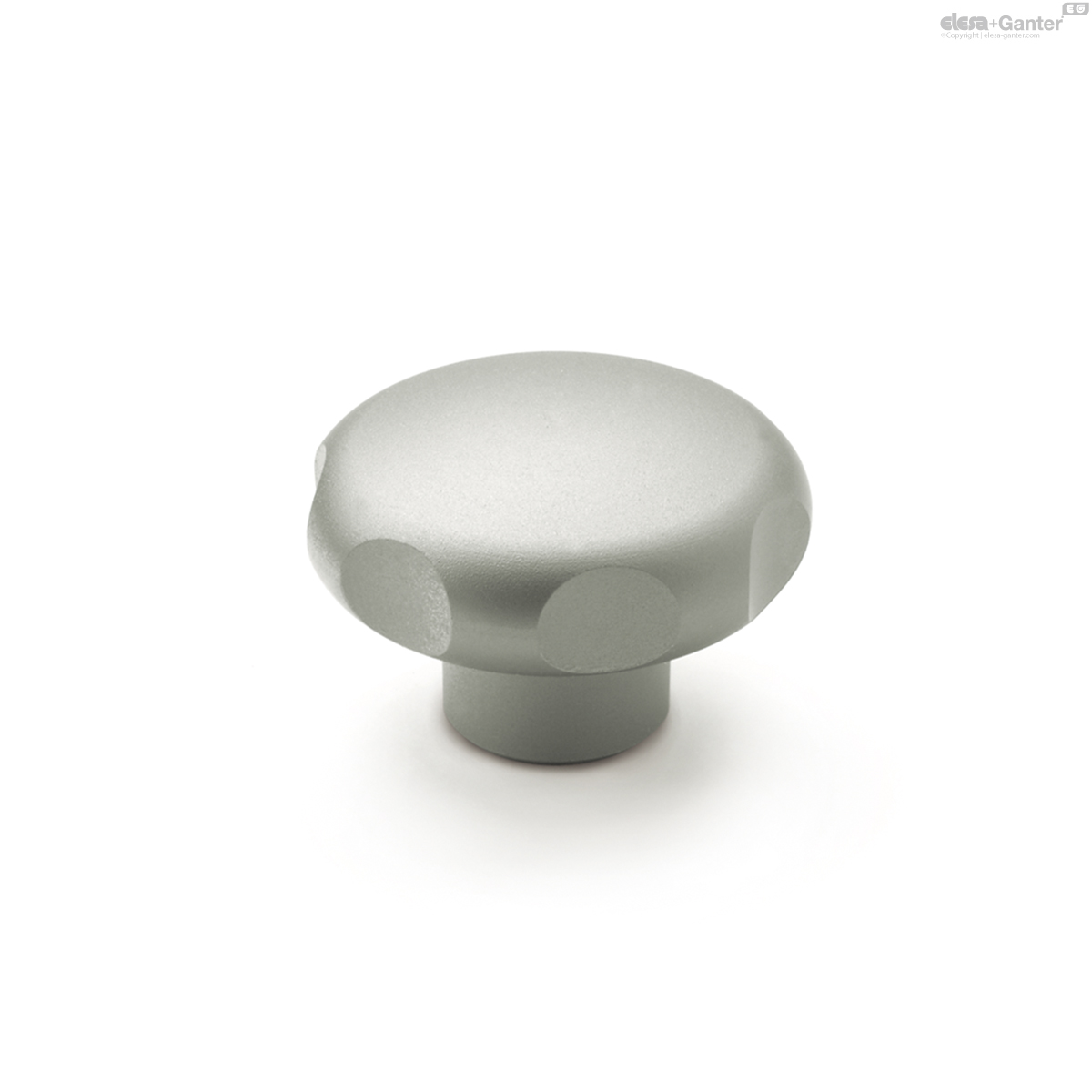

5335-60-M12-D-PL GN 5335 with female thread

5335-60-M12-D-PL

GN 5335 with female thread

Stainless Steel AISI 303 (A1)
  • Icons/__logo__INOX__.png
  • Icons/__logo__RoHS__.png

Eta: 1-2 weeks All sizes and variants of GN 5335

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 5335-60-M12-D-PL
d1
60
d2
M 12
d4
25
h1
39
h2
18
t2
20
366

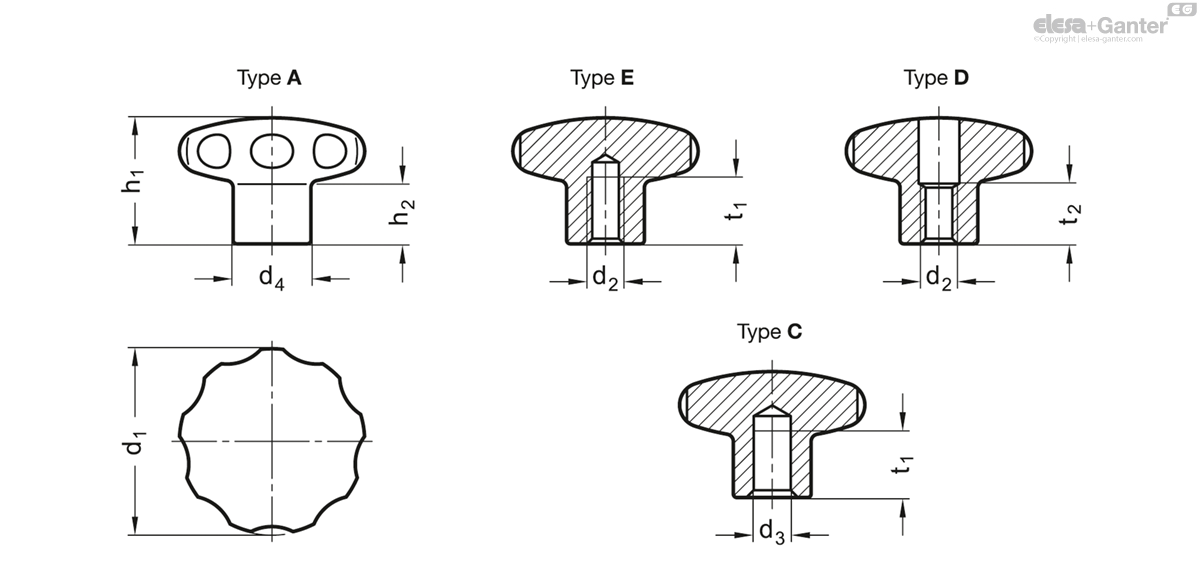

5335-60-M12-D-PL drawing

Version with female thread:

Types

  • Type A: without bore
  • Type E: with threaded blind bore
  • Type D: with threaded through bore
  • Type C: with plain blind bore H7

Stainless Steel AISI 303

  • matt shot-blasted
  • highly polished PL (only type D and E)

Version with threaded bolt:

Stainless Steel AISI 303

  • matt shot-blasted

Stainless Steel-Star knobs GN 5335 are a special development intended for the food processing machinery industry. The smooth and enclosed areas as well as the large corner radii comply with the requirements of hygiene standards.
