511-M4-20

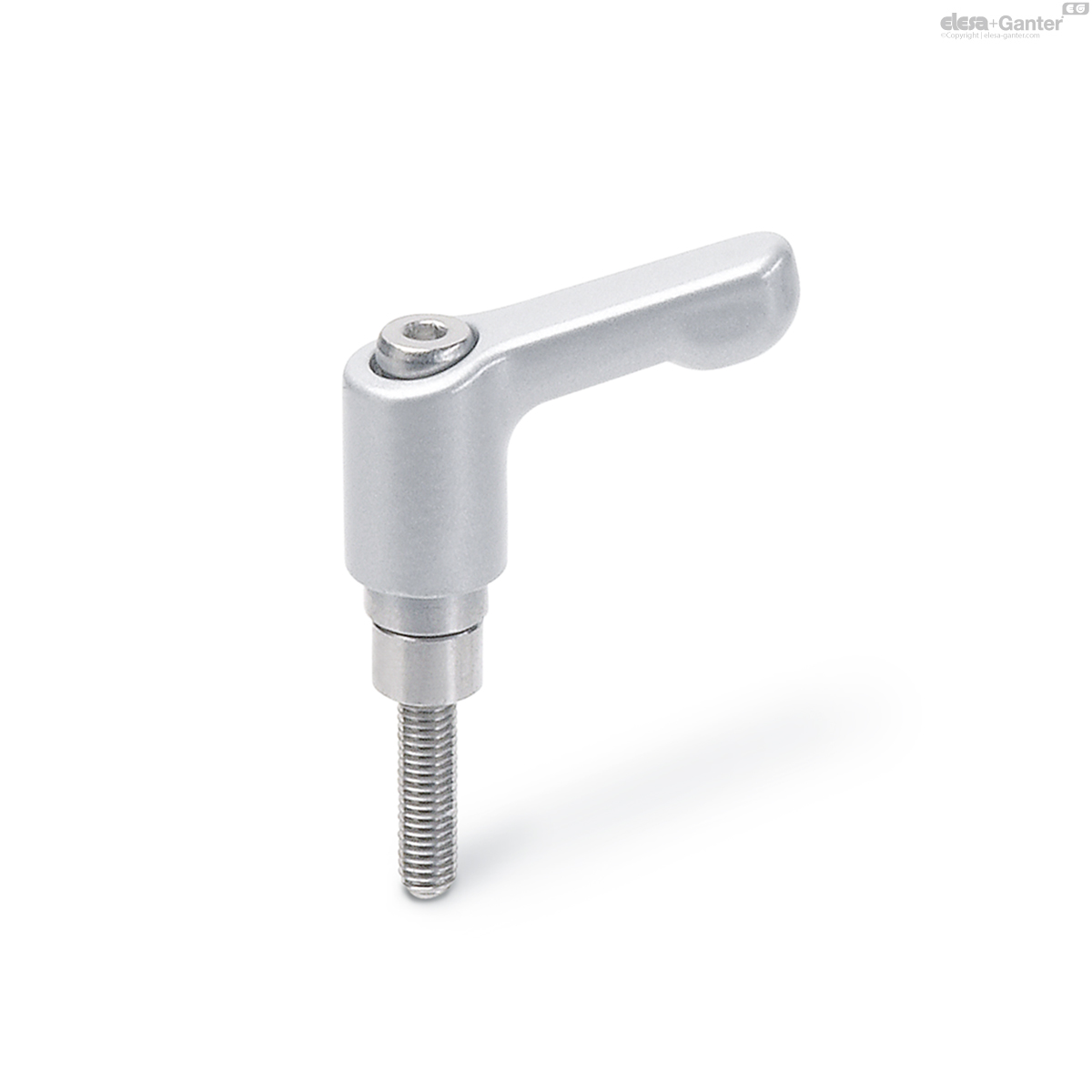

GN 511 Clamping lever kits
adjustable, for clamp mountings
Eta: 1-2 weeks All sizes and variants of GN 511
🔒 Prices, live stock & CAD downloads
Sign in to see your prices and stock, download CAD files and order directly online.
Sign in Request an account

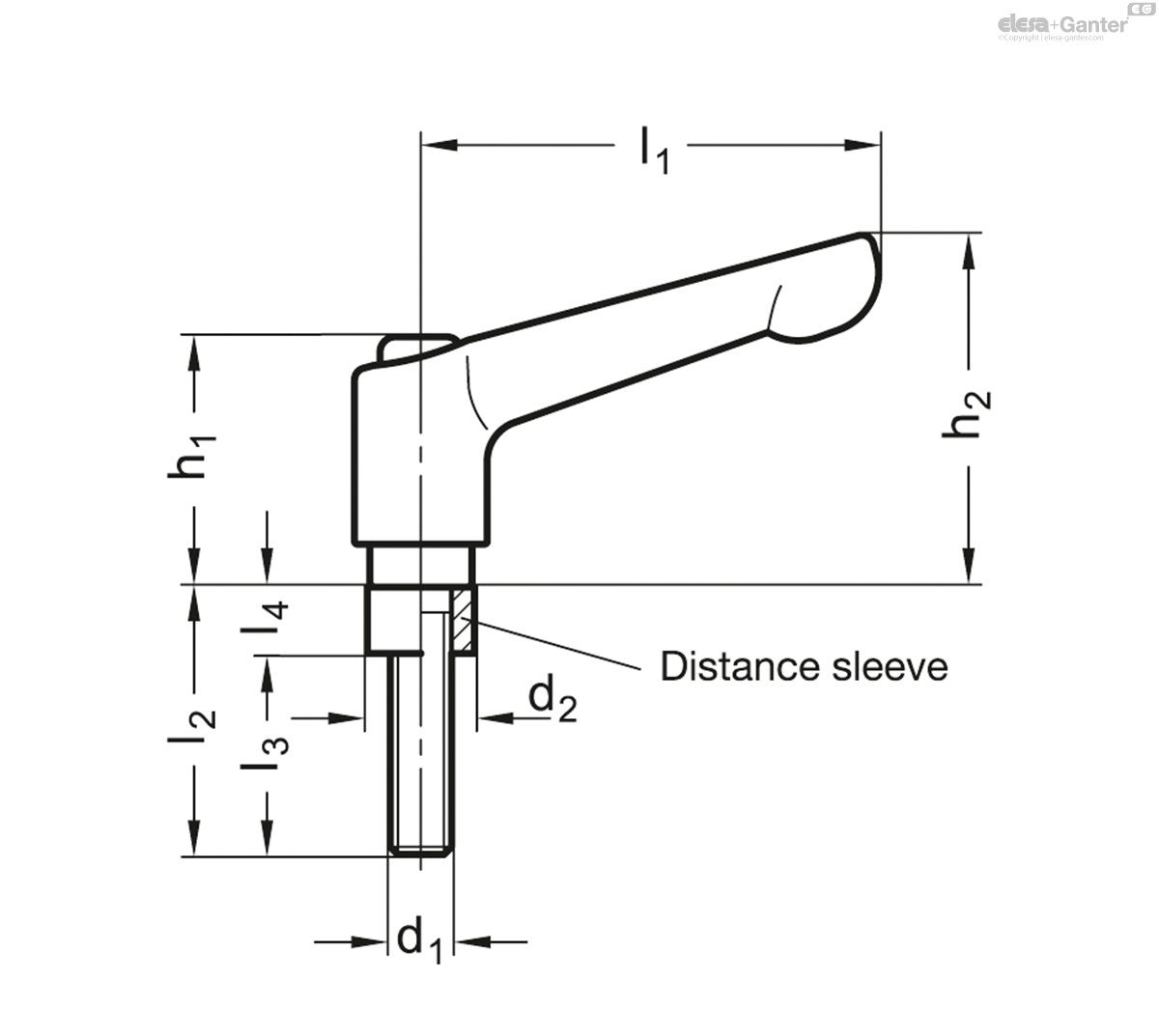

Technical datasheet
Technical data
- Catalogue
- GN 511-M4-20
- d1
- M 4
- l2
- 20
- d2
- 7.5
- l1
- 22
- l3
- 15.5
- l4
- 4.5
- h1
- 18.5
- h2
- 23
- 40
Handle
Zinc die casting
plastic coated
silver, RAL 9006, textured finish
Insert / Distance bushing
Stainless Steel AISI 303
For clamp mountings, the clamping kits GN 511 replace the hexagon socket screw DIN 912. It is used on all clamping points where repeated clamping actions are required, e.g. for adjusting a stop mechanism.
The matching clamping kits for each clamping thread are listed in the dimensional tables of the clamp mountings.
