GN 480 Flanged bolts
for clamp mountings
Eta: 1-2 weeks All sizes and variants of GN 480
🔒 Prices, live stock & CAD downloads
Sign in to see your prices and stock, download CAD files and order directly online.
Sign in Request an account
Technical datasheet
Technical data
- Catalogue
- GN 480-8-32
- d1 h9
- 8
- l1
- 32
- b
- 14
- d2
- 31.5
- d3
- M 4
- l2
- 6
- l3
- 2
- m
- 22
- 40
Steel zinc plated, blue passivated

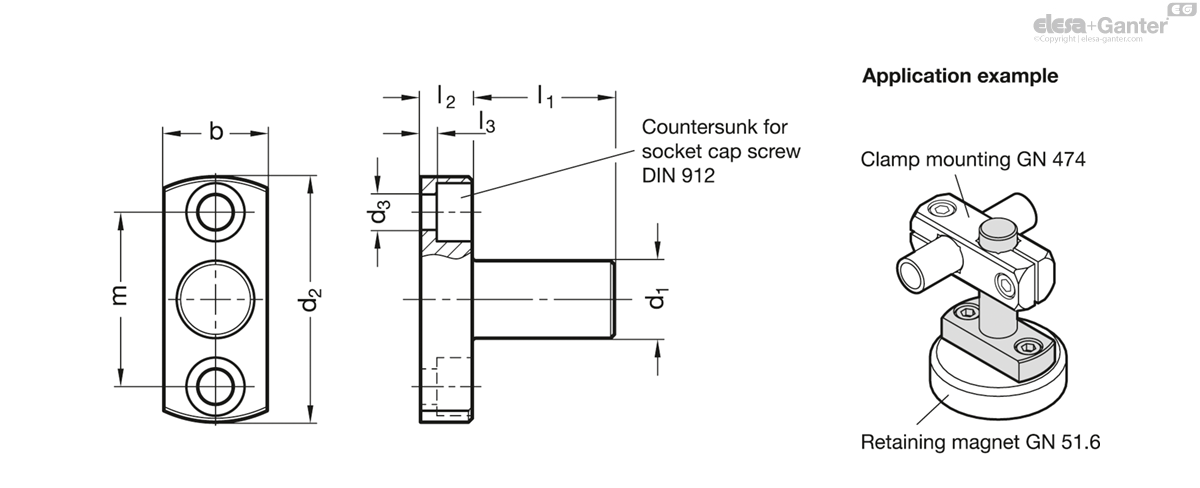

GN 480 Flanged bolts are used in connection with clamp mountings, as foot or as connecting element, e.g. for adjustments in width or height.
With their low flange height, they provide an alternative for the foot clamp mounting GN 473 in applications where clamping is required at low height above the clamping surface.
The bore distance m of the flanged bolts GN 480 is matched with the clamp mountings GN 473and GN 477 as well as with retaining magnets GN 51.6.
