436-28-B8-N-MT GN 436-N Without indicator point

436-28-B8-N-MT

GN 436-N Without indicator point

Stainless Steel
  • Icons/__logo__INOX__.png
  • Icons/__logo__RoHS__.png

Eta: 1-2 weeks All sizes and variants of GN 436

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 436-28-B8-N-MT
d1
28
d2 H8
B 8
d3
M 4
h
18
Length l
4
t min.
11
78

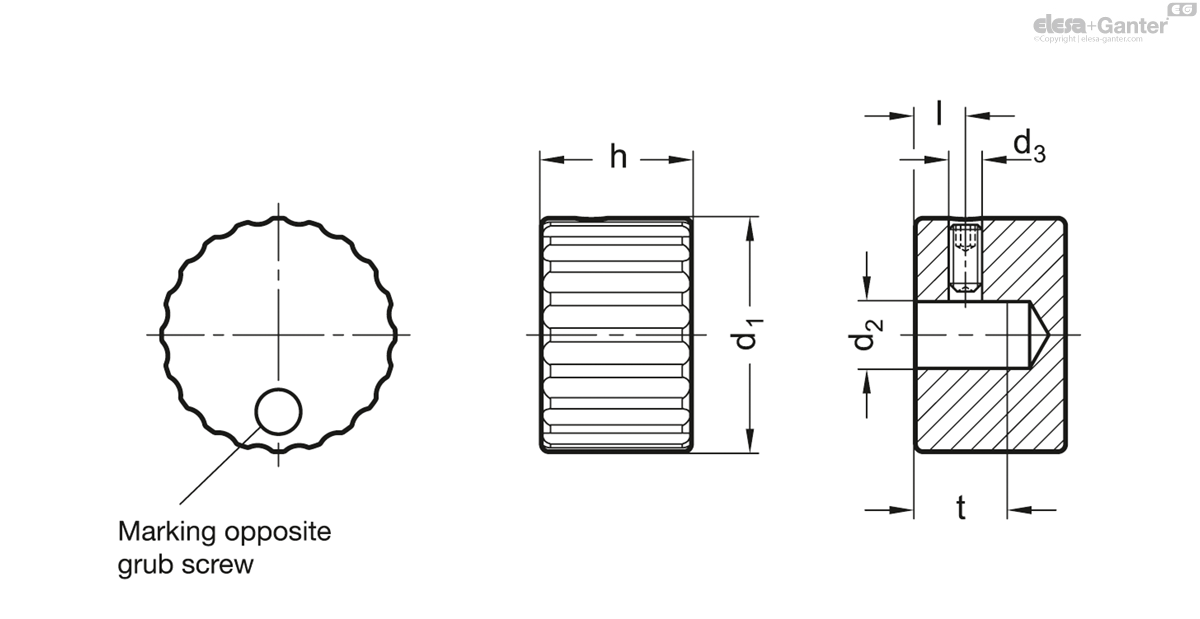

436-28-B8-N-MT drawing

Type

  • Type N: Without indicator point
  • Type M: With indicator point

Knob

Stainless steel AISI 304

  • Matte shot-blasted finish MT
  • Indicator point for type M
  • Laser-engraved

Grub screw DIN 916

Stainless steel

with internal hex and serrated point
