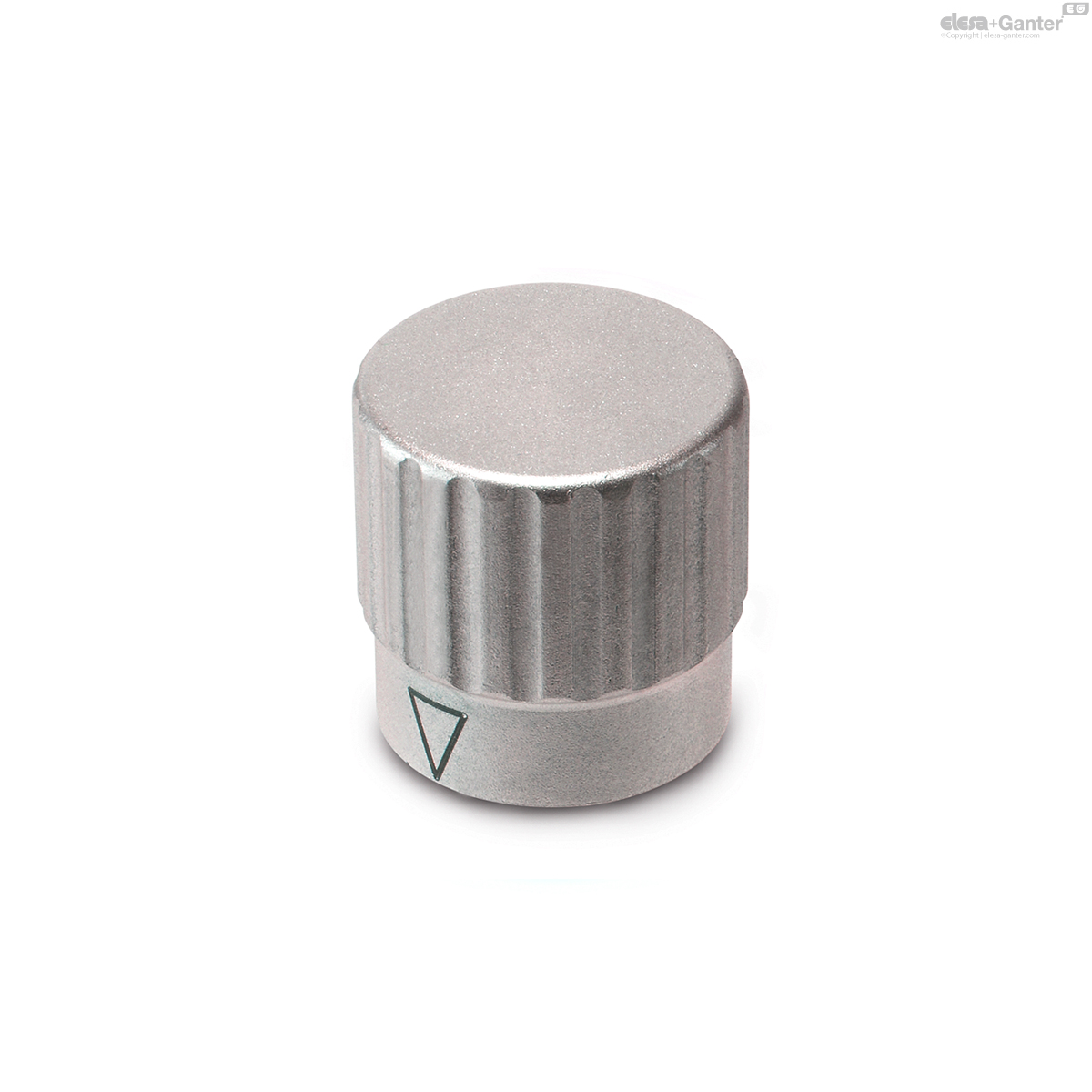

GN 436.1-A With arrow
Stainless Steel
Eta: 1-2 weeks All sizes and variants of GN 436.1
🔒 Prices, live stock & CAD downloads
Sign in to see your prices and stock, download CAD files and order directly online.
Sign in Request an account
Technical datasheet
Technical data
- Catalogue
- GN 436.1-24-B6-A-MT
- d1
- 24
- d2 H8 Bore
- B 6
- d3
- 22
- d4
- M 4
- h1
- 24
- h2
- 8
- Length l
- 12
- t min.
- 18
- 80
Type
Type
- Type A: With arrow
- Type B: Neutral, without arrow or scale
- Type S: With standard scale 0...9, 20 graduations
Knob
Knob
Stainless steel AISI 304
- Matte shot-blasted finish MT
- Arrow for type A
- Laser-engraved
- Scale for type S
- Laser-engraved
Grub screw DIN 916
Grub screw DIN 916
Stainless steel
with internal hex and serrated point
Scale and arrow on the control knobs GN 436.1 are indelibly marked and easily legible.
Besides the standard scale (type S) the control knobs can be supplied with any type of graduation.
Regarding design, numbering run, numbering position and numbering sequence of the scale please see the layout for scale knobs on the order sheet 'How to Order Graduations' .
- Special graduations (see „How to Order Graduations“)
