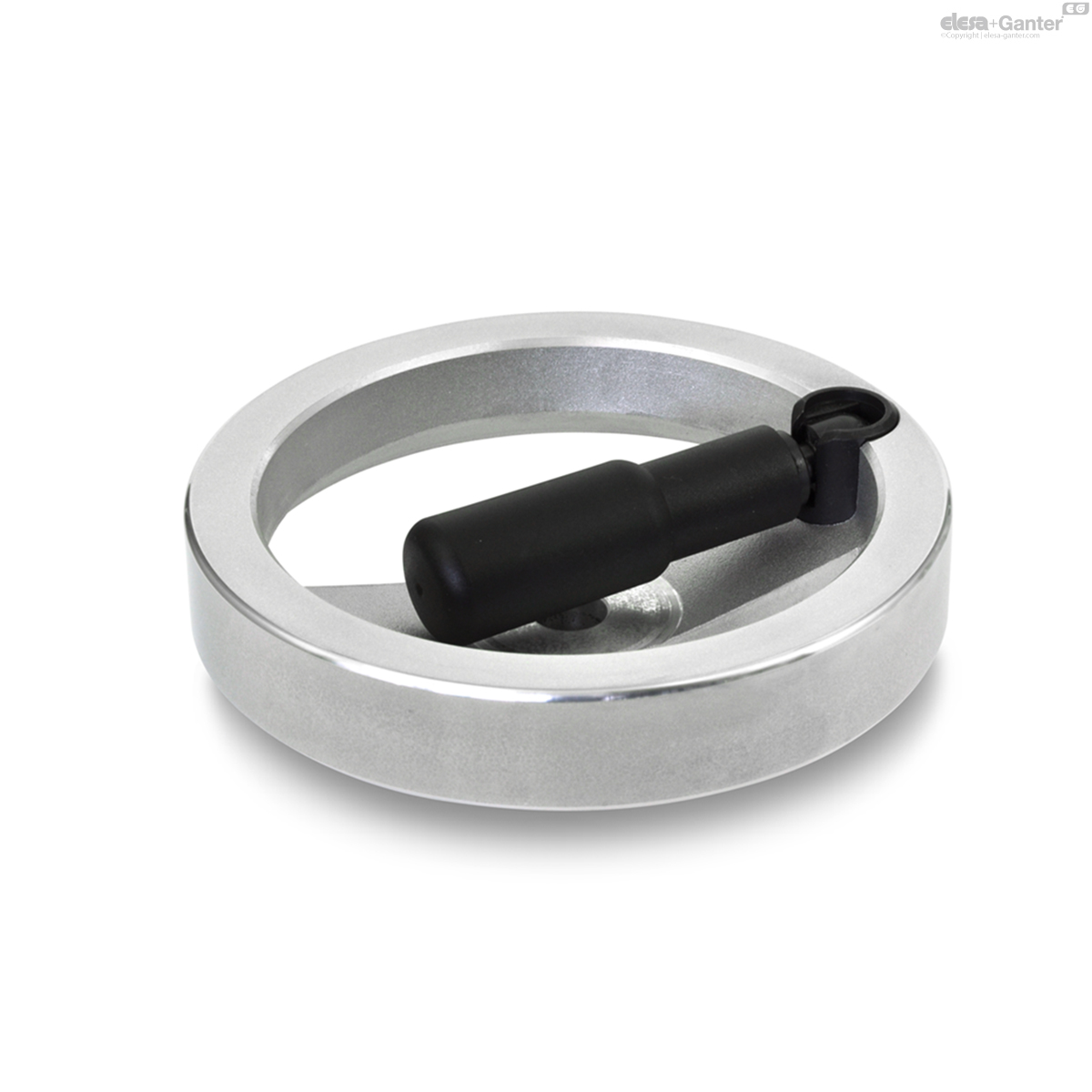

322.7-140-B14-R
GN 322.7-B Without keyway
Eta: 1-2 weeks All sizes and variants of GN 322.7
🔒 Prices, live stock & CAD downloads
Sign in to see your prices and stock, download CAD files and order directly online.
Sign in Request an account
Technical datasheet
Technical data
- Catalogue
- GN 322.7-140-B14-R
- d1
- 140
- d2H7 Bore
- 14
- b
- 24.5
- c
- 7
- d3
- 36
- l1
- 19
- l2
- 45.5
- l3
- 76.5
- r
- 57.5
- Ø Handle
- 24
- 548
Bore codes
Bore codes
- Version B: Without keyway
- Version K: With keyway DIN 6885-1 P9
Type
Type
- Type R: With revolving retractable handle
Wheel body
Wheel body
Aluminum
- Hub machined
- Wheel rim
- Turned on all sides
- High-polished
- Radial and axial runout < 0,4
- Unmachined body shot-blasted
Safety Retractable Handles GN 798.7
Safety Retractable Handles GN 798.7
Plastic, Polyamide (PA)
- Black, matte
- Retracting mechanism
- Steel
- Spindle, 1.0718, blackened
- Attachment part, sintered, blackened
Handwheels GN 322.7 are suitable for applications where the handle must not remain in the operating position.
In order to bring the handle into this position it has to be turned first through 90° to a stop against a torsion spring and then it is pushed against spring pressure into its hold position. By maintaining the forward thrust on the handle the handwheel can easily be rotated.
When releasing the handle the springs returns it back to the retracted position.
- GN 184 Countersunk Washers (for Axial Fixing)
