834-58-M10-D-MT GN 834 Wing Nuts

834-58-M10-D-MT

GN 834 Wing Nuts

  • Icons/__logo__INOX__.png
  • Icons/__logo__RoHS__.png

Eta: 1-2 weeks All sizes and variants of GN 834

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 834-58-M10-D-MT
d1
58
d2
M 10
d3
16
d4
10.5
b
7
h1
26.5
h2
7
t2
16
55

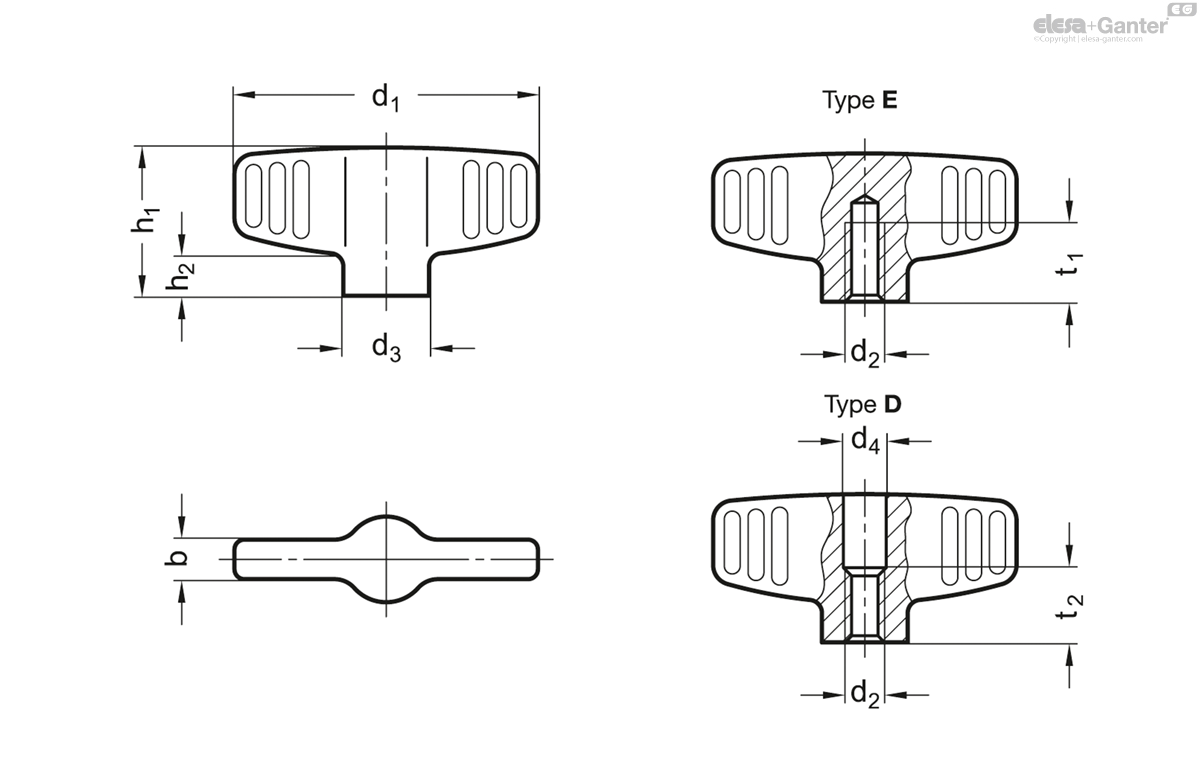

834-58-M10-D-MT drawing

Types

  • Type E: with threaded blind bore
  • Type D: with threaded through bore

Stainless Steel AISI CF-8 (Precision casting)

matt shot-blasted MT
