DVA.1-8-8-SST-M3-6-NK55 ( stainless steel )
DVA.1-SST Stainless steel base plate
Rubber and steel or stainless steel
In stock All sizes and variants of DVA.1
🔒 Prices, live stock & CAD downloads
Sign in to see your prices and stock, download CAD files and order directly online.
Sign in Request an account

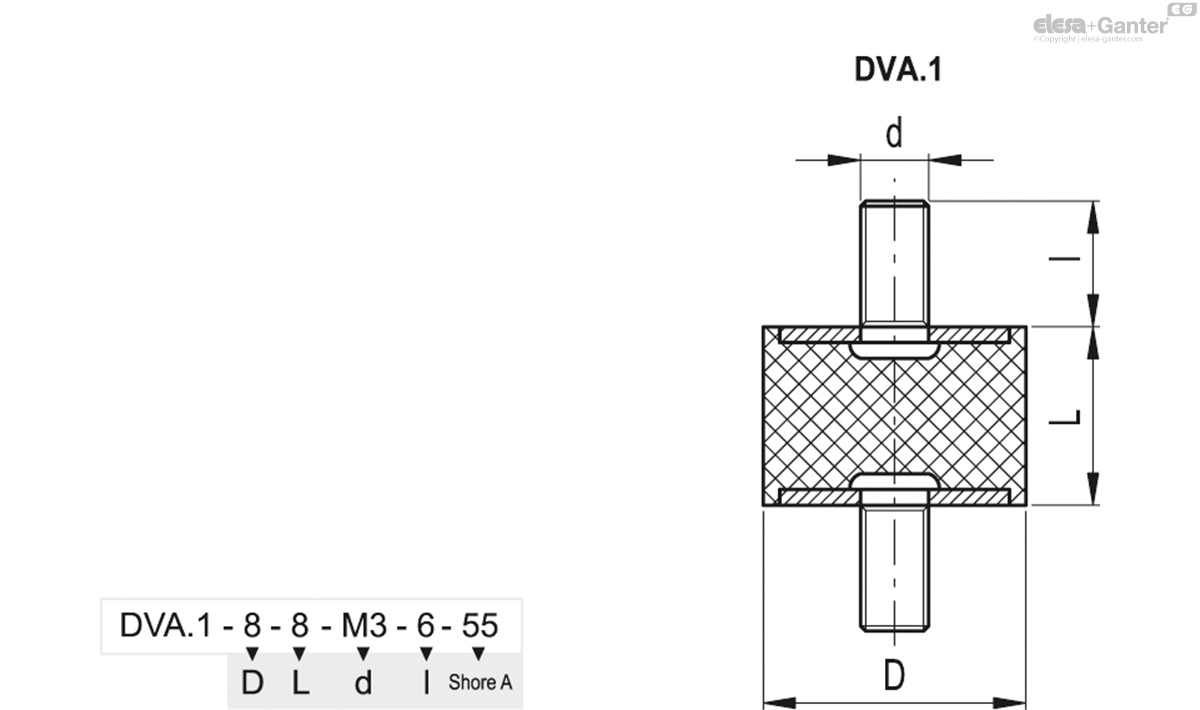

Technical datasheet
Technical data
- Catalogue
- 410001
- Description
- DVA.1-8-8-SST-M3-6-55
- D
- 8
- L
- 8
- d
- M3
- l
- 6
- Max. load
[N] - 85
- Max. deflection
[mm] - 2
- Stiffness
[N/mm] - 43
- 1
Standard executions
- DVA.1: threaded studs and base plate in polished zinc-plated steel, vibration-damper body in natural rubber NR, black colour, hardness 40, 55, 70 Shore A ±5.
- DVA.1-SST: threaded studs and base plate in INOX AISI 304 stainless steel, vibration-damper body in natural rubber NR, black colour, hardness 55 Shore A ±5.
Features and applications
The rubber buffers have been designed to damp vibrations, shocks and noises produced by moving bodies or non-balanced vibrating masses of equipment and machines which can cause:
- malfunctioning and reduction of the machine lifespan and/or of the adjacent ones;
- damage to health;
- noise.
Load diagrams for each single code are available on request.
Special executions on request
Natural rubber NR, hardness 40, 70 tolerance ±5 Shore A for executions with AISI 304 stainless steel base.
