6322-10-7-B GN 6322 Workholding bolts

6322-10-7-B

GN 6322 Workholding bolts

with ball-type shoulder
  • Icons/__logo__RoHS__.png

Eta: 1-2 weeks All sizes and variants of GN 6322

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 6322-10-7-B
d1 g6
10
d2 n6
7
d3 -0.01/-0.05
10
d4
M 3
h1
10
h2
2.5
l
7
t
6
r
2.5
7

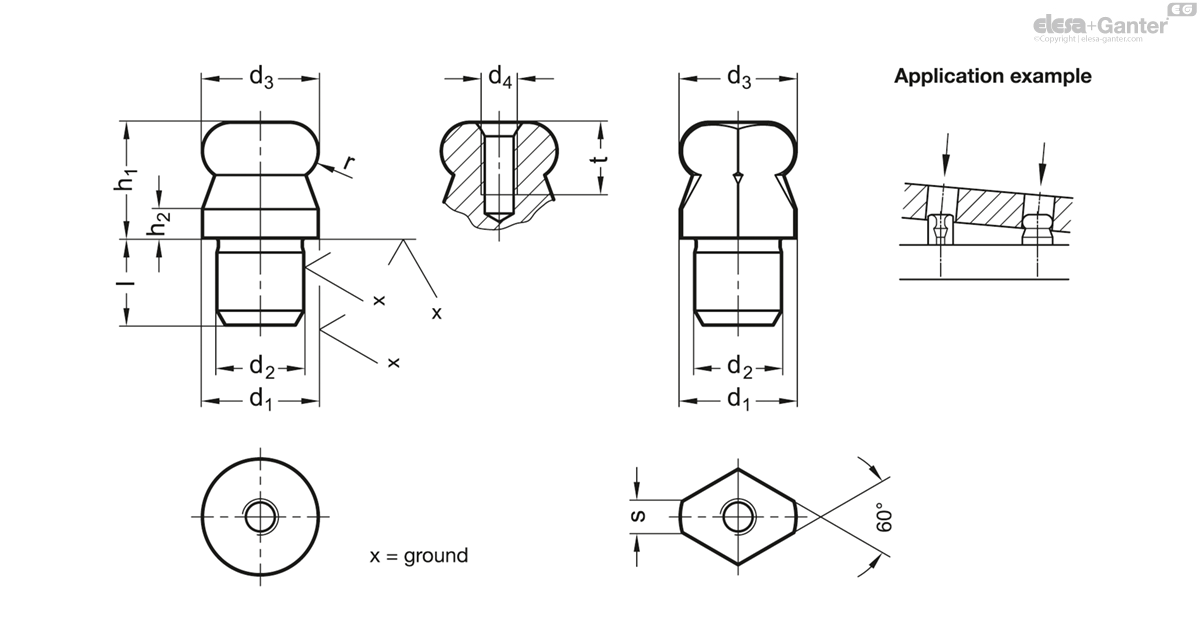

6322-10-7-B drawing

Types

  • Type B: Workholding bolt cylindrical
  • Type C: Workholding bolt flattened

Steel

hardened

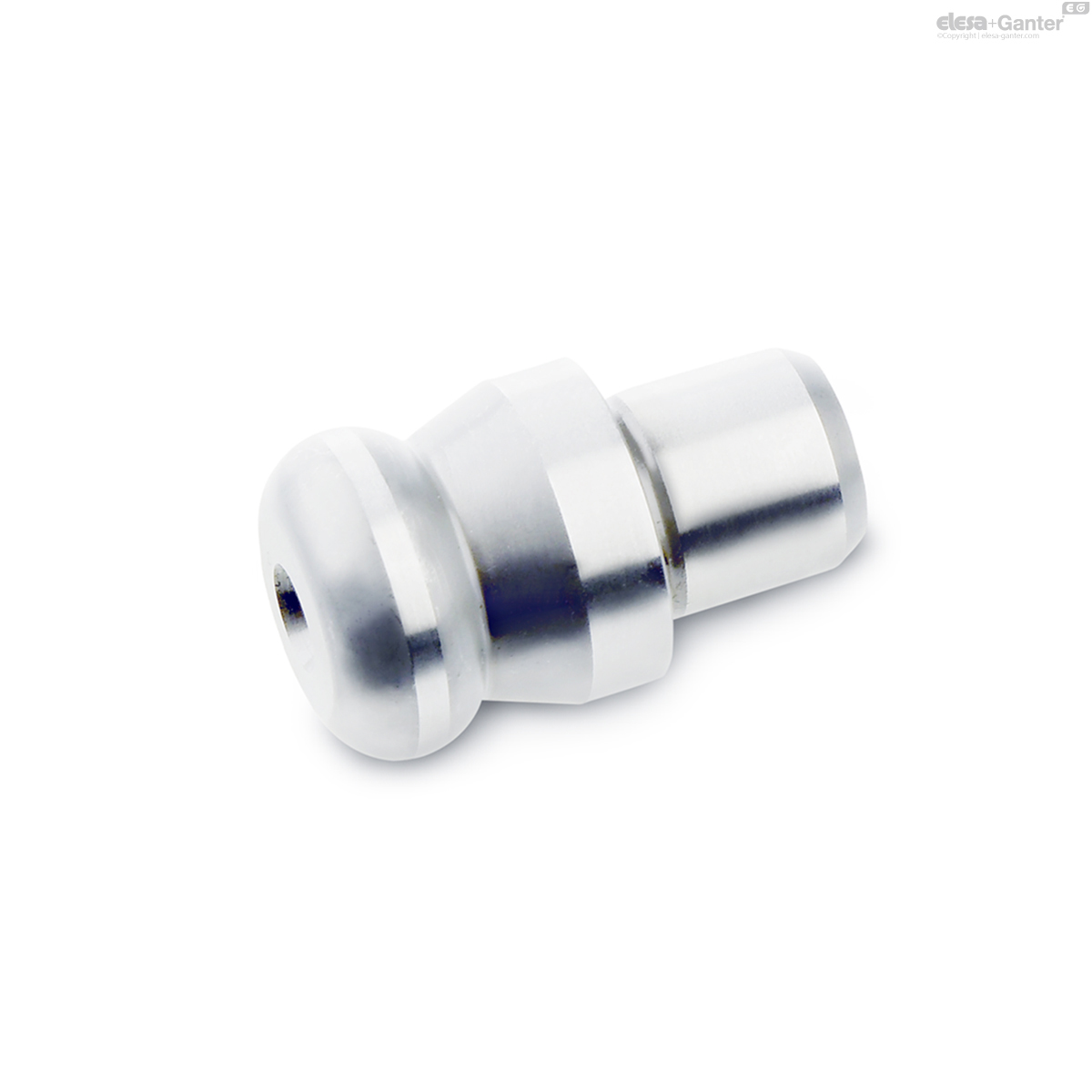

Workholding bolts GN 6322 are used for positioning in bores, with the ball-type shoulder facilitating the insertion into the bore.

The flattened design (Form C) helps to compensate tolerances in the spacing of two bores. Another application of this design is to fix parts to be positioned in one direction only.
