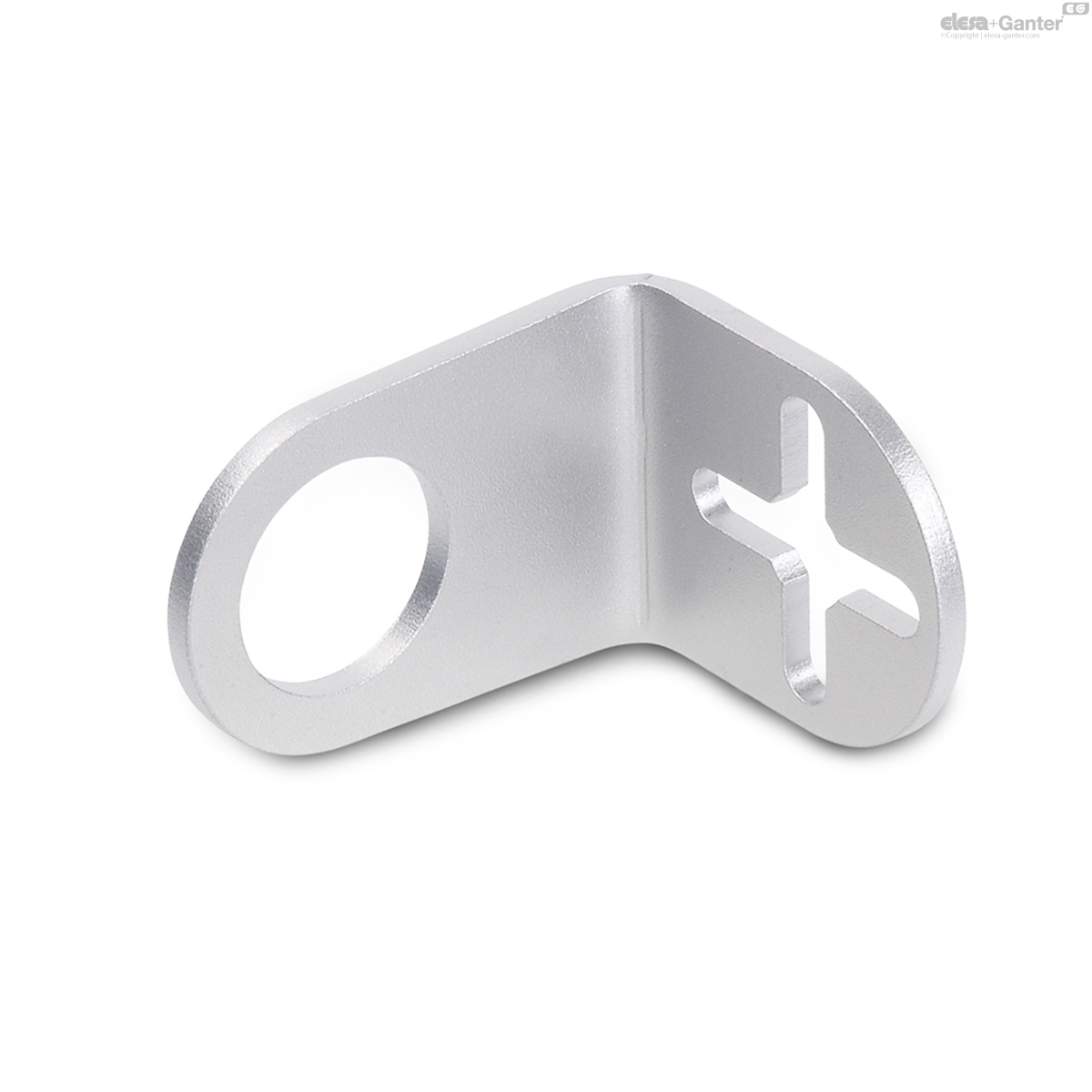

479-B18-30 GN 479 Sensor holders

479-B18-30

GN 479 Sensor holders

for clamp mountings with threaded holes GN 478 / GN 484
  • Icons/__logo__INOX__.png
  • Icons/__logo__RoHS__.png

Eta: 1-2 weeks All sizes and variants of GN 479

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 479-B18-30
d
B 18
k
30
30

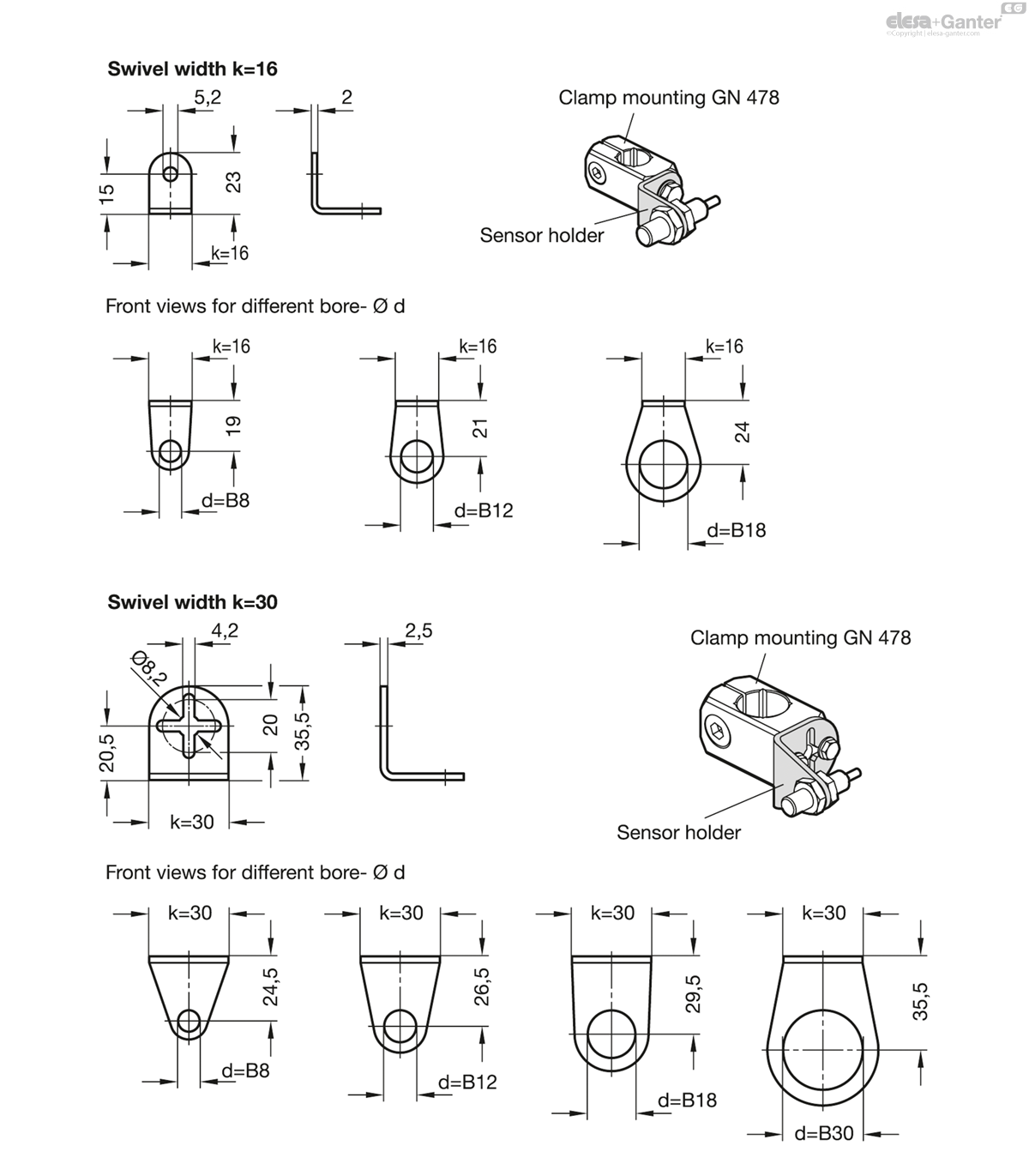

479-B18-30 drawing

Stainless Steel AISI 303

matt-shot blasted

The sensor holders GN 479 are designed for holding sensors attached with two lock nuts.

The attachment bore matches the central thread of clamp mountings  GN 478 GN 484  and attachment clamp mountings GN 478 GN 484  . For k=30, the cross-shaped slotted holes provide extra adjustability and allow the use of two fixing screws.

Fixing screws have to be ordered separately.
