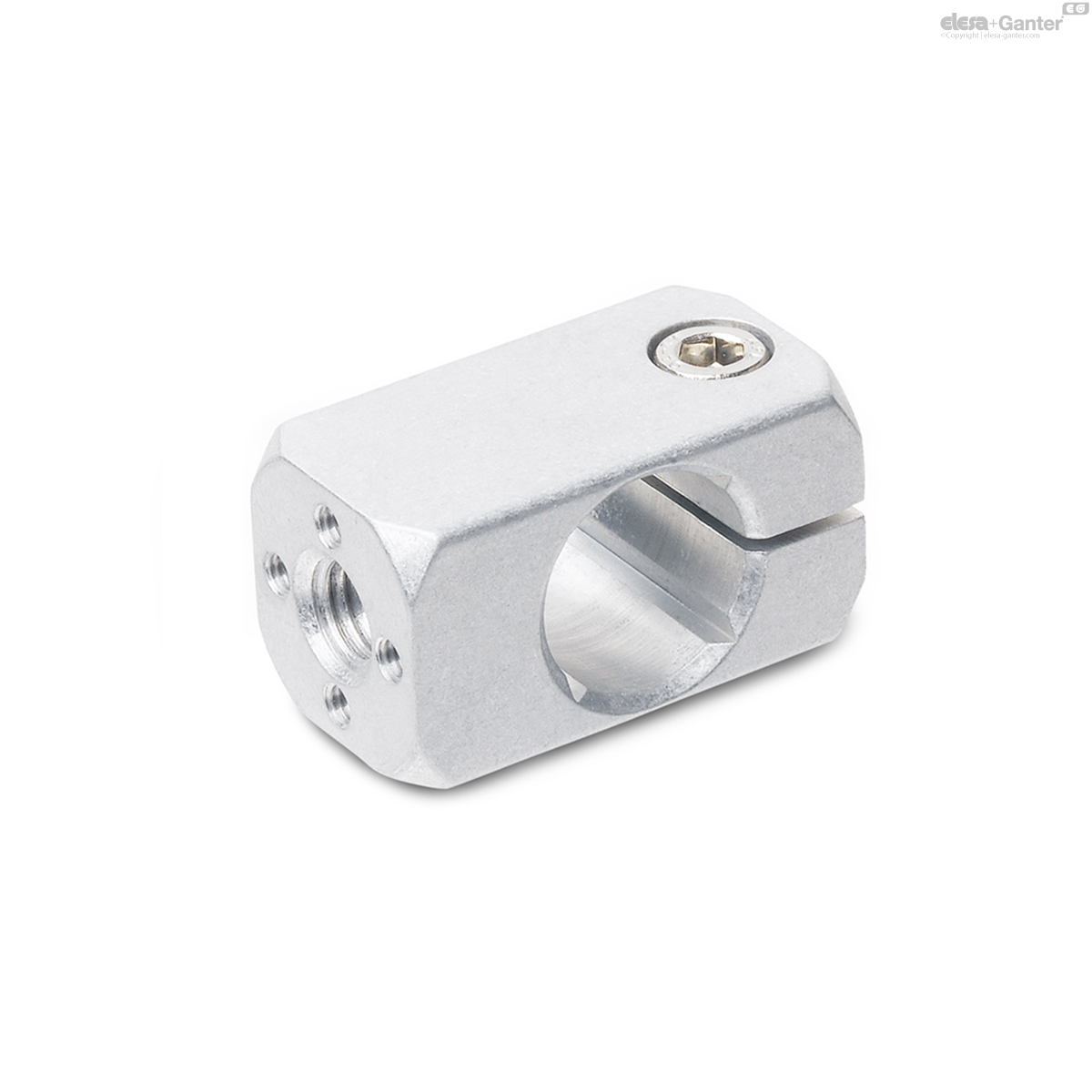

478-B15-M6-MT GN 478 Clamp mountings

478-B15-M6-MT

GN 478 Clamp mountings

Aluminium
  • Icons/__logo__RoHS__.png

Eta: 1-2 weeks All sizes and variants of GN 478

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 478-B15-M6-MT
d1
Bore for shaft tolerance h11
B 15
d2
M 6
d3
M 6
k
20
m
14
l1
40
l2
20.5
l3
12
s
12
Clamping kits for d3
GN 511-M6-20
32
478-B15-M6-MT drawing

Aluminium

  • matt, slide ground MT
  • anodized, black ELS

Socket cap screw DIN 912

Stainless Steel AISI 304

Clamping kits GN 511

  • Zinc die casting
  • Inserts / Distance bushings, Stainless Steel AISI 303

Attachment clamp mountings GN 478 are primarily designed for mounting sensor holders GN 479 and retaining plates GN 479.1. They are fitted with a central thread and with d1 = B15 bore and higher, an additional bore template 4 x M4.

The standard clamping screw is a socket cap screw with hexagonal socket DIN 912. It can be replaced by an clamping kit GN 511  (see table of dimensions).
