477-B8-MT GN 477 Clamp mountings

477-B8-MT

GN 477 Clamp mountings

Aluminium
  • Icons/__logo__RoHS__.png
  • Icons/__logo__profile__.png

Eta: 1-2 weeks All sizes and variants of GN 477

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 477-B8-MT
d1
Bore for shaft tolerance h11
B 8
d2 For screw
M 4
k
14
l1
31.5
l2
10
m
22
Clamping kits for d2
GN 511-M4-20
11

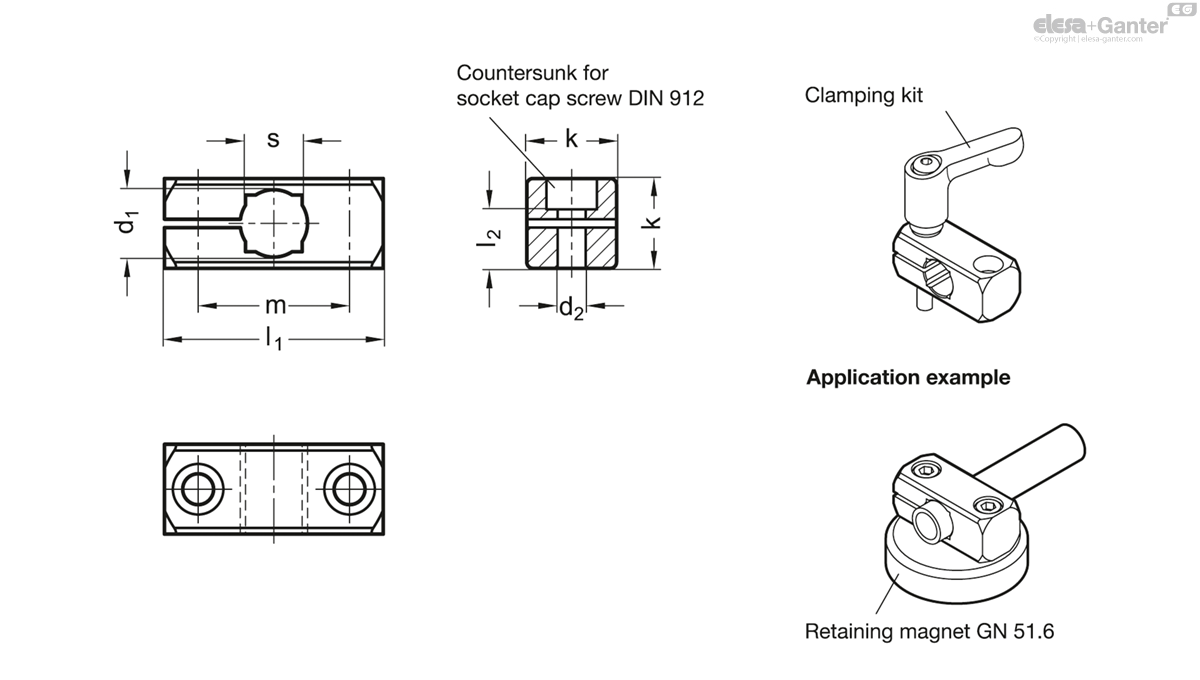

477-B8-MT drawing

Aluminium

  • matt, slide ground MT
  • anodized, black ELS

Clamping kits GN 511

Zinc die casting

Inserts / Distance bushings

Stainless Steel AISI 303

The clamp mountings GN 477 have no thread. Fixing or clamping is made via two threads on the attachment side.

The bore distance m of the clamp mountings GN 477 is matched with the foot clamp mountings GN 473  and the flanged bolts GN 480  as well as retaining magnets GN 51.6 .
