473-B15-MT GN 473 Base plate clamp mountings

473-B15-MT

GN 473 Base plate clamp mountings

Aluminium
  • Icons/__logo__RoHS__.png
  • Icons/__logo__profile__.png

In stock All sizes and variants of GN 473

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 473-B15-MT
d1
Bore for shaft tolerance h11
B 15
b1
20
b2
41
d2
45
d3
M 6
d4
M 6
l1
30
l2
10
l3
10
l4
4
m
32
s
12
Clamping kits for d3
GN 511-M6-20
50
473-B15-MT drawing

Aluminium

  • matt, slide ground MT
  • anodized, black ELS

Socket cap screws DIN 912

Stainless Steel AISI 304

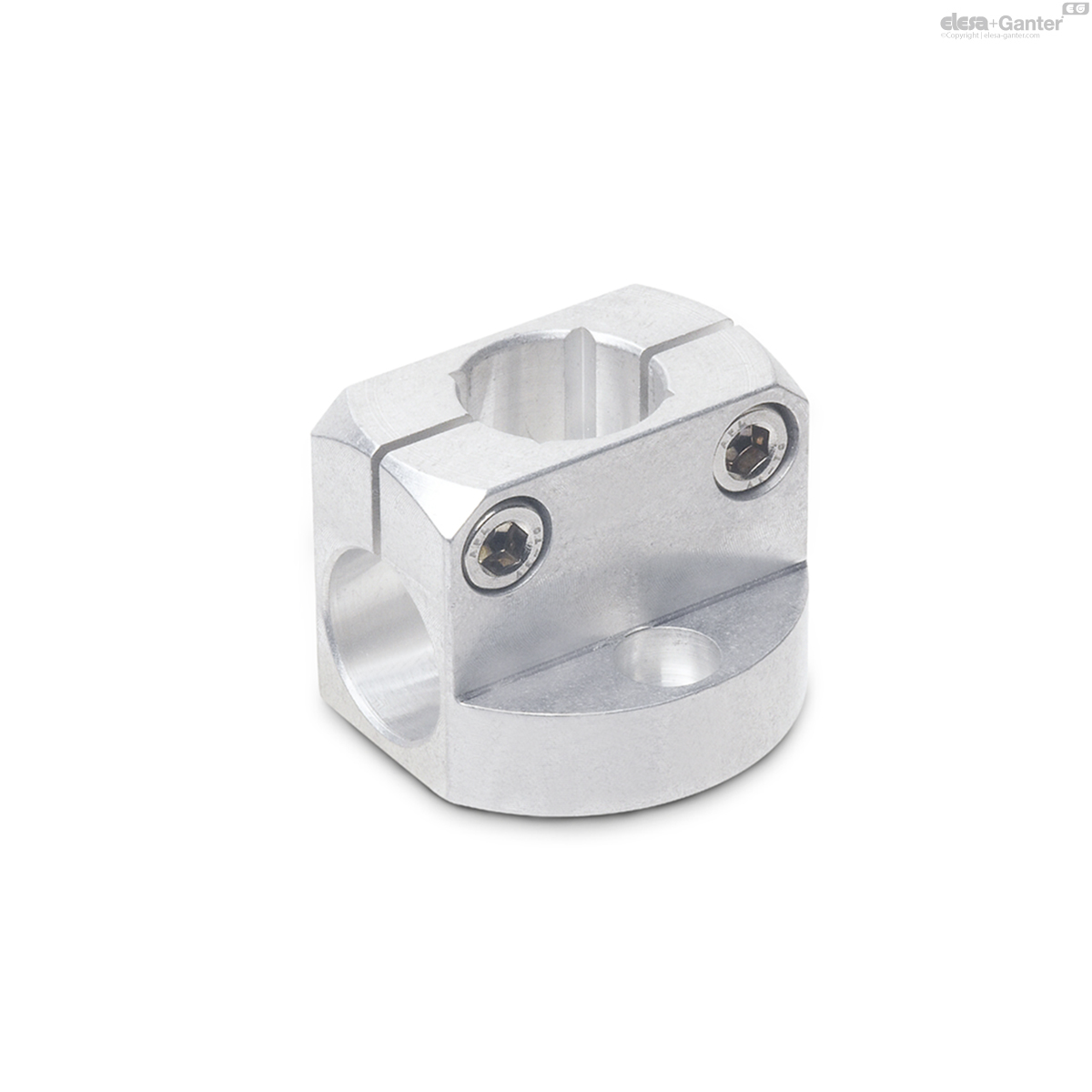

The base plate clamp mountings GN 473 have a horizontal and a vertical clamping bore. The vertical clamping bore is additionally fitted with a square.

The bore distance m of the base plate mountings GN 473 is matched with the clamp mountings  GN 477  and the flanged bolts GN 480  as well as retaining magnets GN 51.6

The standard version of the clamping screw is a socket cap screw with hexagonal socket DIN 912. It can be replaced by an adjustable clamping lever GN 511  (see table of dimensions).
