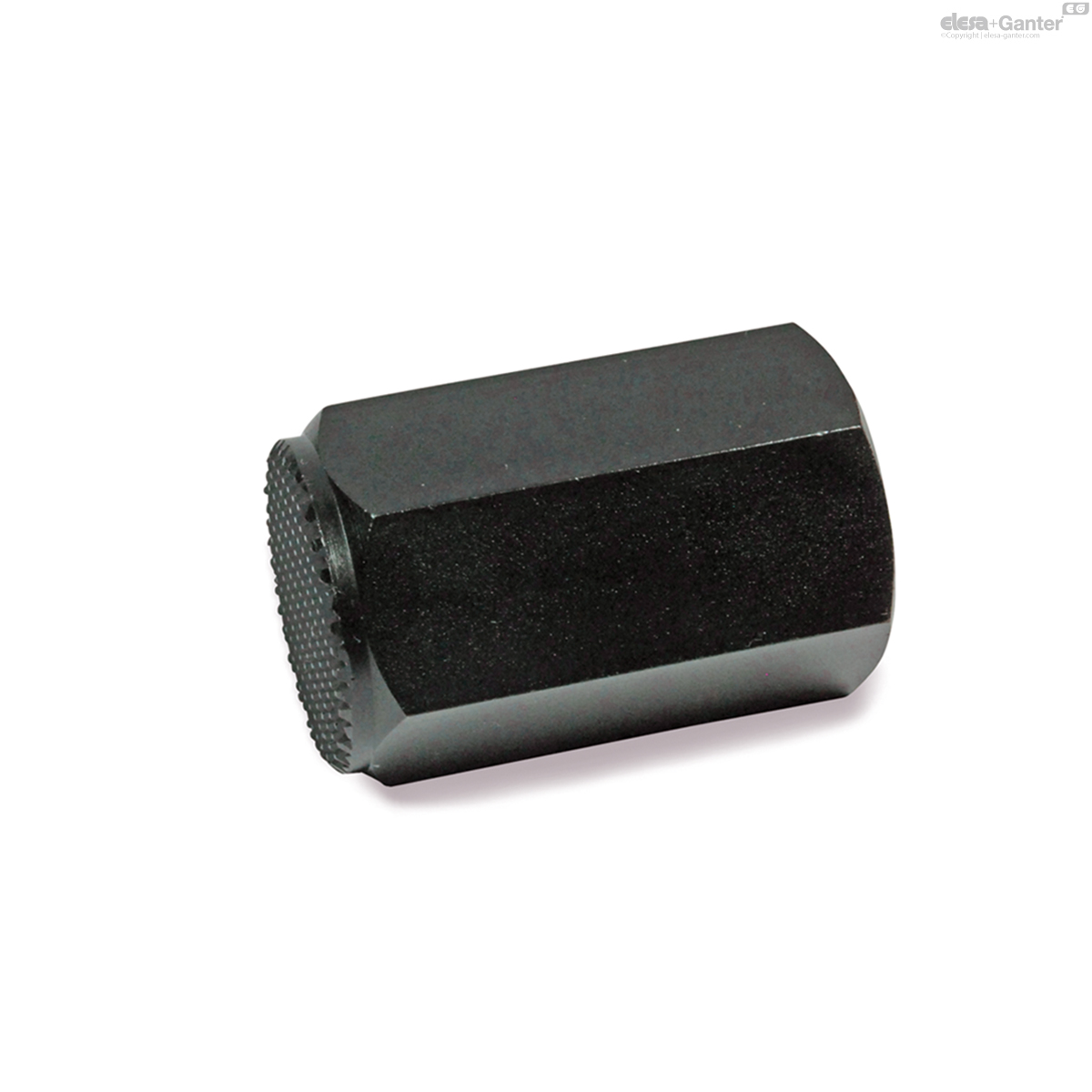

409.2-15-M8-K GN 409.2 Positioning elements

409.2-15-M8-K

GN 409.2 Positioning elements

with female thread
  • Icons/__logo__RoHS__.png

Eta: 1-2 weeks All sizes and variants of GN 409.2

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 409.2-15-M8-K
h ±0.1
15
d1
M 8
t min.
6
A/F
17
e
19.4
25
409.2-15-M8-K drawing

Types

  • Type B: Smooth contact face
  • Type K: Spherical contact face
  • Type R: Serrated contact face

Steel

  • hardened
  • blackened

Positioning elements GN 409.2 with male thread are designe for use as locating plungers, stops and thrust blocks.
