111-320-18
GN 111 Ball Chains
Brass, with Two Key Rings
Eta: 1-2 weeks All sizes and variants of GN 111
🔒 Prices, live stock & CAD downloads
Sign in to see your prices and stock, download CAD files and order directly online.
Sign in Request an account

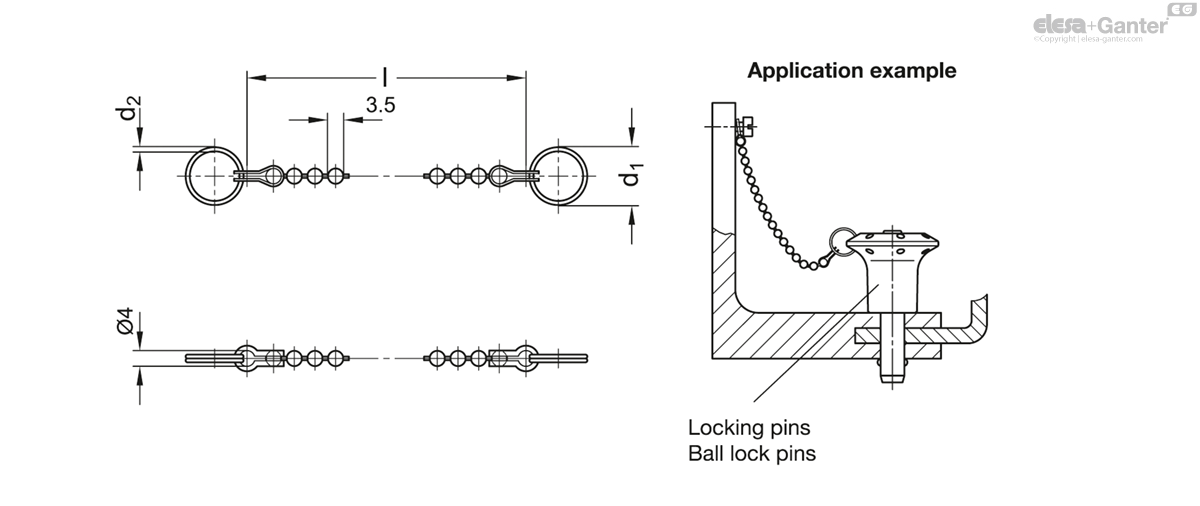

Technical datasheet
Technical data
- Catalogue
- GN 111-320-18
- l ±3
- 320
- d1
- 18
- d2
- 1.3
- Static load in N ≈
with key ring - 90
- Static load in N ≈
without key ring - 180
- 11
Ball chain
Brass
Nickel plated
Key ring
Stainless steel AISI 301
Ball chains GN 111 are mainly used in connection with ball lock pins and locking pins with axial lock.
The ball chains lack any amount of stiffness due to their design.
The key rings are supplied unmounted. Both rings have the same Ø d1.
The details on static loads are guide values given without warranty.
| Ideal suitable for ball lock pins and locking pins with axial lock with pins Ø: | ||||||||||
| d1 | GN 113.1, GN 113.3, GN 113.4, GN 113.7, GN 113.8, GN 113.9, GN 113.10 | GN 113.5, GN 113.6 | GN 113.11, GN 113.12 | GN 114.2, GN 114.3, GN 114.6 | GN 114.7, GN 114.8 | GN 114.11, GN 114.12 | GN 124.1, GN 124.2 | GN 124.3 | GN 214.2, GN 214.3, GN 214.6 | GN 314 |
| 14 | 5 / 6 / 8 | all | 5 / 6 / 8 / 10 | all | 6 / 8 | 6 / 8 / 10 / 12 | all | 2024-10-08 | 6 / 8 | - |
| 18 | 10 / 12 / 16 / 20 / 25 | - | 12 / 16 | - | 10 / 12 / 16 / 20 | 16 / 20 | - | 10 / 12 | 10 / 12 / 16 / 20 / 25 | 8 / 10 / 12 |
| 24 | - | - | 20 / 25 | - | - | - | - | - | - | 16 / 20 |
| 30 | - | - | - | - | - | - | - | - | - | - |
- Key Rings GN 111.3
