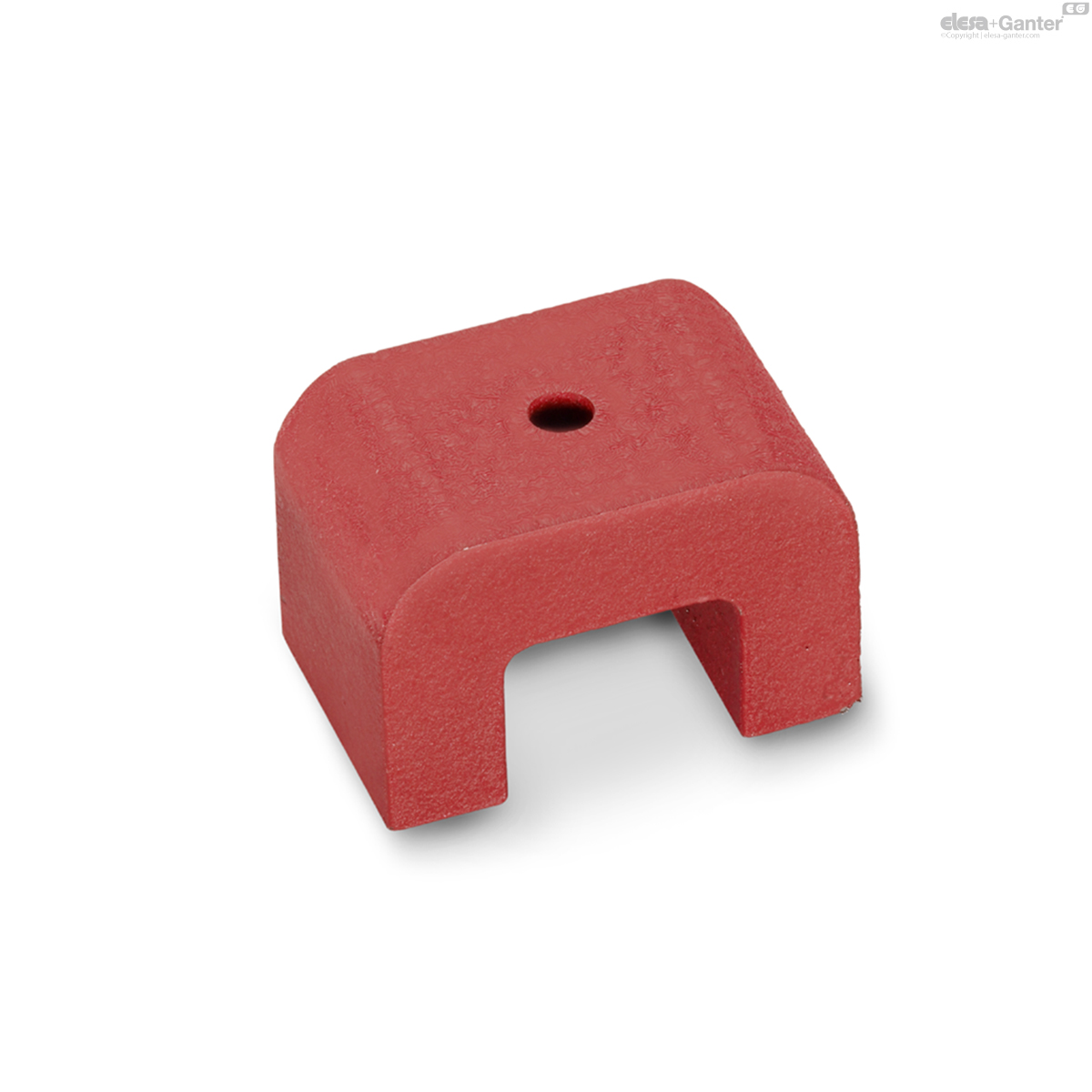

62-AN-45 GN 62 U-Magnets

62-AN-45

GN 62 U-Magnets

with bore
  • Icons/__logo__RoHS__.png

Eta: 1-2 weeks All sizes and variants of GN 62

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 62-AN-45
b1
45
b2
30
d
5.2
h1
30
h2
17
s
22
Nominal adhesive forces in N
120
167

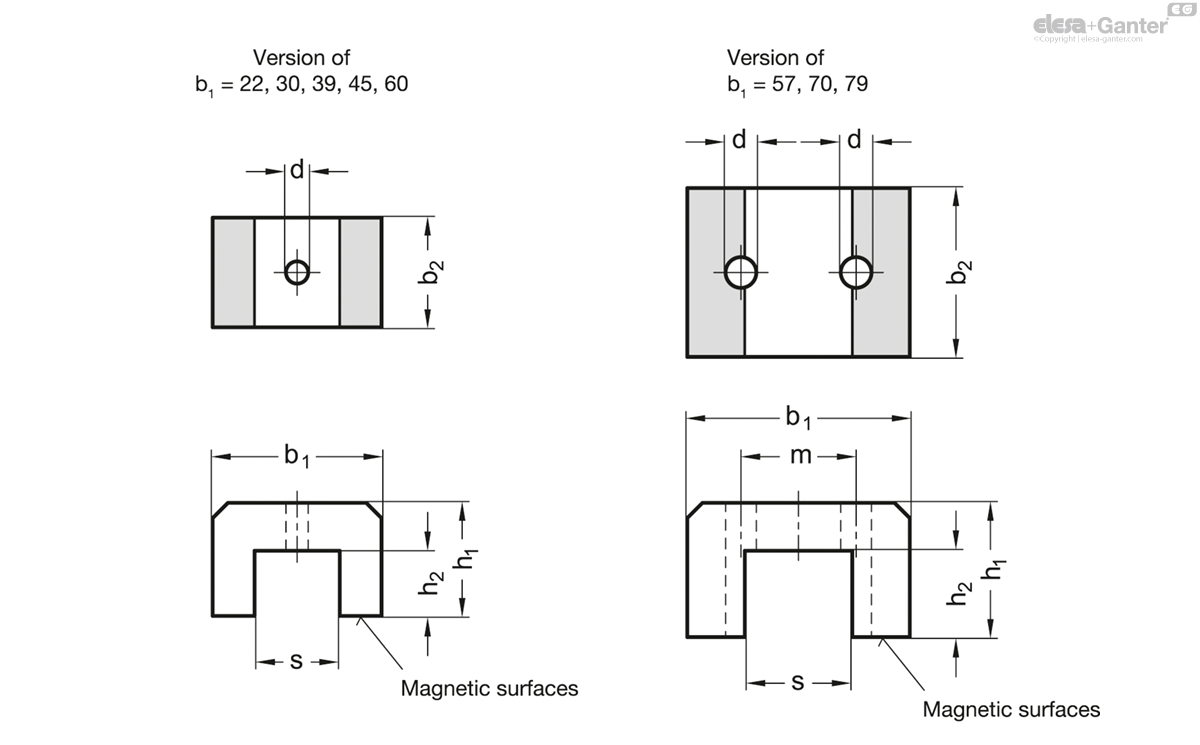

62-AN-45 drawing

Material of the magnet

AlNiCo AN

Aluminium, nickel, cobalt

temperature resistant up to 450 °C

Lacquering red

temperature resistant up to 180 °C

U-magnets GN 62 are unshielded magnets with a split magnetic surface that are manufactured by casting. Their usage temperature is largely limited by the red lacquering. For higher temperatures, blank U-magnets are available on request.

To avoid negatively impacting the magnetic properties, the fastening screws should be made of a non-magnetic material such as stainless steel, brass or plastic.

For easier handling and to avoid demagnetization, a galvanized iron plate protects the magnetic surface of the magnet during storage and transport.

blank, temperature resistant up to 450 °C
