60-AN-25 GN 60 Button-type magnets

60-AN-25

GN 60 Button-type magnets

with bore
  • Icons/__logo__RoHS__.png

Eta: 1-2 weeks All sizes and variants of GN 60

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 60-AN-25
d1 Nominal dimension
25
d1
Actual dimension
25.4
d2
4.5
d3 max.
8.5
h
20
s
5.6
t
8
Nominal adhesive forces in N
40
72

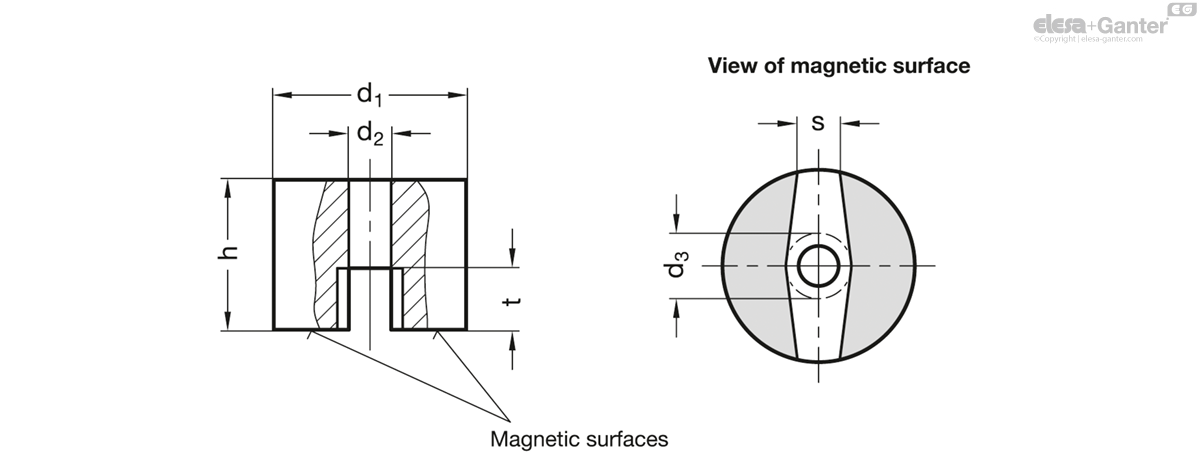

60-AN-25 drawing

Material of the magnet

AlNiCo AN

Aluminium, nickel, cobalt

(temperature resistant up to 450 °C)

Lacquering red

temperature resistant up to 180 °C

Button-type magnets GN 60 are unshielded magnets with a split magnetic surface that are manufactured by casting. Their usage temperature is largely limited by the red lacquering. For higher temperatures, blank button-type magnets are available on request.

To avoid negatively impacting the magnetic properties, the fastening screws should be made of a non-magnetic material such as stainless steel, brass or plastic.

For easier handling and to avoid demagnetization, a galvanized iron plate protects the magnetic surface of the magnet during storage and transport.

  • blank, temperature resistant up to 450 °C
