50.25-HF-32-7-M5 GN 50.25 Stainless Steel-Retaining magnets

50.25-HF-32-7-M5

GN 50.25 Stainless Steel-Retaining magnets

disc-shaped, with female thread
  • Icons/__logo__INOX__.png
  • Icons/__logo__RoHS__.png

Eta: 1-2 weeks All sizes and variants of GN 50.25

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 50.25-HF-32-7-M5
d1
32 ±0.1
d2
M 5
d3
8
h
7 +0.3/-0.1
l
9
t
9
Nominal adhesive forces in N
64
31

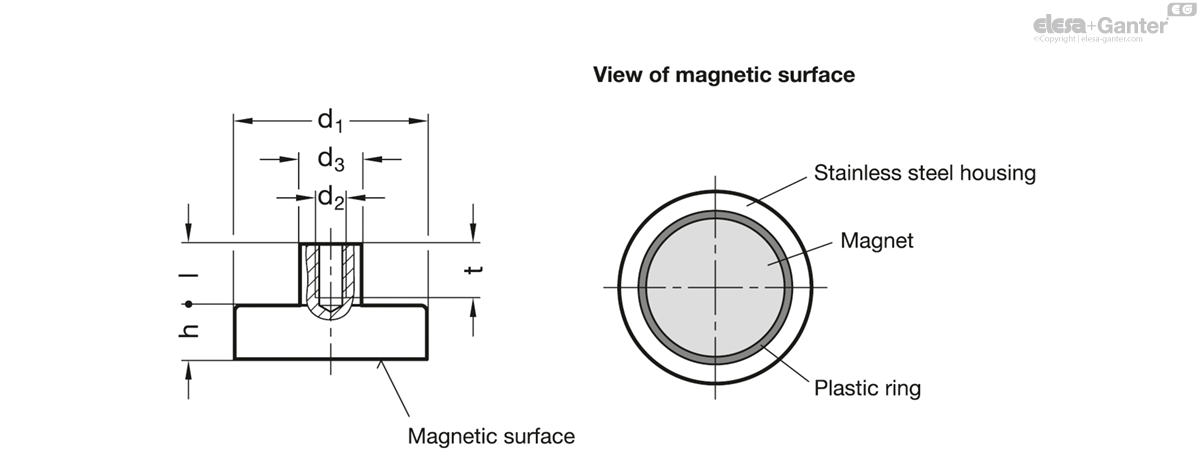

50.25-HF-32-7-M5 drawing

Housing / threaded bushing

Stainless Steel

Material of the magnet:

Hard ferrite HF

temperature resistant up to 220 °C

Stainless Steel-Retaining magnets GN 50.25 are a shielded magnetic system.

Owing to the lower magnetic conductivity of the stainless steel housing, the adhesive forces are lower than in steel.
