50.1-HF-10-4,5 GN 50.1 Retaining magnets

50.1-HF-10-4,5

GN 50.1 Retaining magnets

disc-shaped, without thread
  • Icons/__logo__RoHS__.png

Eta: 1-2 weeks All sizes and variants of GN 50.1

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 50.1-HF-10-4,5
d
10 ±0.1
h
4.5 +0.2/-0.1
Nominal
magnetic forces
in N
4
2

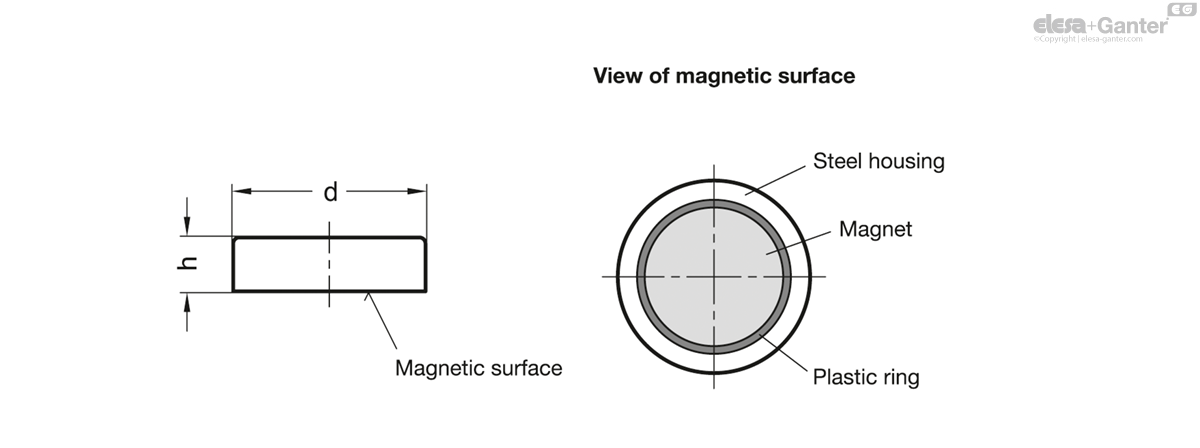

50.1-HF-10-4,5 drawing

Housing

Steel, zinc plated

Materials of the magnet:

Hard ferrite HF

temperature resistant up to 200 °C

SmCo SC

Samarium, cobalt

temperature resistant up to 200 °C

NdFeB ND

Neodymium, iron, boron

temperature resistant up to 80 °C

Retaining magnets GN 50.1 are combined with a steel housing and a plastic ring into a system that shields and strengthens the magnet for optimal transmission of the magnetic flux onto the magnetic surface.

The retaining magnets are easy to fasten securely by side clamping, e.g. with a grub screw GN 913.2 .
