911-63-M8-35-SR

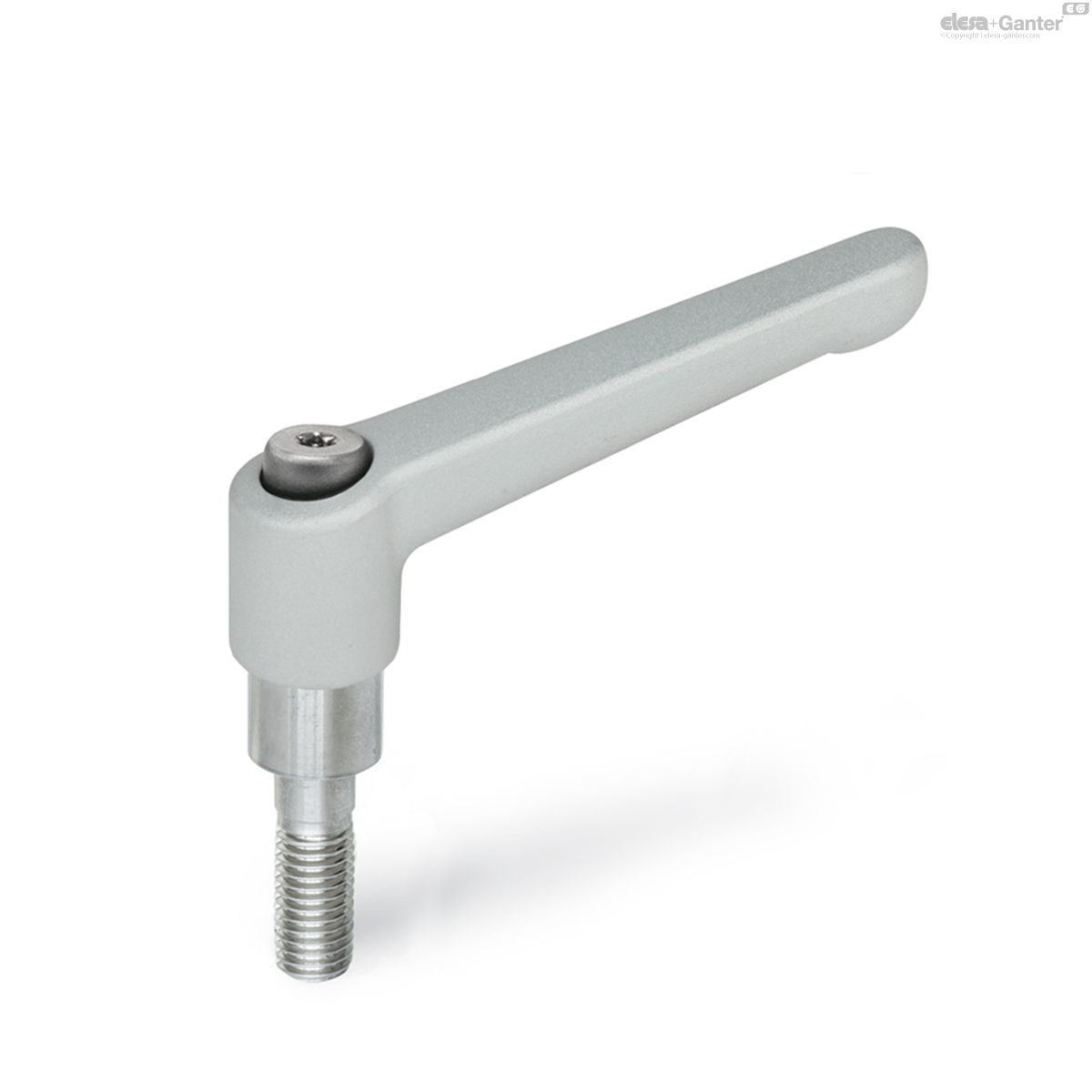

GN 911 Adjustable Hand Levers
for Tube Clamp Connectors / Linear Actuator Connectors
Eta: 1-2 weeks All sizes and variants of GN 911
🔒 Prices, live stock & CAD downloads
Sign in to see your prices and stock, download CAD files and order directly online.
Sign in Request an account
Technical datasheet
Technical data
- Catalogue
- GN 911-63-M8-35-SR
- l1
- 63
- d1
- M 8
- l2
- 35
- d2
- 13
- h1
- 12.5
- h2 ≈
- 42
- 97
Handle
Zinc die casting
Powder coated
Silver, RAL 9006, textured finish SR
Threaded insert and retaining screw
Stainless steel AISI 303
Adjustable hand levers GN 911 replace the socket cap screws DIN 912 of the tube clamp connectors and linear actuator connectors.
The table of dimensions of the tube clamp connectors and linear actuator connectors shows the matching hand lever for each screw location.
