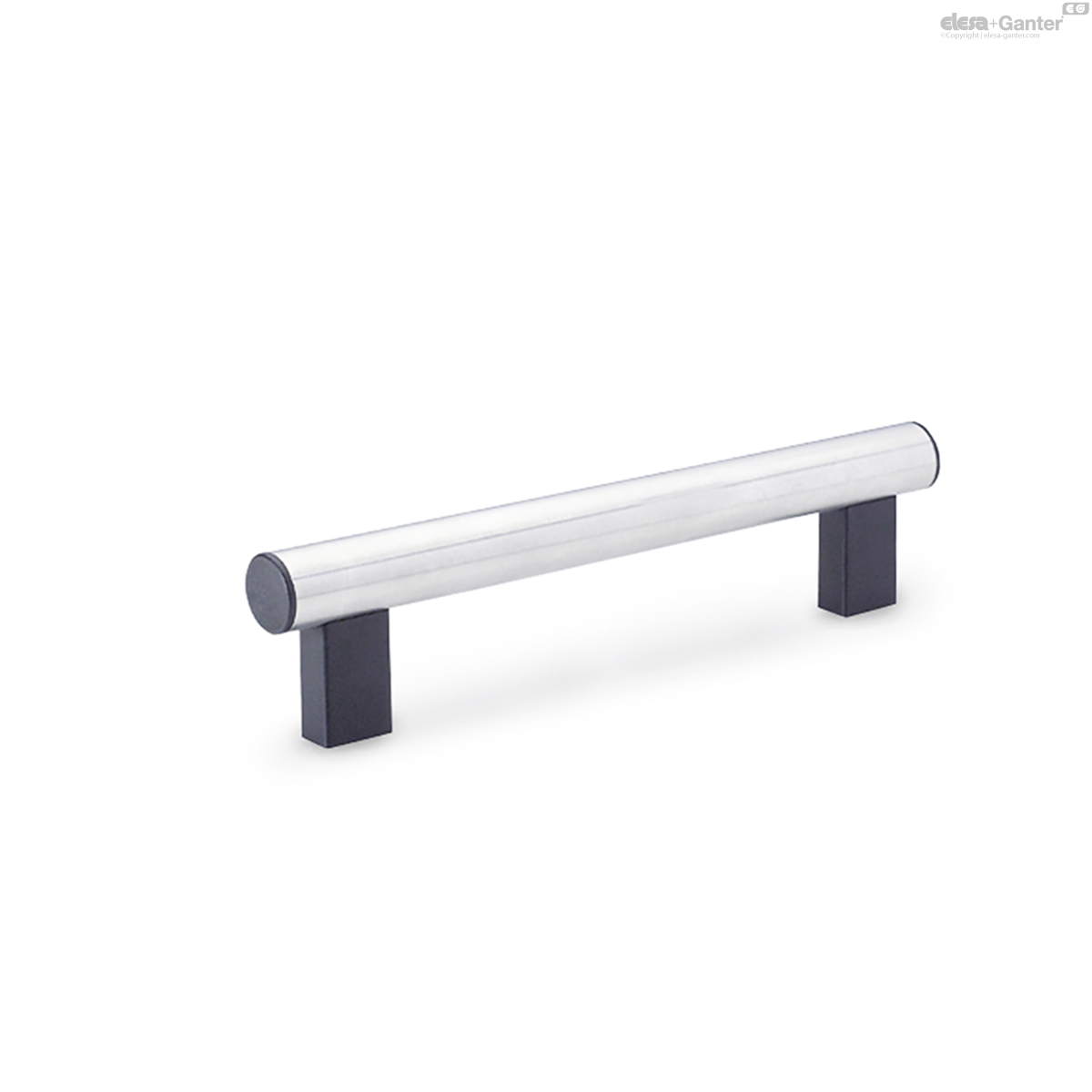

666-30-M6-250-NG
GN 666-NG Stainless steel
Tube Aluminum / Stainless Steel, Handle Legs Plastic
Eta: 1-2 weeks All sizes and variants of GN 666
🔒 Prices, live stock & CAD downloads
Sign in to see your prices and stock, download CAD files and order directly online.
Sign in Request an account
Technical datasheet
Technical data
- Catalogue
- GN 666-30-M6-250-NG
- d1
- 30
- d2
- M 6
- l1 ±0.5
- 250
- b
- 18
- h
- 60
- l2
- 280
- l3
- 220
- l4
- 315
- t min.
- 12
- 437
Handle tube
Handle tube
Wall thickness 1,5 mm
- Aluminum
- Powder coated
- Black, RAL 9005, textured finish SW
- Handle legs / Covers, black, matte finish
- Anodized, natural color EL
- Handle legs / Covers, black, matte finish
- Anodized, natural color ELG
- Handle legs / Covers, light gray, matte finish
- Stainless steel AISI 304
- Ground, matte shiny finish NG
- Handle legs / Covers, black, matte finish
Handle legs
Handle legs
Plastic, Polyamide (PA)
- Glass fiber reinforced
- Operating temperature up to 100 °C
- Threaded bushing steel, zinc plated
Covers
Covers
Plastic, thermoplastic elastomer (TPE)
Owing to their large range of variants and their classic design, tubular handles GN 666 are the perfect choice for many applications.
With the modular structure, special lengths are avaiable even in comparatively small unit quantities. Large handle lengths can be supported by additional handle legs.
