6319.1-21-ST GN 6319.1 Spherical washers

6319.1-21-ST

GN 6319.1 Spherical washers

Steel / Stainless Steel, combined
  • Icons/__logo__INOX__.png
  • Icons/__logo__RoHS__.png

Eta: 1-2 weeks All sizes and variants of GN 6319.1

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 6319.1-21-ST
d1
21
d2
10.5
d3
12
h
10.5
For screw
M 10
Static load F
in kN
26
18

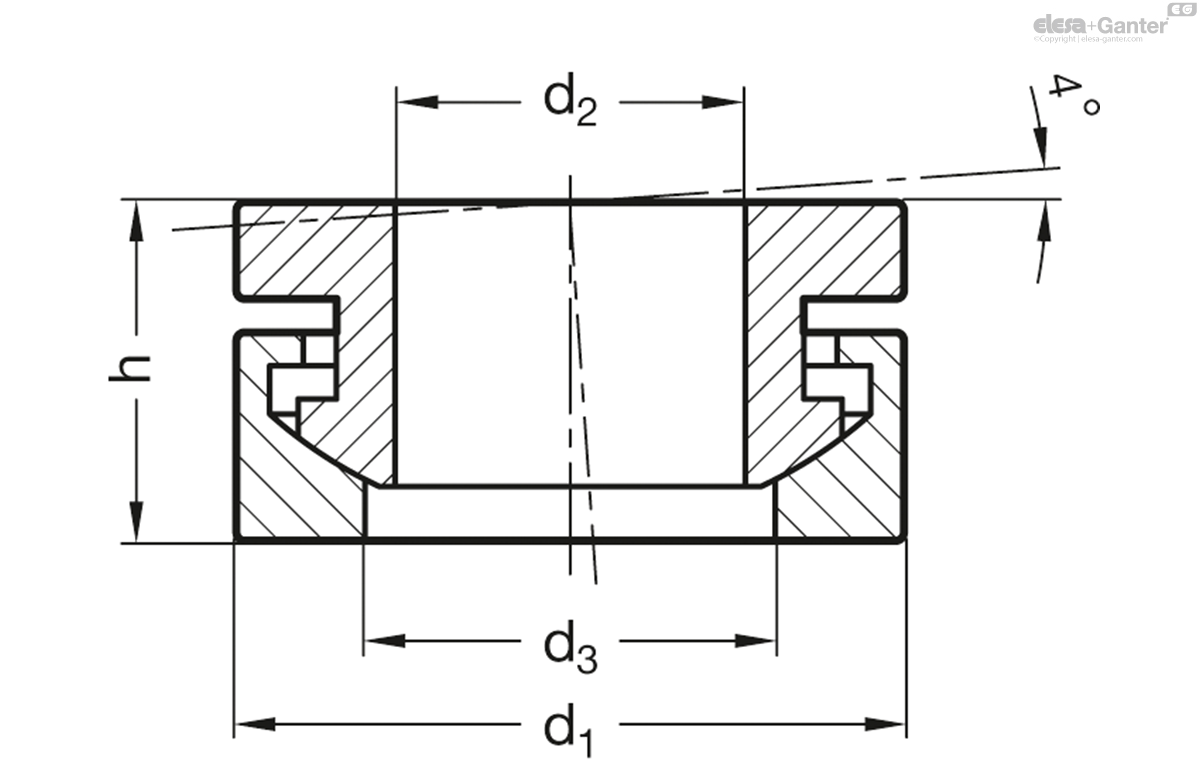

6319.1-21-ST drawing

Version in Steel

Steel ST

Case hardening steel

case hardened

all round depth 0.2 to 0.4 mm

hardness (550 + 100) HV 10

Version in Stainless Steel

Stainless Steel AISI 303 NI

Spherical washers combinations GN 6319.1 provide an 'undetachable' connection for male and female spherical washers DIN 6319 .

They simply storage and allow fast and efficient installation.
