6303-M5-B-NI DIN 6303-NI Stainless Steel

6303-M5-B-NI

DIN 6303-NI Stainless Steel

Steel / Stainless Steel
  • Icons/__logo__INOX__.png
  • Icons/__logo__RoHS__.png

Eta: 1-2 weeks All sizes and variants of DIN 6303

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
DIN 6303-M5-B-NI
d1
M5
d3
14
d4
20
d5 H11
1.5
e
2.5
h
12
k
8
l
7
15

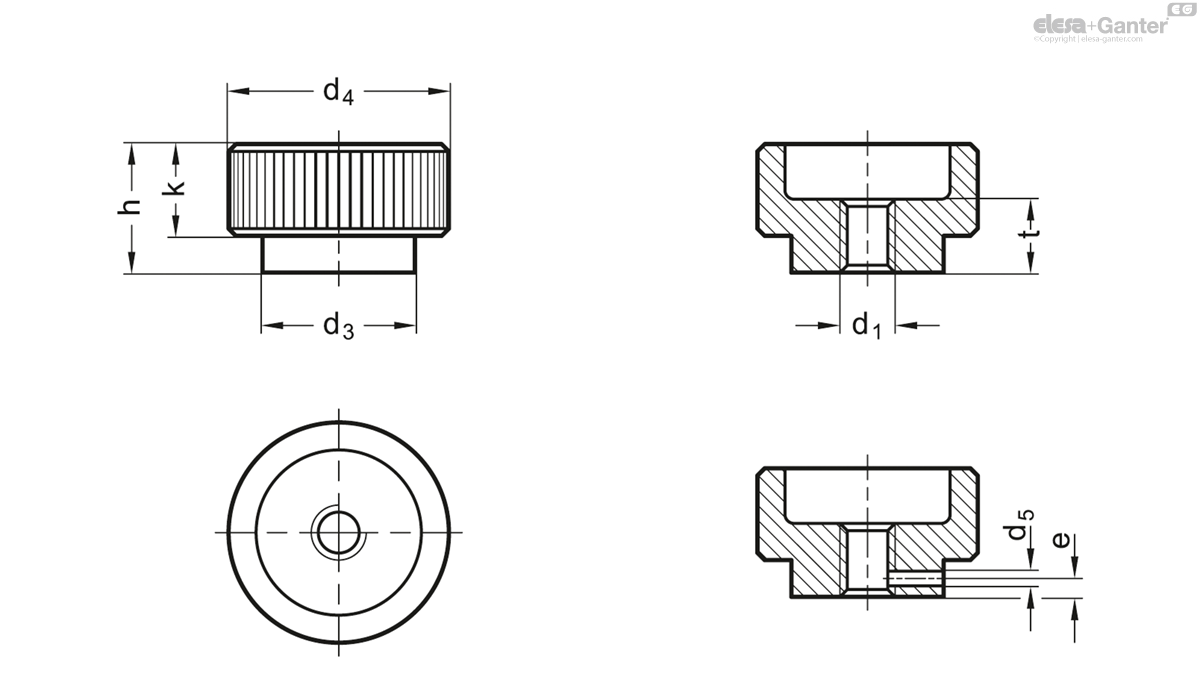

6303-M5-B-NI drawing

Types

  • Type A: without dowel hole
  • Type B: with dowel hole

Version in Steel

  • Tensile strength class 5
  • blackened

Version in Stainless Steel AISI 303 NI

matte shot-blasted

The dowel bore d5 in the knurled nut DIN 6303 is designed for the use of clamping or notch pins.

Knurled nuts DIN 6303 with H7 bore and the size M12 are not provided on the official standard sheet. In addition, the knurling divisions are larger than the DIN standard for better grip.
