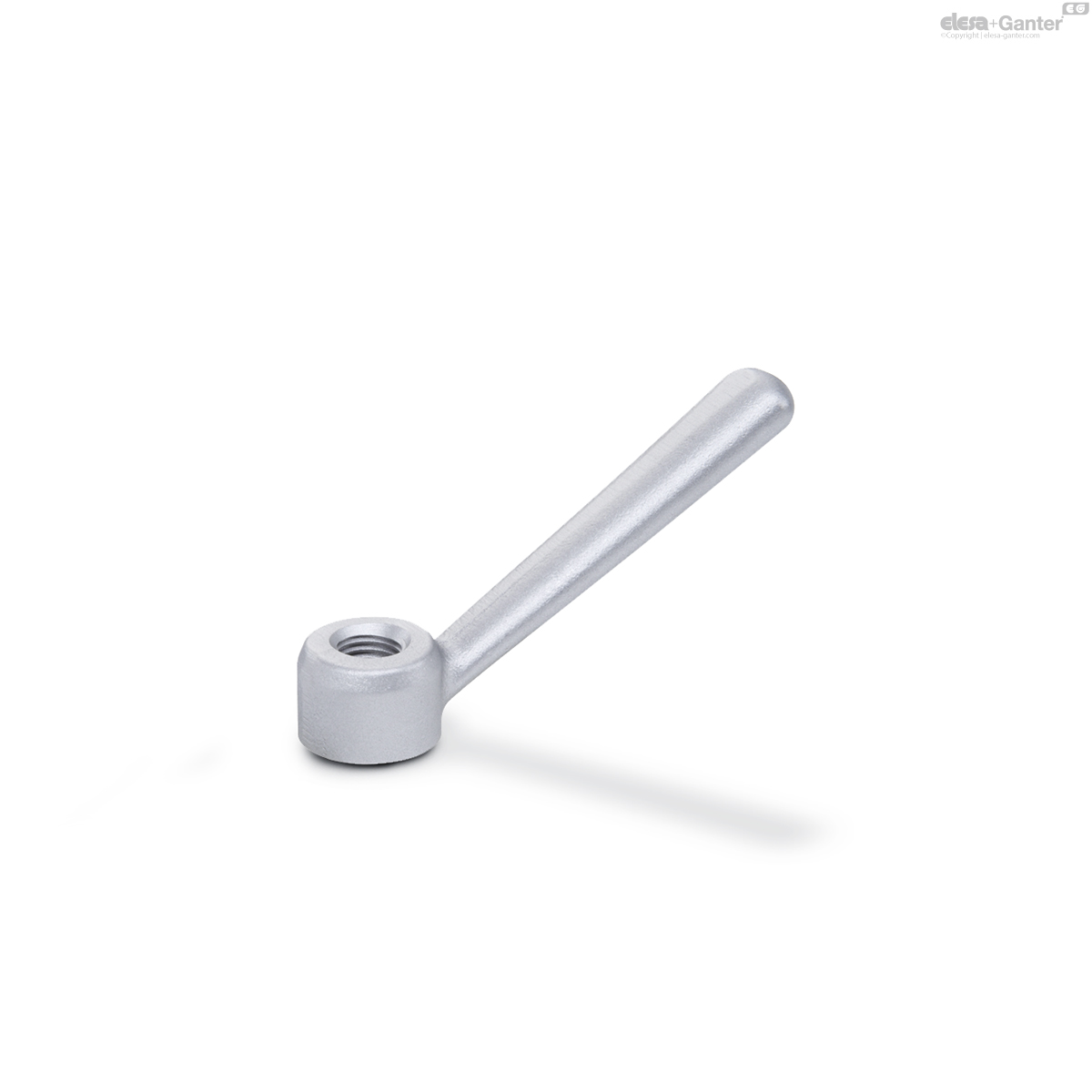

206-32-M16-NI GN 206-NI Stainless Steel

206-32-M16-NI

GN 206-NI Stainless Steel

Steel / Stainless Steel
  • Icons/__logo__INOX__.png
  • Icons/__logo__RoHS__.png

Eta: 1-2 weeks All sizes and variants of GN 206

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 206-32-M16-NI
d1
32
d2
M 16
a
15
b
22
h1
22
h2 ≈
66
l ≈
109
248
206-32-M16-NI drawing

Cast iron

  • Fettled
  • Contact faces machined

Stainless steel precision casting AISI CF-8 NI

  • Fettled
  • Contact face machined
  • Clamp nuts GN 206, powder coated
