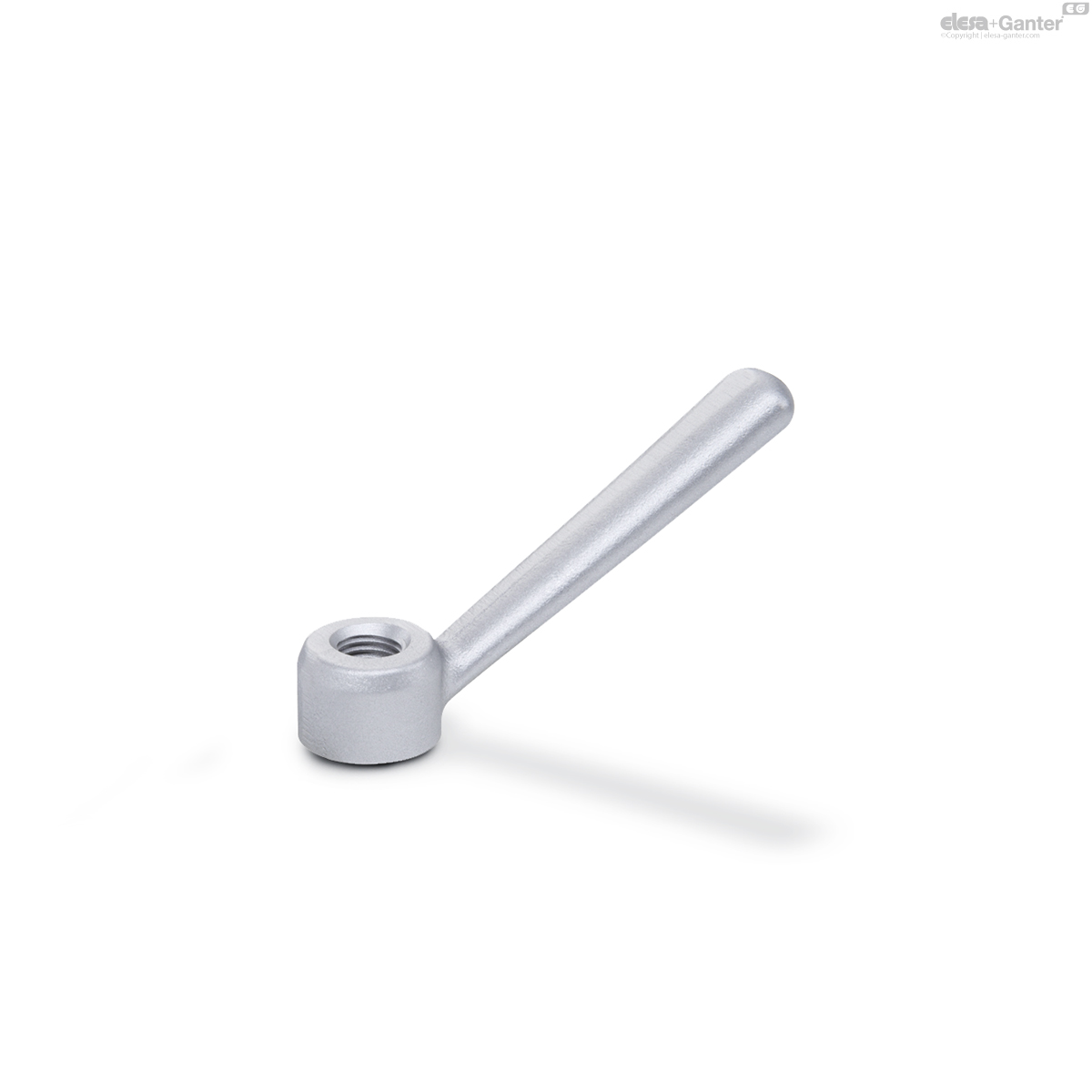

206-20-M10-NI GN 206-NI Stainless Steel

206-20-M10-NI

GN 206-NI Stainless Steel

Steel / Stainless Steel
  • Icons/__logo__INOX__.png
  • Icons/__logo__RoHS__.png

Eta: 1-2 weeks All sizes and variants of GN 206

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 206-20-M10-NI
d1
20
d2
M 10
a
9
b
14
h1
14
h2 ≈
44
l ≈
70
63

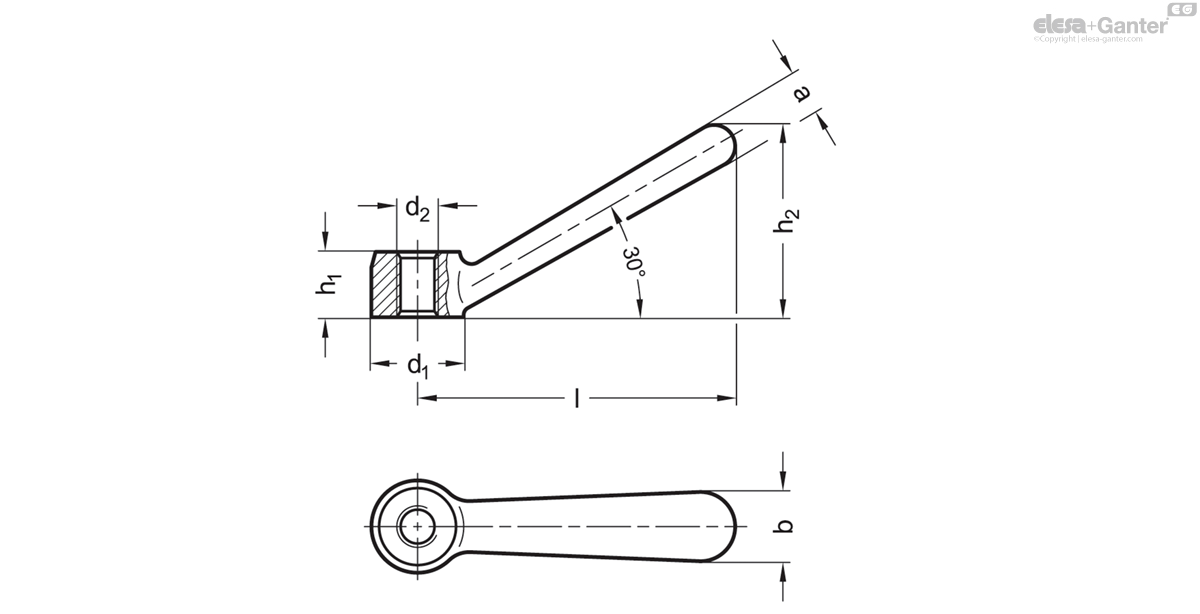

206-20-M10-NI drawing

Cast iron

  • Fettled
  • Contact faces machined

Stainless steel precision casting AISI CF-8 NI

  • Fettled
  • Contact face machined
  • Clamp nuts GN 206, powder coated
