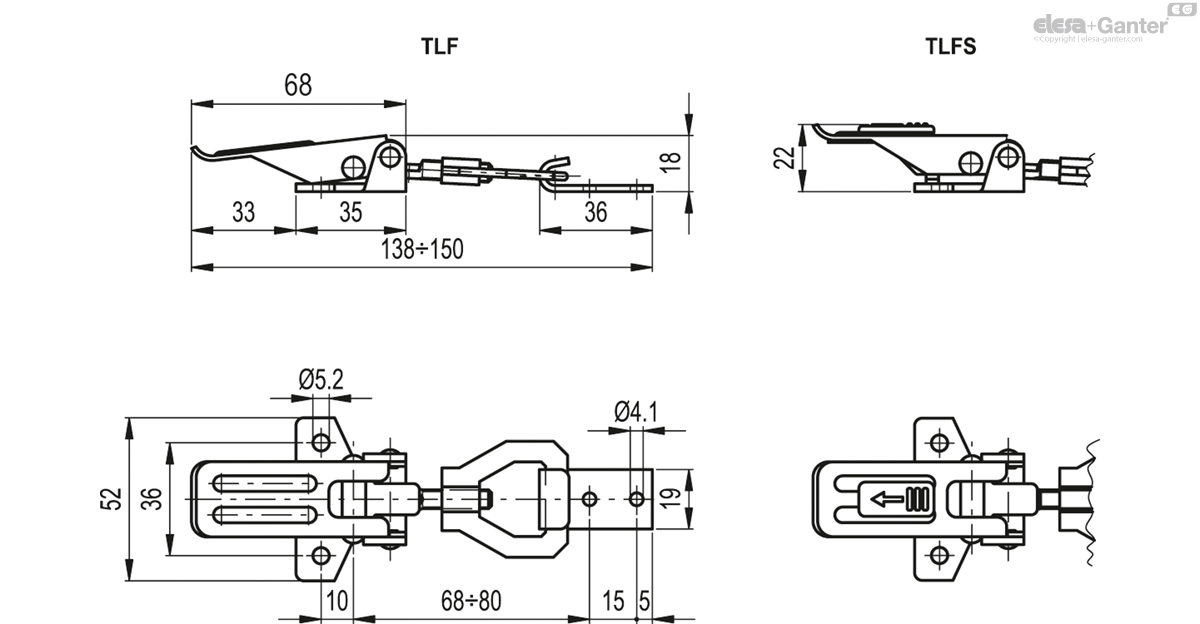

TLFS.NH-24/138-150+R
TLF. Adjustable hook clamps
Steel or stainless steel
In stock All sizes and variants of TLF.
🔒 Prices, live stock & CAD downloads
Sign in to see your prices and stock, download CAD files and order directly online.
Sign in Request an account
Technical datasheet
Technical data
- Catalogue
- 420103
- Max. working load
[N] - 1100

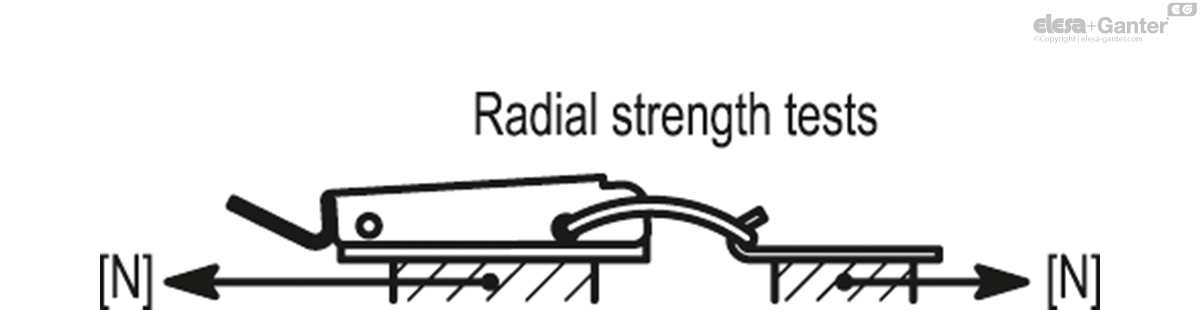

- Load at breakage
[N] - 2500
- 105
Standard executions
- TLF: basic hook clamps.
- TLFS: hook clamps with security stop. RAL 3000 red technopolymer push button.
Indexes for materials and treatments to add to the above-mentioned standard executions:
- Z: zinc-plated steel.
- SST: AISI 304 stainless steel.
- NH: nickel-plated steel.
Special executions on request
- Hook clamps in unplated steel.
- Catch brackets in different shapes and finishes.
