723.4-34-B6-N GN 723.4-N Neutral

723.4-34-B6-N

GN 723.4-N Neutral

Aluminum
  • Icons/__logo__INOX__.png
  • Icons/__logo__RoHS__.png

Eta: 1-2 weeks All sizes and variants of GN 723.4

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 723.4-34-B6-N
d1
34
d2 H8
B 6
d3 -0.2
41
d4
29.5
d5
M 5
l1
29.5
l2
9.5
l3
13.5
l4
13
t1 min.
26.5
t2
9.5
66

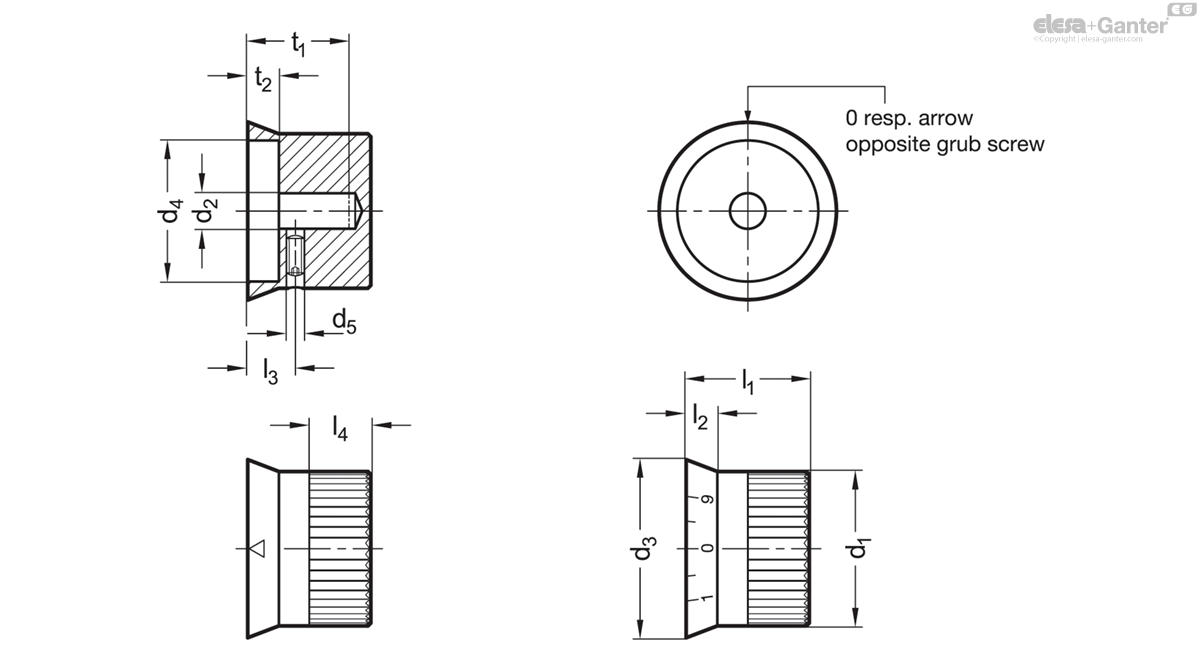

723.4-34-B6-N drawing

Types

  • Type N: Neutral
  • Type M: With arrow
  • Type S: With scale 0...9, 20 graduations

Knob

Aluminum

  • Anodized, natural color
  • Arrow for type M
  • Laser-engraved
  • Scale for type S
  • Laser-engraved

Grub screw DIN 916

Stainless steel

with internal hex and serrated point

Control knobs GN 723.4 can be combined with reference flanges GN 723.3 which offer the following advantages:

- they are provided with a reference mark relating to the scale on the control knobs

- they give additional support to the control shaft

- the version with a friction ring prevents unexpected movement through vibration.

Scale and arrow on the control knobs are indelibly marked and easily legible. Besides the standard scale (type S) they can be supplied with any type of graduation.

Regarding design, numbering run, numbering position and numbering sequence of the scale please see the layout for scale knobs on the order sheet 'How to Order Graduations' .

  • GN 723.3 Reference Flanges
  • GN 826 Clamping Elements (for Adjustable Spindles)
  • Special graduations (see „How to Order Graduations“)
