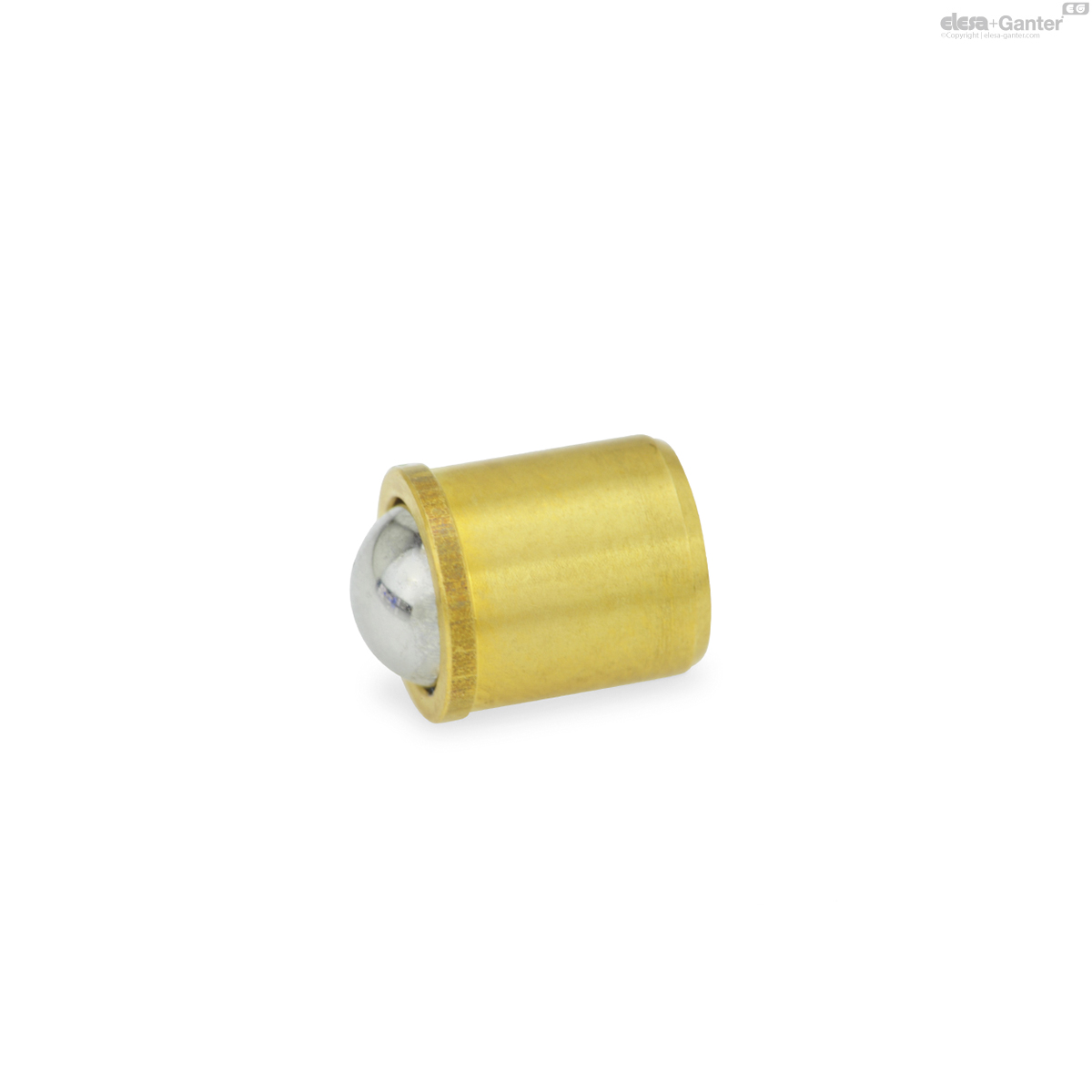

614-3-MS GN 614-MS Housing brass, ball stainless steel, standard spring load

614-3-MS

GN 614-MS Housing brass, ball stainless steel, standard spring load

Housing Stainless Steel / Brass / Plastic, Ball Stainless Steel / Plastic, Press-On Type
  • Icons/__logo__INOX__.png
  • Icons/__logo__RoHS__.png

Eta: 1-2 weeks All sizes and variants of GN 614

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 614-3-MS
d1 +0.1
3
d2
2.4
d3
3.6
l1 ≈
4
l2 ±0.1
0.6
w
0.6
Spring load
in N≈ initial
1.8
Spring load
in N≈ end
3.5
1

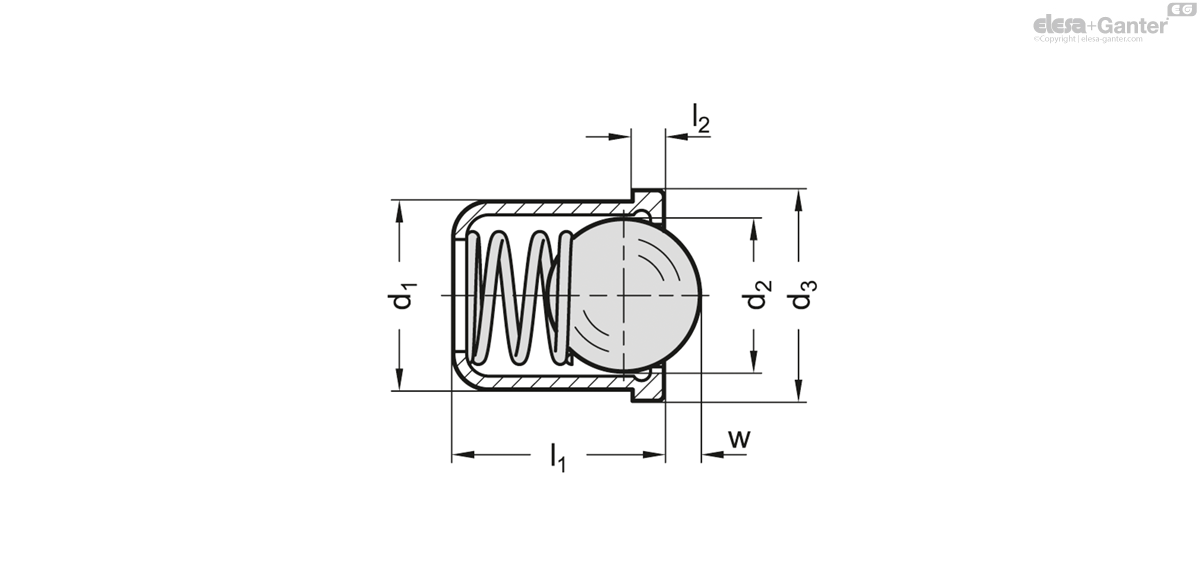

614-3-MS drawing
Types
  • Type NI: Stainless steel, standard spring load
  • Type NIL: Stainless steel, light spring load
  • Type NIS: Stainless steel, high spring load
  • Type MS: Housing brass, ball stainless steel, standard spring load
  • Type KU: Housing plastic, ball stainless steel, standard spring load
  • Type KD: Housing plastic, ball plastic, standard spring load

Types NI / NIL / NIS

  • Housing
  • Stainless steel AISI 305
  • Sheet-metal
  • Ball
  • Stainless steel AISI 420C
  • Hardened

Identification

  • Type NIL: Housing with 1 longitudinal marking
  • Type NIS: Housing with 2 longitudinal markings

Type MS

  • Housing
  • Brass, turned
  • Ball
  • Stainless steel AISI 420C, hardened

Type KU

  • Housing
  • Plastic, polyacetal (POM)
  • Operating temperature up to 50 °C
  • Blue
  • Ball
  • Stainless steel AISI 420C, hardened

Type KD

  • Housing
  • Plastic, polyacetal (POM)
  • Operating temperature up to 50 °C
  • Blue
  • Ball
  • Plastic, polyacetal (POM)
  • Operating temperature up to 50 °C
  • White

Pressure spring

Stainless steel AISI 631

Spring plungers GN 614 are used as detents as well as for push-on and push-off applications and ejectors.

A tolerance of H7 for the location hole of d1 is recommended.
