412.2-M12X1,5-B4,2 GN 412.2 Positioning bushings

412.2-M12X1,5-B4,2

GN 412.2 Positioning bushings

for indexing plungers / cam action indexing plungers
  • Icons/__logo__RoHS__.png

Eta: 1-2 weeks All sizes and variants of GN 412.2

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 412.2-M12x1,5-B4,2
d1
M 12 x 1.5
d2 +0.1
B 4.1
d3 -0.05
12
l1 -0.2
10
l2
13
A/F
13
10

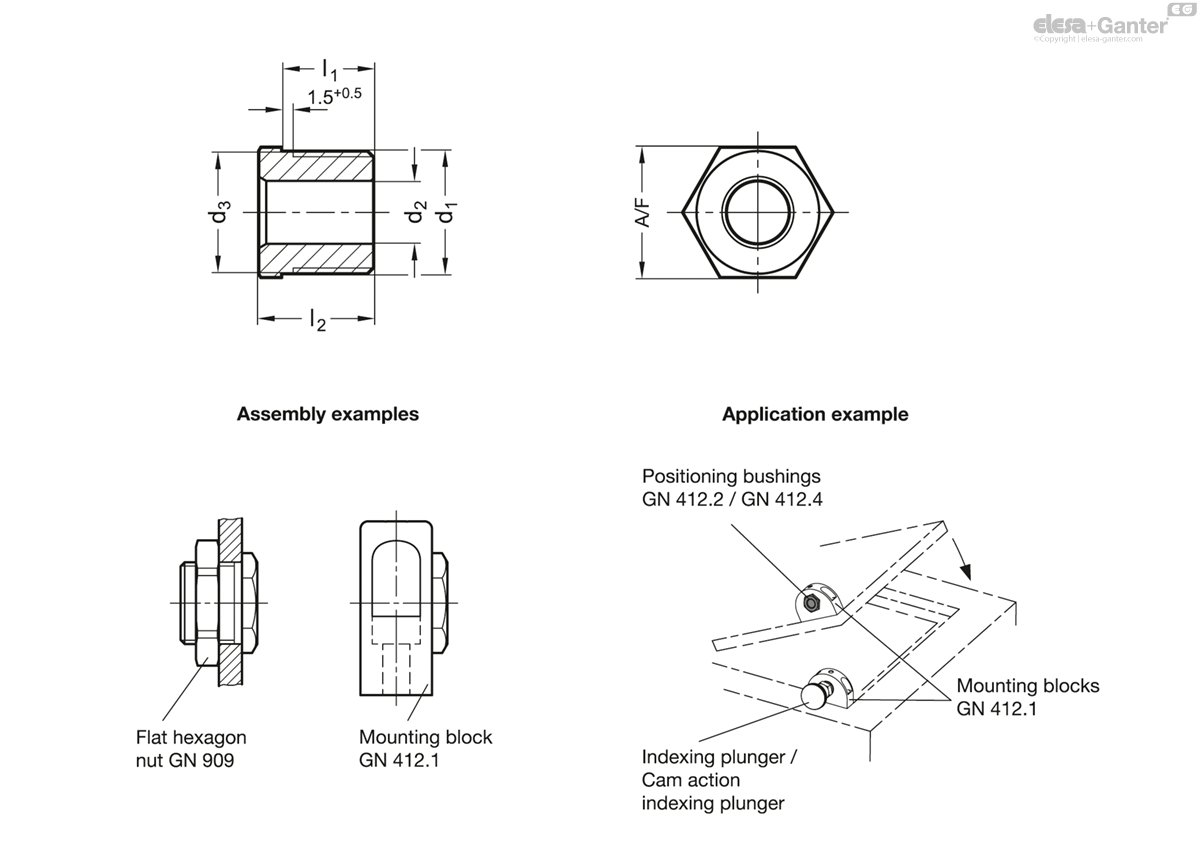

412.2-M12X1,5-B4,2 drawing

Steel

  • hardened
  • blackened

Positioning bushings GN 412.2 are used in connection with bolts of indxing plungers and cam action indexing plungers.

The threads are adapted to the mounting blocks GN 412.1 and GN 612.1.
