343.6-60-M24-138-OS

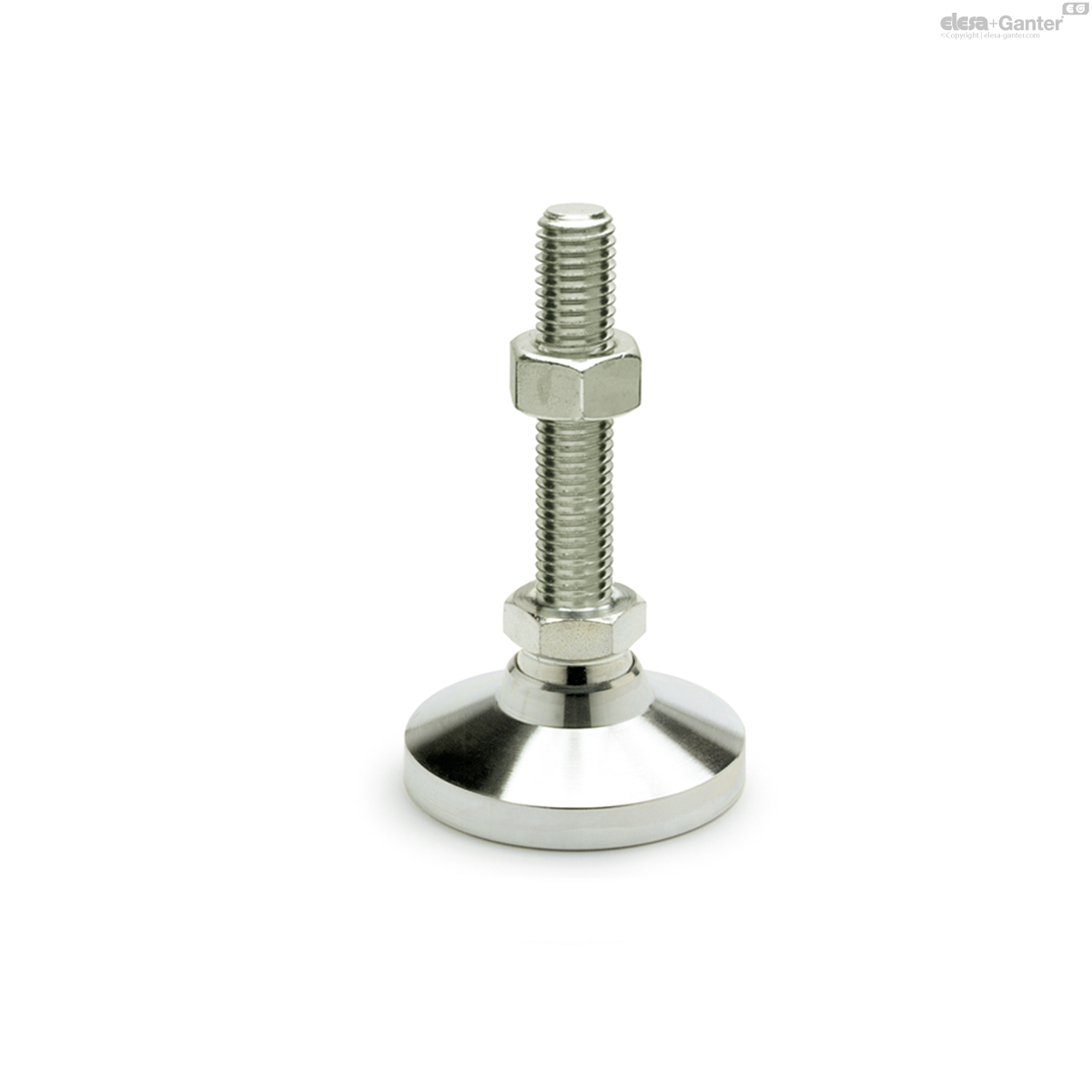

GN 343.6 Stainless Steel-Levelling feet
Eta: 1-2 weeks All sizes and variants of GN 343.6
🔒 Prices, live stock & CAD downloads
Sign in to see your prices and stock, download CAD files and order directly online.
Sign in Request an account
Technical datasheet
Technical data
- Catalogue
- GN 343.6-60-M24-138-OS
- d1
- 60
- d2
- M 24
- l1
- 138
- l2
- 36
- l4
- 8.5
- A/F
- 24
- Static load
in kN - 45
- 860
Types
- Type OS: without plastic cap
- Type KS: with plastic cap, gliding
- Type KR: with plastic cap, non-gliding
- Type KSE: with plastic cap, gliding, electrically conductive (antistatic)
- Type KRE: with plastic cap, non-gliding, electrically conductive (antistatic)
Stainless Steel AISI 303
Type KS / KSE
Plastic cap Polyacetal (POM)
KS: white (natural colour) RAL 9001
KSE: black, electrically conductive
Surface resistivity: < 106 Ω
Volume resistivity: < 107 Ω
DIN EN 61340-5-1 / 61340-2-3
Type KR / KRE
Plastic cap Elastomer (TPE), 78 Shore A ≈
KR: black
KRE: black, electrically conductive
Surface resistivity: < 106 Ω
Volume resistivity: < 107 Ω
DIN EN 61340-5-1 / 61340-2-3
Hexagon nut ISO 4032
Stainless Steel AISI 304
The static load of the Stainless Steel-Levelling feet GN GN 343.6 is limited by the load capacity of the ball joint / threaded stud (AISI 303).
The static load values (only valid for Type OS, KS and KSE) in the above table refer to a net vertical load in relation to the levelling foot. Under normal operating conditions side loading or angular loading is not uncommon and the load capacity would be considerably reduced which must be taken into consideration.
Stainless Steel-Levelling feet GN 343.6 cannot be disassembled.
