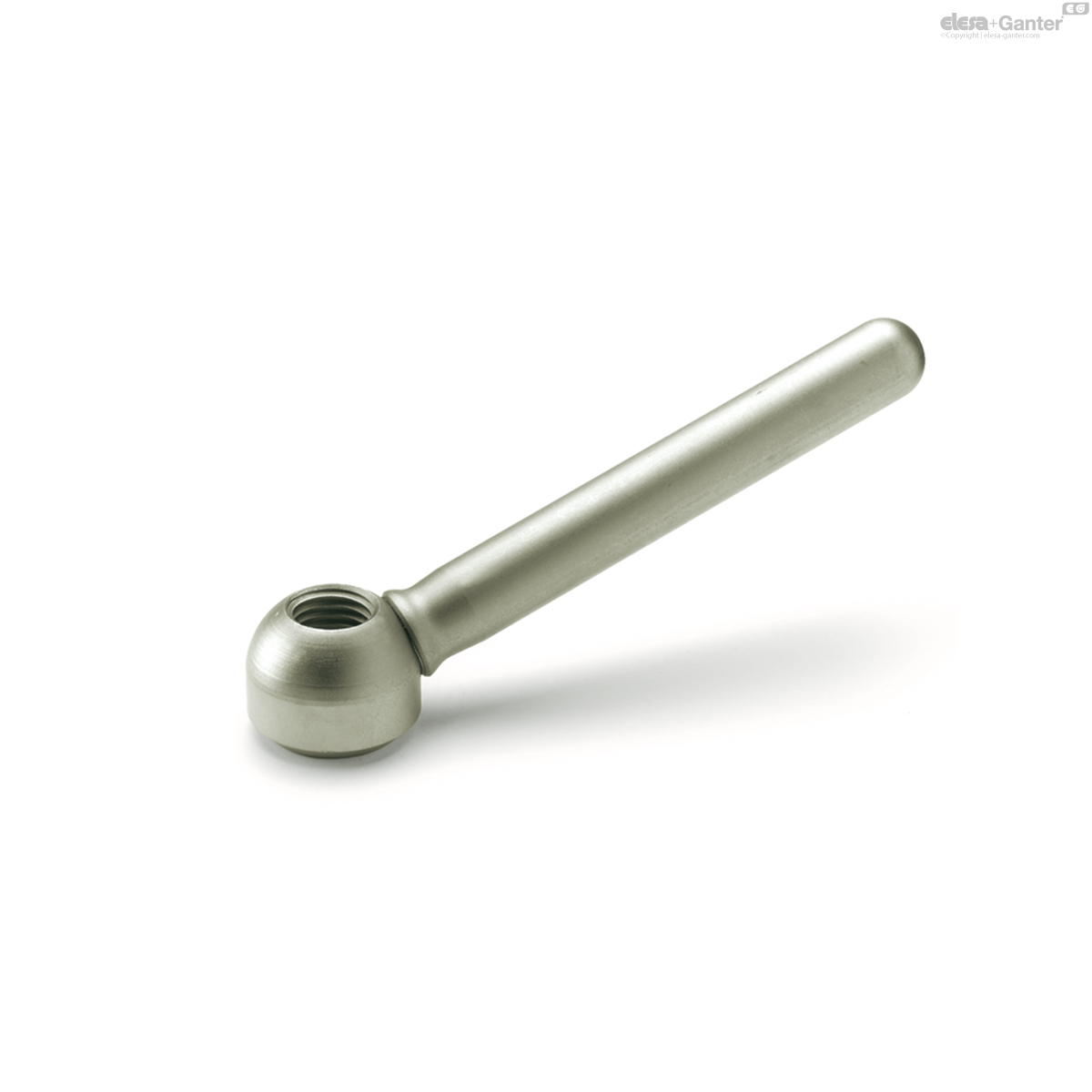

99.6-125-M16 GN 99.6 Clamp Nuts

99.6-125-M16

GN 99.6 Clamp Nuts

Material AISI 316L
  • Icons/__logo__INOX__.png
  • Icons/__logo__RoHS__.png

Eta: 1-2 weeks All sizes and variants of GN 99.6

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 99.6-125-M16
l1
125
d1
M 16
d2
32
d3
18
h1
25
h2 ≈
58.5
l2 ≈
119
309
99.6-125-M16 drawing

Stainless Steel

  • AISI 304
  • AISI 316L A4
  • matt shot-blasted

Shaft butt-welded to nut
